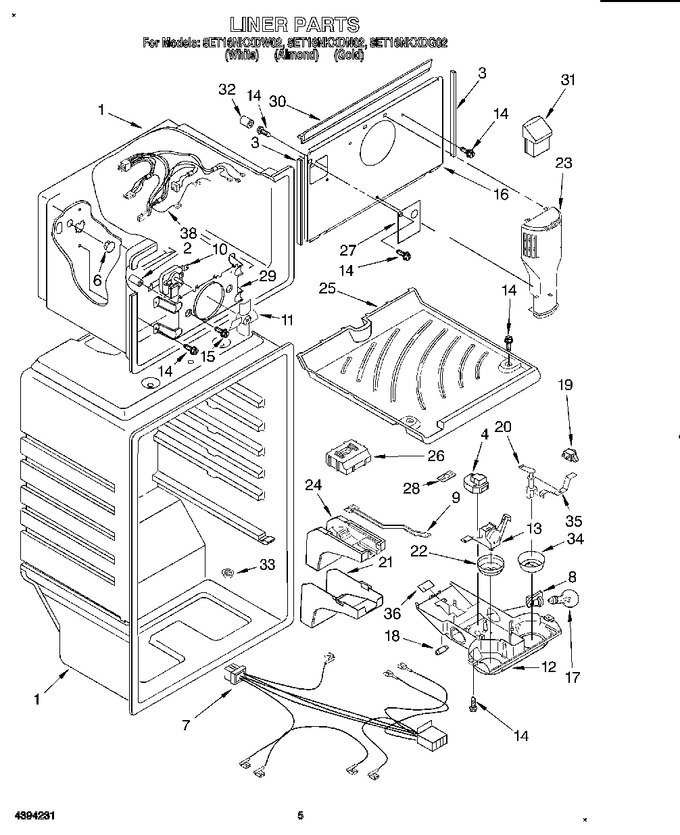

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2166180) |
|
$ 26.78 | |||||
| 4 | WP2183400 | Timer, Defrost (Replaces: 2183400) |
|
Immediately | $ 86.97 | ||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 7 | 2172542 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | 2176298 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2179790 | Control Box |
|
- | |||||
| 13 | 4387562 | Thermostat (Replaces: 2176345) |
|
Immediately | $ 317.27 | ||||
| 14 | WP489442 | Screw (Replaces: 489438) |
|
Immediately | $ 10.94 | ||||
| 15 | 489412 | Screw |
|
- | |||||
| 16 | 2183151 | Cover-evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (2) (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 18 | 2163802 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2176296 | Control Knob |
|
- | |||||
| 23 | 2182339 | Air Tower |
|
- | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2176280) |
|
Immediately | $ 124.79 | ||||
| 25 | 2172565 | Freezer Floor |
|
- | |||||
| 26 | 2179877 | Air Diffuser, Top |
|
- | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2183038) |
|
$ 44.97 | |||||
| 28 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 29 | 2163827 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2166192 | Gasket, Evaporator Cover (top) |
|
- | |||||
| 31 | 2174629 | Air Return & Foil Assembly |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.26 | |||||
| 33 | 2171846 | Valve, Release |
|
$ 18.99 | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2172532) |
|
$ 9.53 | |||||
| 38 | 2174610 | Wire Assy, F.c. |
|
- |
