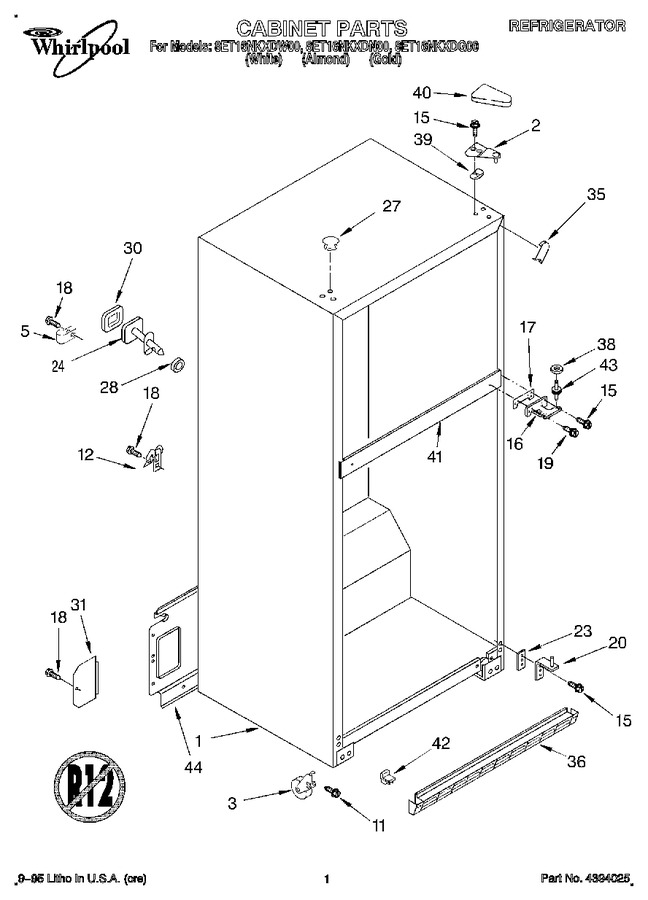

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2189412		Hinge, Top   (Replaces: 2157591)				$ 114.50
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
11	2174650		Screw		Appelez-nous	-
12	549193		Clamp-cord				$ 13.39
15	489459		Screw		Appelez-nous	-
16	WP2254618		Hinge, Center   (Replaces: 2183064)			Immediately	$ 87.64
17	2163757		Shim, Hinge Center		Appelez-nous	-
18	WP489463		Screw   (Replaces: 489463)				$ 7.82
19	489426		Screw		Appelez-nous	-
20	2179829		Hinge, Butt		Appelez-nous	-
23	2172745		Shim, Bottom Hinge		Appelez-nous	-
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
27	2151653		Hole Plug (6) (almond)		Appelez-nous	-
27	2151654		Hole Plug (6) (gold)		Appelez-nous	-
27	WP2151652		Hole Plug (6) (white)   (Replaces: 2151652)				$ 21.78
28	N/A		Seal, Front (not Serviced)		Appelez-nous	-
30	N/A		Seal, Rear (not Serviced)		Appelez-nous	-
31	2166251		Cover, Water Valve				$ 6.43
35	WPW10283959		Corner Filler (2) (white)   (Replaces: 2163733)				$ 7.82
35	2166188		Corner Filler (2) (gold)		Appelez-nous	-
35	2166187		Corner Filler (2) (almond)		Appelez-nous	-
36	2182429		Grille (white)		Appelez-nous	-
36	2182431		Grille (black)		Appelez-nous	-
36	2182430		Grille (almond)		Appelez-nous	-
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
39	1123517		Shim		Appelez-nous	-
40	WP2213360		Cover-hinge (white)   (Replaces: 2160403)				$ 19.23
40	2160404		Cover, Hinge (almond)		Appelez-nous	-
40	WP2213360		Cover-hinge (gold)   (Replaces: 2160405)				$ 19.23
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
42	2166205		Corner Filler, Grille (black)		Appelez-nous	-
42	2166156		Corner Filler, Grille (white)		Appelez-nous	-
42	2166204		Corner Filler, Grille (almond)		Appelez-nous	-
43	WP2254618		Pin, Hinge   (Replaces: 2183063)			Immediately	$ 87.64
44	2183158		Cover, Unit		Appelez-nous	-
