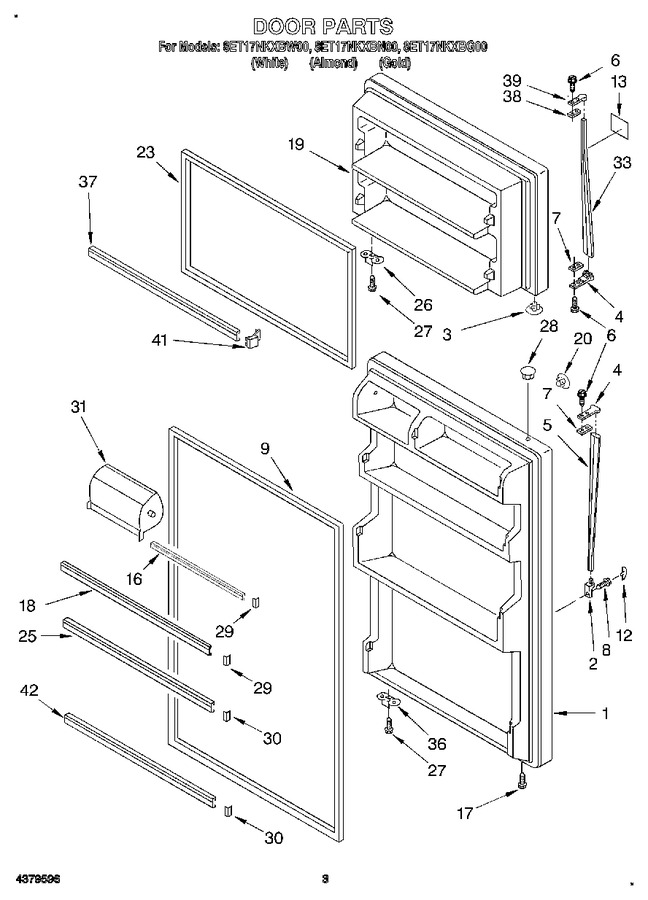

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (white)		Appelez-nous	-
1	2166866		Refrigerator Door (gold)		Appelez-nous	-
1	2171270		Refrigerator Door (almond)		Appelez-nous	-
2	819342		End Cap (almond)   (Replaces: 9791774)			Immediately	$ 47.96
2	819342		End Cap (white)   (Replaces: 9791773)			Immediately	$ 47.96
2	819342		End Cap (black)   (Replaces: 1110056)			Immediately	$ 47.96
3	989879		Hole Plug (2) (gold)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
4	819342		End Cap, Handle (2) (black)   (Replaces: 1108952)			Immediately	$ 47.96
4	819342		End Cap, Handle (2) (white)   (Replaces: 9791771)			Immediately	$ 47.96
4	819342		End Cap, Handle (2) (almond)   (Replaces: 9791772)			Immediately	$ 47.96
5	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 150.11
5	2148036		Handle, Center (almond)		Appelez-nous	-
5	1109166		Handle, Center (black)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2159057		Door Gasket, Magnetic (service) (chocolate)   (Replaces: 2159051)			Immediately	$ 164.66
9	2159057		Door Gasket, Magnetic (service) (mist Begie)			Immediately	$ 164.66
12	9791769		Cover, Screw (white)				$ 5.70
12	WP1101634		Cover, Screw (gold)   (Replaces: 1110059)				$ 9.22
12	9791770		Cover, Screw (almond)		Appelez-nous	-
13	2165148		Nameplate (white Model)		Appelez-nous	-
13	2165147		Nameplate (almond And Gold Models)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	WP2201061		Trim, Door   (Replaces: 2171142)				$ 118.40
19	2159447		Freezer Door (almond)		Appelez-nous	-
19	2159446		Freezer Door (white)		Appelez-nous	-
19	2166782		Freezer Door (gold)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.40
20	1122694		Hole Plug (gold)		Appelez-nous	-
20	1122654		Hole Plug (almond)		Appelez-nous	-
23	2159050		Door Gasket, Magnetic (service) (chocolate)		Appelez-nous	-
23	2159056		Door Gasket, Magnetic (service) (mist Begie)		Appelez-nous	-
25	2171140		Trim, Door Shelf		Appelez-nous	-
26	2159367		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
28	WP2212648		Hole Plug (gold)   (Replaces: 989893)			Immediately	$ 7.80
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218113		Door, Compartment   (Replaces: 2170950)			Immediately	$ 50.33
33	2159471		Handle, F.c. (almond)		Appelez-nous	-
33	2159424		Handle, F.c. (black)		Appelez-nous	-
33	2159453		Handle, F.c. (white)		Appelez-nous	-
36	2159368		Bracket, Door Stop (white And Almond Models)		Appelez-nous	-
36	2159364		Bracket, Door Stop (gold Model)		Appelez-nous	-
37	WP2201061		Trim-door (2)   (Replaces: 2171144)				$ 118.40
38	943187		Shim				$ 25.14
39	819342		Handle End (almond)   (Replaces: 9791777)			Immediately	$ 47.96
39	1108955		Handle End (black)		Appelez-nous	-
39	819342		Handle End (white)   (Replaces: 9791776)			Immediately	$ 47.96
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 12.62
42	2171141		Trim, Door		Appelez-nous	-
