SELECT A DIAGRAM

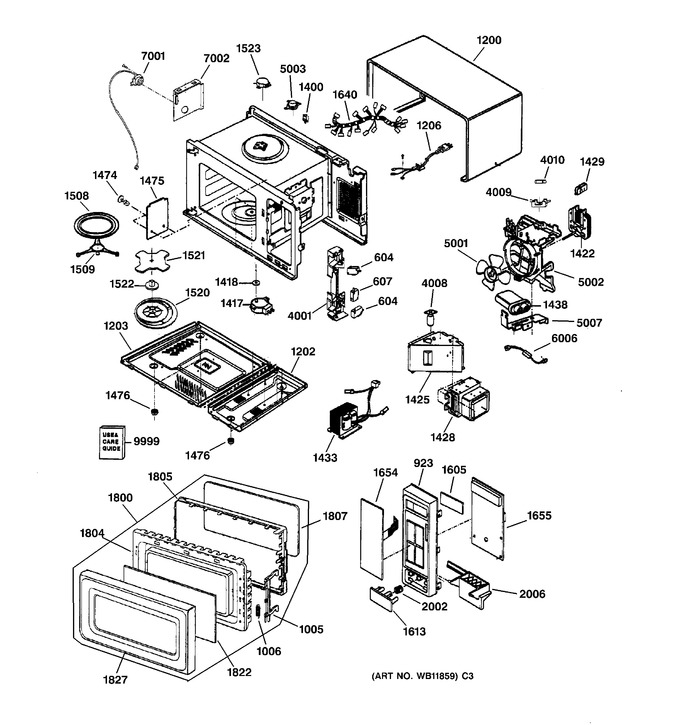

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 604 | WB24X815 | Switch,micro |
|
- | |||||
| 607 | WB24X817 | Switch,micro |
|
- | |||||
| 923 | WB07X10340 | Control Panel |
|
- | |||||
| 1005 | WB06X10030 | Latch,all |
|
- | |||||
| 1006 | WB09X10003 | Spring,all |
|
- | |||||
| 1200 | WB56X10124 | Out Case,u-bending |
|
- | |||||
| 1202 | WB56X10126 | Base Plate,mwo |
|
- | |||||
| 1203 | WB56X10125 | Base Plate,mwo |
|
- | |||||
| 1206 | WB18X10087 | Power Cord Assy |
|
- | |||||
| 1400 | WB02X10532 | Holder,wire |
|
- | |||||
| 1417 | WB26X10056 | Motor(circ),synchronous |
|
- | |||||
| 1418 | WB06X10204 | Seal,water |
|
- | |||||
| 1422 | WB26X10055 | Motor(circ),fan |
|
- | |||||
| 1425 | WB06X10208 | Air Duct,mwo |
|
- | |||||
| 1428 | WB27X10309 | Magnetron |
|
- | |||||
| 1429 | WB06X10206 | Insulator |
|
- | |||||
| 1433 | WB27X10304 | Transformer,high Voltage |
|
- | |||||
| 1438 | WB27X10308 | Capacitor,[high Voltage] |
|
- | |||||
| 1474 | WB01X10055 | Rivet Assy,all |
|
- | |||||
| 1475 | WB06X10162 | Canopy,mica |
|
- | |||||
| 1476 | WB02X10611 | Cap,mwo |
|
- | |||||
| 1508 | WB49X10048 | Tray,glass |
|
- | |||||
| 1509 | WB06X10209 | Rotating Ring Assy,mwo |
|
$ 12.08 | |||||
| 1520 | WB63X10018 | Cover,stirrer Fan |
|
- | |||||
| 1521 | WB06X10210 | Stirrer Fan |
|
- | |||||
| 1522 | WB02X10610 | Holder,stirrer Fan |
|
- | |||||
| 1523 | WB26X10057 | Motor(circ),synchronous |
|
- | |||||
| 1605 | WB36X10004 | Cover,digitron |
|
- | |||||
| 1613 | WB03X10086 | Button |
|
- | |||||
| 1640 | WB18X10088 | Lead Wire Assy |
|
- | |||||
| 1654 | WB27X10314 | Key Membrane |
|
- | |||||
| 1655 | WB27X10312 | Pwb(pcb) Assy,sub |
|
- | |||||
| 1800 | WB55X10277 | Door Assy,gross |
|
- | |||||
| 1804 | WB55X10267 | Door Frame Assy |
|
- | |||||
| 1805 | WB55X10270 | Choke Cover,all |
|
- | |||||
| 1807 | WB55X10269 | Seal Tape |
|
- | |||||
| 1822 | WB55X10276 | Front Screen |
|
- | |||||
| 1827 | WB55X10278 | Panel Door |
|
- | |||||
| 2002 | WB09X10002 | Spring,all |
|
- | |||||
| 2006 | WB06X10020 | Lever,release |
|
- | |||||
| 4001 | WB06X10033 | Board,latch |
|
- | |||||
| 4008 | WB36X10005 | Lamp[oven/baseless] |
|
- | |||||
| 4009 | WB06X10205 | Fuse Holder |
|
- | |||||
| 4010 | WB27X10114 | Fuse |
|
- | |||||
| 5001 | WB38X10024 | Fan |
|
- | |||||
| 5002 | WB38X10025 | Guide,suction |
|
- | |||||
| 5003 | WB24X10014 | Thermostat,bimetal |
|
- | |||||
| 5007 | WB06X10214 | Bracket,hvc |
|
- | |||||
| 6006 | WB18X10286 | Cable Assy,diode (Replaces: WB27X10037) |
|
- | |||||
| 7001 | WB24X10044 | Sensor Assy |
|
- | |||||
| 7002 | WB06X10207 | Guide,sensor |
|
- | |||||
| 9999 | 31-20934 | Mini Manual |
|
- | |||||
| 9999 | 49-40089 | Manual Use And Care |
|
- |
