SELECT A DIAGRAM

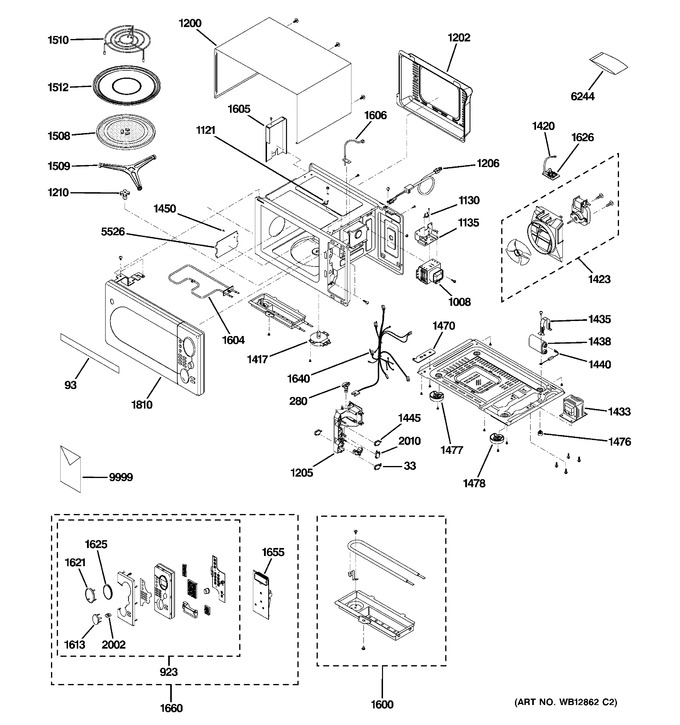

1 - Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WB24X10103 | Micro Switch-substitute |
|
- | |||||
| 93 | 49-40327 | Cooking Guide Sheet |
|
- | |||||
| 280 | WB36X951 | Lamp (120v, 25w) |
|
- | |||||
| 923 | WB07X10739 | Control-panel Sub Asm |
|
- | |||||
| 1008 | WB27X10579 | Magnetron |
|
- | |||||
| 1121 | WB27X10568 | Thermostat Cavity |
|
- | |||||
| 1130 | WB27X10567 | Thermostat Magnetron |
|
- | |||||
| 1135 | WB06X10536 | Supporter Magnetron |
|
- | |||||
| 1200 | WB56X10464 | Cabinet |
|
- | |||||
| 1202 | WB56X10463 | Plate Mounting Asm |
|
- | |||||
| 1205 | WB06X10538 | Lock |
|
- | |||||
| 1206 | WB18X10219 | Cord Power Asm |
|
- | |||||
| 1210 | WB06X10548 | Coupler |
|
- | |||||
| 1417 | WB26X10142 | Motor Syncro |
|
- | |||||
| 1420 | WB27X10741 | Line Filter |
|
- | |||||
| 1423 | WB38X10079 | Guide Wind Sub Asm |
|
- | |||||
| 1433 | WB27X10742 | Trans Hv |
|
- | |||||
| 1435 | WB06X10407 | Holder Hv Capacitor |
|
- | |||||
| 1438 | WB27X10743 | Capacitor Hv |
|
- | |||||
| 1440 | WB27X10744 | Diode Hv |
|
- | |||||
| 1445 | WB24X823 | Switch-primary&secondary |
|
- | |||||
| 1450 | WB02X10997 | Button Locking |
|
- | |||||
| 1470 | WB14X209 | Hinge Lower |
|
- | |||||
| 1476 | WB06X10540 | Foot |
|
- | |||||
| 1477 | WB06X10532 | Foot Left |
|
- | |||||
| 1478 | WB06X10533 | Foot Right |
|
- | |||||
| 1508 | WB49X10121 | Tray |
|
- | |||||
| 1509 | WB02X10994 | Guide Roller Asm |
|
- | |||||
| 1510 | WB48X10039 | Tray Rack Asm |
|
- | |||||
| 1512 | WB49X10120 | Tray Metal |
|
- | |||||
| 1600 | WB30X10020 | Heater Asm |
|
- | |||||
| 1604 | WB30X10021 | Heater *t |
|
- | |||||
| 1605 | WB06X10535 | Guide Air Outlet |
|
- | |||||
| 1606 | WB27X10738 | Sensor Temperature |
|
- | |||||
| 1613 | WB03X10202 | Button Door Open |
|
- | |||||
| 1621 | WB02X10992 | Ring Display |
|
- | |||||
| 1625 | WB36X10275 | Window Display |
|
- | |||||
| 1626 | WB27X10740 | Fuse |
|
$ 11.91 | |||||
| 1640 | WB18X10237 | Harness Main |
|
- | |||||
| 1655 | WB27X10745 | Smart Board |
|
- | |||||
| 1660 | WB07X10738 | Control Panel Asm |
|
- | |||||
| 1810 | WB56X10465 | Door Asm |
|
- | |||||
| 2002 | 441G430171 | Button Spring |
|
- | |||||
| 2010 | WB24X824 | Switch-interlock |
|
- | |||||
| 5526 | WB06X10541 | Cover Wave Guide |
|
- | |||||
| 6244 | WB01X10249 | Bag Screw Asm |
|
- | |||||
| 9999 | 31-40502 | Mini-manual |
|
- | |||||
| 9999 | 49-40326 | Use & Care |
|
- |
