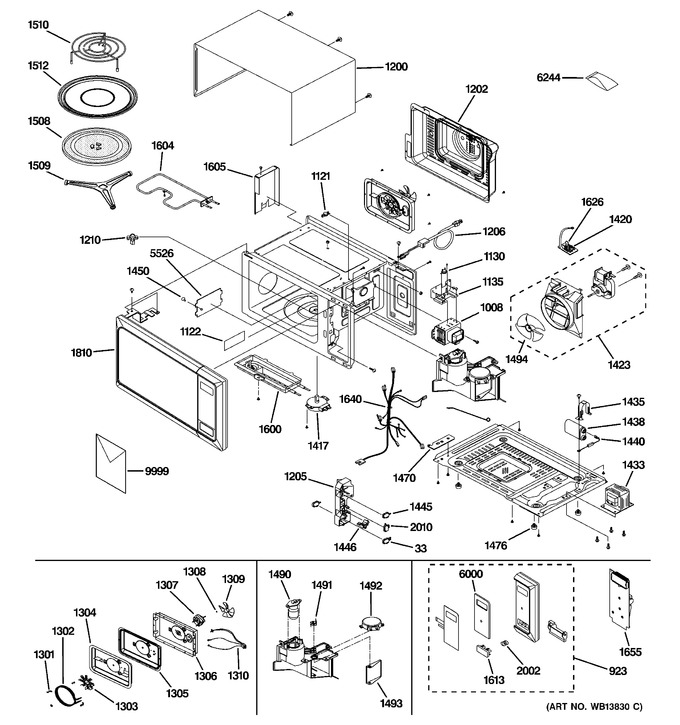

SELECT A DIAGRAM
1 - Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WB24X10103 | Micro Switch-substitute |
|
- | |||||
| 923 | WB07X10983 | Control Panel Sub Asm |
|
- | |||||
| 1008 | WB27X10579 | Magnetron |
|
- | |||||
| 1121 | WB27X10821 | Thermostat Cavity |
|
- | |||||
| 1122 | WB02X11127 | Cover Lamp |
|
- | |||||
| 1130 | WB27X10567 | Thermostat Magnetron |
|
- | |||||
| 1135 | WB06X10536 | Supporter Magnetron |
|
- | |||||
| 1200 | WB56X10685 | Cabinet |
|
- | |||||
| 1202 | WB56X10600 | Cover Asm |
|
- | |||||
| 1205 | WB06X10593 | Lock |
|
- | |||||
| 1206 | WB18X10219 | Cord Power Asm |
|
- | |||||
| 1210 | WB06X10548 | Coupler |
|
- | |||||
| 1301 | WB02X11128 | Holder Heater |
|
- | |||||
| 1302 | WB30X10024 | Heater |
|
- | |||||
| 1303 | WB26X10160 | Fan Convection |
|
- | |||||
| 1304 | WB63X10051 | Heater Reflector |
|
- | |||||
| 1305 | WB06X10590 | Cover Heater |
|
- | |||||
| 1306 | WB06X10592 | Insulator Heater |
|
- | |||||
| 1307 | WB26X10162 | Motor Shaded Pole |
|
- | |||||
| 1308 | WB01X10285 | Ring C |
|
- | |||||
| 1309 | WB26X10161 | Fan |
|
- | |||||
| 1310 | WB18X10261 | Harness Convection Asm |
|
- | |||||
| 1417 | WB26X10142 | Motor Syncro |
|
- | |||||
| 1420 | WB27X10741 | Noise Filter |
|
- | |||||
| 1423 | WB38X10079 | Guide Wind Sub Asm |
|
- | |||||
| 1433 | WB27X10742 | Trans Hv |
|
- | |||||
| 1435 | WB06X10407 | Holder Hv Capacitor |
|
- | |||||
| 1438 | WB27X10743 | Capacitor Hv |
|
- | |||||
| 1440 | WB27X10744 | Diode Hv |
|
- | |||||
| 1445 | WB24X823 | Switch-primary&secondary |
|
- | |||||
| 1446 | WB06X10269 | Latch Slider |
|
- | |||||
| 1450 | WB02X10997 | Button Locking |
|
- | |||||
| 1470 | WB14X209 | Hinge Lower |
|
- | |||||
| 1476 | WB06X10540 | Foot |
|
- | |||||
| 1490 | WB36X951 | Lamp (120v, 25w) |
|
- | |||||
| 1491 | WB09X10022 | Spring Terminal |
|
- | |||||
| 1492 | WB26X186 | Motor-turntable |
|
- | |||||
| 1493 | WB06X10589 | Bracket Damper |
|
- | |||||
| 1494 | WB26X190 | Fan Blade |
|
- | |||||
| 1508 | WB49X10174 | Tray Glass |
|
$ 44.36 | |||||
| 1509 | WB02X10994 | Guide Roller Asm |
|
- | |||||
| 1510 | WB48X10039 | Tray Rack Asm |
|
- | |||||
| 1512 | WB49X10175 | Tray Metal |
|
- | |||||
| 1600 | WB30X10023 | Heater Asm |
|
- | |||||
| 1604 | WB30X10021 | Heater |
|
- | |||||
| 1605 | WB06X10535 | Guide Air Outlet |
|
- | |||||
| 1613 | WB03X10284 | Button Door Open |
|
- | |||||
| 1626 | WB27X10740 | Fuse |
|
$ 11.91 | |||||
| 1640 | WB18X10260 | Harness Main |
|
- | |||||
| 1655 | WB27X10906 | Pcb Main Manual Asm |
|
- | |||||
| 1810 | WB56X10686 | Door Asm |
|
- | |||||
| 2002 | WB02X11263 | Button Spring |
|
- | |||||
| 2010 | WB24X824 | Switch-interlock |
|
- | |||||
| 5526 | WB06X10591 | Cover Wave Guide |
|
$ 18.63 | |||||
| 6000 | WB06X10695 | Decorator C-panel |
|
- | |||||
| 6244 | WB01X10316 | Hardware Bag Asm |
|
- | |||||
| 9999 | 31-40503 | Mini Manual |
|
- | |||||
| 9999 | 49-40499 | Use & Care |
|
- |
