SELECT A DIAGRAM
1 - Oven & Cabinet Parts

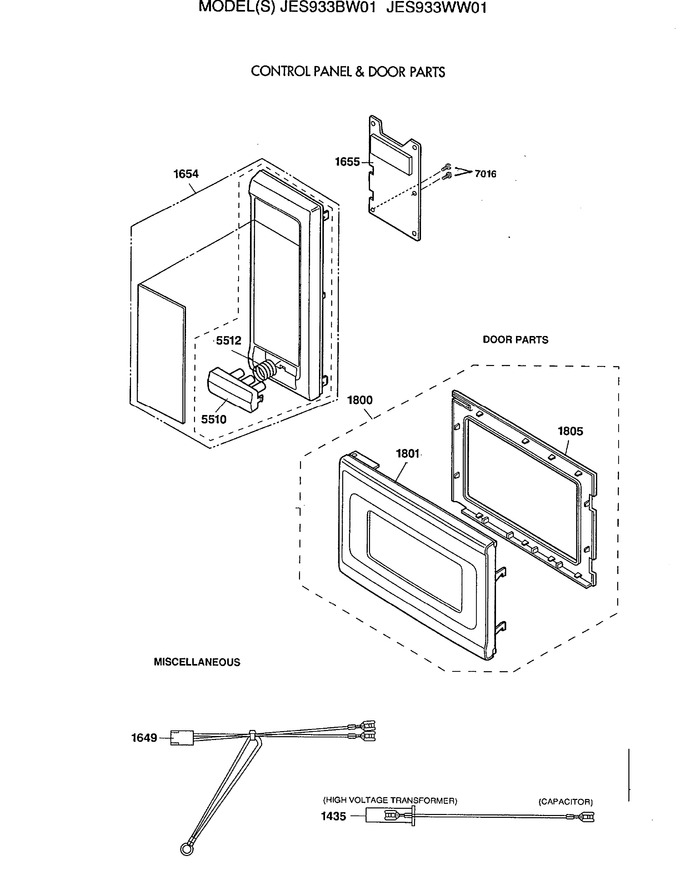

2 - Control Panel & Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1435 | WB18X460 | Wire H V |
|
- | |||||
| 1649 | WB18X480 | Switch Harness |
|
- | |||||
| 1654 | WB27X1061 | Key Panel & Frame Asm |
|
- | |||||
| 1655 | WB27X1073 | Smartboard |
|
- | |||||
| 1800 | WB55X972 | Door Assembly |
|
- | |||||
| 1801 | WB55X973 | Door Panel Assembly |
|
- | |||||
| 1805 | WB55X945 | Inner Door Frame |
|
- | |||||
| 5510 | WB3X873 | Button, Door |
|
- | |||||
| 5512 | WB6X273 | Spring-open Button |
|
- | |||||
| 7016 | WB1X1211 | Screw |
|
- |
