SELECT A DIAGRAM

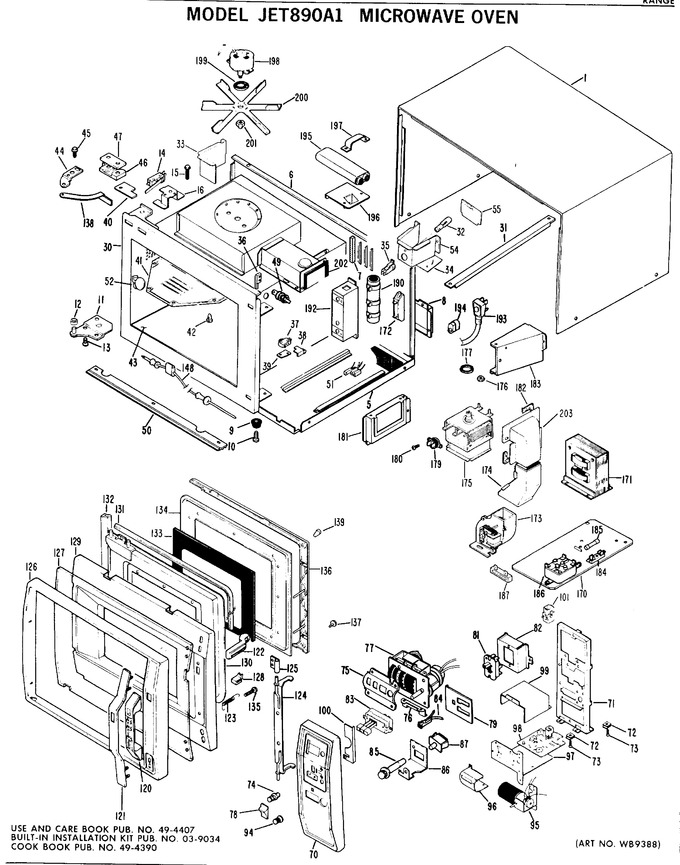

1 - Microwave Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB1X568 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 1 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 1 | WB56X5838 | Case Outer |
|
- | |||||
| 5 | WB49X5151 | Base Assembly |
|
- | |||||
| 6 | WB49X5215 | Back Assembly |
|
- | |||||
| 6 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 6 | WB2X6486 | Pad (cut To Size)mounts |
|
- | |||||
| 7 | WB2X6755 | Gasket (cut To Size) |
|
- | |||||
| 8 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 8 | WB49X5154 | Cover, Intake |
|
- | |||||
| 9 | WB2X6741 | Foot |
|
- | |||||
| 10 | WZ05X0107 | Screw Mtg. Foot |
|
- | |||||
| 11 | WB10X5113 | Bracket, Hinge Lower |
|
- | |||||
| 12 | WB2X6473 | Washer |
|
- | |||||
| 13 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 14 | WB2X5102 | Switch, Door Safety |
|
- | |||||
| 15 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 16 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 16 | WB2X6697 | Bracket, Door Switch |
|
- | |||||
| 31 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 31 | WB49X5153 | Brace Extension |
|
- | |||||
| 32 | WX12X1560 | Lamp (25t8dc) |
|
- | |||||
| 33 | WB2X6853 | Baffle |
|
- | |||||
| 33 | WB2X6857 | Pad |
|
- | |||||
| 34 | WB2X6855 | Shield (film) |
|
- | |||||
| 35 | WB8X5084 | Socket, Lamp |
|
- | |||||
| 36 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 36 | WB10X5121 | Strike Latch |
|
- | |||||
| 37 | WB24X5101 | Switch Latch Upper |
|
- | |||||
| 37 | WZ05X0240 | Screw, Mtg. Switch |
|
- | |||||
| 38 | WB2X6698 | Cover, Switch (2 Each) |
|
- | |||||
| 39 | WB2X6699 | Barrier Switch |
|
- | |||||
| 40 | WB2X6557 | Barrier |
|
- | |||||
| 41 | WB56X5639 | Cover Sitbr |
|
- | |||||
| 42 | WB1X5453 | Fastener |
|
- | |||||
| 43 | WB48X5056 | Shelf Oven |
|
- | |||||
| 44 | WB10X5110 | Hinge Arm |
|
- | |||||
| 45 | WB1X438 | Screw Washer Asm |
|
- | |||||
| 46 | WB10X5116 | Guide Lever |
|
- | |||||
| 47 | WB10X5117 | 862a164p001 |
|
- | |||||
| 47 | WZ05X0137 | Screw 8-32 X 3/4 Dp Hxw |
|
- | |||||
| 48 | WB20X5041 | Probe |
|
- | |||||
| 49 | WB2X2954 | Sleeve |
|
- | |||||
| 49 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 50 | WB7X5641 | Trim Button |
|
- | |||||
| 51 | WB18X5053 | Housing Terminal |
|
- | |||||
| 52 | WB2X6852 | Plug Hole |
|
- | |||||
| 54 | WB2X6854 | Shield, Lamp |
|
- | |||||
| 55 | WB2X6856 | Cover |
|
- | |||||
| 70 | WB36X571 | Control Panel |
|
- | |||||
| 71 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 71 | WB49X379 | Frame, Extension |
|
- | |||||
| 72 | WB1X5476 | Speednut, Mtg. Panel |
|
- | |||||
| 72 | WB1X365 | Speednut |
|
- | |||||
| 73 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 73 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 74 | WB3X5562 | Knob, Timer Set |
|
- | |||||
| 75 | WB2X6510 | Mask, Timer |
|
- | |||||
| 75 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 76 | WB2X6507 | Bracket, Mtg. Timer |
|
- | |||||
| 76 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 77 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 77 | WB27X5052 | Timer |
|
- | |||||
| 78 | WB3X5563 | Knob, Slide Switch |
|
- | |||||
| 79 | WB2X6511 | Slide, Color |
|
- | |||||
| 81 | WB24X5073 | Switch Slide |
|
- | |||||
| 81 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 82 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 82 | WB2X6508 | Bracket, Mtg. Switch |
|
- | |||||
| 83 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 83 | WB24X5118 | Switch, Power Level |
|
- | |||||
| 84 | WB2X6509 | Cover, Light |
|
- | |||||
| 84 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 85 | WB3X5582 | Button, Start |
|
- | |||||
| 86 | WB2X6648 | Bracket, Switch |
|
- | |||||
| 86 | WZ05X0231 | Screw Mtg. Bracket |
|
- | |||||
| 87 | WB24X5083 | Start Switch |
|
- | |||||
| 87 | WB2X3238 | Pad |
|
- | |||||
| 94 | WB3X5564 | Knob, Temp. - Power Cont |
|
- | |||||
| 95 | WB2X6527 | Grommet, Leads |
|
- | |||||
| 95 | WB24X5075 | Drum Asm |
|
- | |||||
| 95 | WB1X443 | Nut |
|
- | |||||
| 95 | WB1X5474 | Speednut, Shafts |
|
- | |||||
| 95 | WB1X5475 | Clip, Drum To Pot. Shaft |
|
- | |||||
| 96 | WB2X6513 | Mask Drum |
|
- | |||||
| 96 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 97 | WB2X6215 | Clamp Harness |
|
- | |||||
| 97 | WZ04X0333 | Screw 8-18x3/8 B Hxw |
|
- | |||||
| 97 | WB2X6748 | Bracket, Mtg. Circuit Bo |
|
- | |||||
| 98 | WB24X5088 | Circuit Board Asm |
|
- | |||||
| 98 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 98 | WB17X158 | Terminal - Edge |
|
- | |||||
| 99 | WB2X6649 | Cover, Circuit Board |
|
- | |||||
| 99 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 100 | WB2X6662 | Cover |
|
- | |||||
| 101 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 120 | WB15X5119 | Handle Door |
|
- | |||||
| 120 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 121 | WB1X5371 | Nut 700626a |
|
- | |||||
| 121 | WB7X5596 | Trim Handle |
|
- | |||||
| 122 | WB3X5566 | Button Latch |
|
- | |||||
| 123 | WB9X5082 | Spring Latch |
|
- | |||||
| 124 | WB10X5112 | Latch Bar As |
|
- | |||||
| 125 | WB10X5111 | Hinge Latch |
|
- | |||||
| 125 | WB2X6580 | Shim |
|
- | |||||
| 125 | WB1X5111 | Hinge Latch |
|
- | |||||
| 126 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 126 | WB7X5597 | Trim Door |
|
- | |||||
| 127 | WB36X5311 | Window, Outer |
|
- | |||||
| 128 | WB1X5479 | Clip, Window |
|
- | |||||
| 129 | WB56X5666 | Panel, Door |
|
- | |||||
| 130 | WB55X5227 | Linr Choke A |
|
- | |||||
| 131 | WB2X6700 | Gasket Door Outer |
|
- | |||||
| 132 | WB2X6476 | Gasket - Small |
|
- | |||||
| 133 | WB36X5415 | Crystal Innr |
|
- | |||||
| 133 | WB2X6474 | Pad. Window (4 Ea)(cut T |
|
- | |||||
| 134 | WB1X5518 | Scr 8-16 Ab Plt 11/64 S |
|
- | |||||
| 134 | WB55X5232 | Choke Cover |
|
- | |||||
| 136 | WB7X5643 | Trim Filler, Inner Door |
|
- | |||||
| 137 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 138 | WB10X5122 | Lever Door |
|
- | |||||
| 139 | WB2X6909 | Bumper |
|
- | |||||
| 170 | WB2X6743 | Plate Component |
|
- | |||||
| 170 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 171 | WB2X6494 | Barrier |
|
- | |||||
| 171 | WZ07X0037 | Nut 1/4-20 M Hx Sz |
|
- | |||||
| 171 | WB27X5096 | Transformer, Hi-voltage |
|
- | |||||
| 171 | WB2X6613 | Bracket Transformer |
|
- | |||||
| 171 | WB1X453 | Screw & Washer |
|
- | |||||
| 172 | WB2X6524 | Sleeve |
|
- | |||||
| 172 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 172 | WB2X6651 | Speednut |
|
- | |||||
| 172 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 173 | WB2X6524 | Sleeve |
|
- | |||||
| 173 | WB1X453 | Screw & Washer |
|
- | |||||
| 173 | WB2X3191 | Gasket |
|
- | |||||
| 173 | WB2X5784 | Hanger, Tls |
|
- | |||||
| 173 | WB26X5037 | Motor Blower Assm |
|
- | |||||
| 174 | WB2X6824 | Duct Blower Front |
|
- | |||||
| 175 | WB18X5048 | Hi Voltage Wire |
|
- | |||||
| 175 | WB2X6450 | Sleeve |
|
- | |||||
| 175 | WB27X5144 | Magnetron |
|
- | |||||
| 176 | WB1X5171 | Nut Mtg. Magnetron |
|
- | |||||
| 177 | WB2X6046 | Rf Gasket |
|
- | |||||
| 179 | WB27X5117 | Thermostat Fixed Temp |
|
- | |||||
| 180 | WB1X5347 | Screw, Mt. Thermostat |
|
- | |||||
| 181 | WB2X6756 | Duct Front |
|
- | |||||
| 182 | WB2X6755 | Gasket (cut To Size) |
|
- | |||||
| 183 | WB2X6757 | Duct, Rear |
|
- | |||||
| 184 | WB2X6494 | Barrier |
|
- | |||||
| 184 | WB27X91 | Block, Fuse |
|
- | |||||
| 185 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 186 | WB27X5056 | Relay |
|
- | |||||
| 186 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 187 | WB2X6694 | Sleeve |
|
- | |||||
| 187 | WB27X5147 | Resistor |
|
- | |||||
| 188 | WB2X6435 | Pad |
|
- | |||||
| 188 | WB2X6742 | Buzzer |
|
- | |||||
| 188 | WZ02X0520 | Scr 10-32 T Hxw 3/8 S |
|
- | |||||
| 188 | WB1X390 | Lockwasher Mtg. Buzzer |
|
- | |||||
| 188 | WB2X2006 | Clamp Harness |
|
- | |||||
| 188 | WZ07X0030 | Nut |
|
- | |||||
| 190 | WB27X5094 | Resistor |
|
- | |||||
| 192 | WB2X6746 | Bracket Assembly, Resist |
|
- | |||||
| 192 | WB1X458 | Screw, Mtg. Bracket |
|
- | |||||
| 193 | WB18X5036 | Cord Power Supply |
|
- | |||||
| 194 | WB2X6571 | Strain Relief |
|
- | |||||
| 195 | WB27X5120 | Capacitor |
|
- | |||||
| 196 | WB2X6758 | Bracket, Capacitor |
|
- | |||||
| 197 | WB2X6393 | Strap, Capacitor |
|
- | |||||
| 197 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 198 | WB26X5039 | Motor, Stirrer |
|
- | |||||
| 198 | WB1X458 | Screw, Mtg. Bracket |
|
- | |||||
| 199 | WB2X6480 | Gasket |
|
- | |||||
| 200 | WB2X6479 | Stirrer, Mode |
|
- | |||||
| 201 | WB1X5450 | Nut, Cap Mt. Stirrer |
|
- | |||||
| 201 | WB1X406 | Washer Mtg. Stirrer |
|
- | |||||
| 202 | WB2X6491 | Gasket (cut To Size) |
|
- | |||||
| 203 | WB2X6825 | Duct Blower |
|
- |
