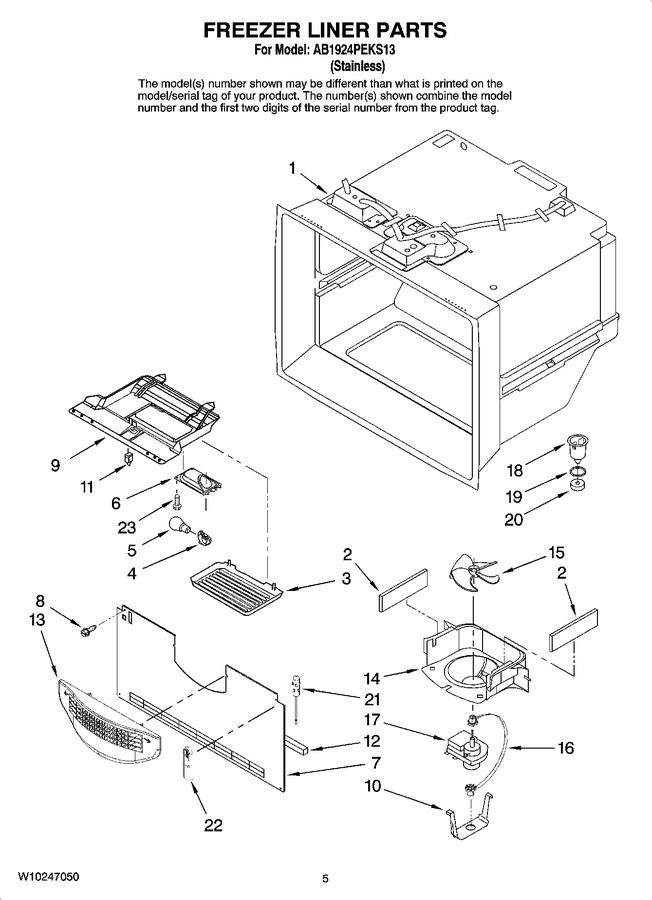

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (2) (Replaces: 67001291) |
|
Immediately | $ 8.06 | ||||
| 3 | 67003905 | Cover, Light |
|
- | |||||
| 4 | W11447232 | Socket, Light (Replaces: W10134763) |
|
Immediately | $ 13.87 | ||||
| 5 | WP67002552 | Bulb, Light (Replaces: 67002552) |
|
Immediately | $ 12.34 | ||||
| 6 | W11702858 | Housing, Frz. Light (Replaces: 67001035) |
|
$ 90.11 | |||||
| 7 | 12226115 | Cover, Evaporator |
|
- | |||||
| 8 | 67006425 | Screw (7) |
|
Immediately | $ 7.30 | ||||
| 9 | 67003906 | Housing, Lighting |
|
$ 116.80 | |||||
| 10 | 13058002 | Clip, Evap. Motor (Replaces: W10167028) |
|
$ 12.66 | |||||
| 11 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 12 | W11451451 | Gasket, Bottom (Replaces: 67003731) |
|
$ 13.03 | |||||
| 13 | WPW10175909 | Cover, Fan Shroud (Replaces: W10175909) |
|
Immediately | $ 85.72 | ||||
| 14 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 15 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 16 | W10121318 | Grommet (2) |
|
$ 50.80 | |||||
| 17 | WP67005023 | Motor, Evaporator (Replaces: 67005023) |
|
$ 327.98 | |||||
| 18 | W10815413 | Funnel, Drain (incl. 19 & 20) (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 20 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 21 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 22 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 8.21 | |||||
| 23 | 67006530 | Screw |
|
- | |||||
| NI | 13065802 | Harness, Lights (freezer) |
|
- |
