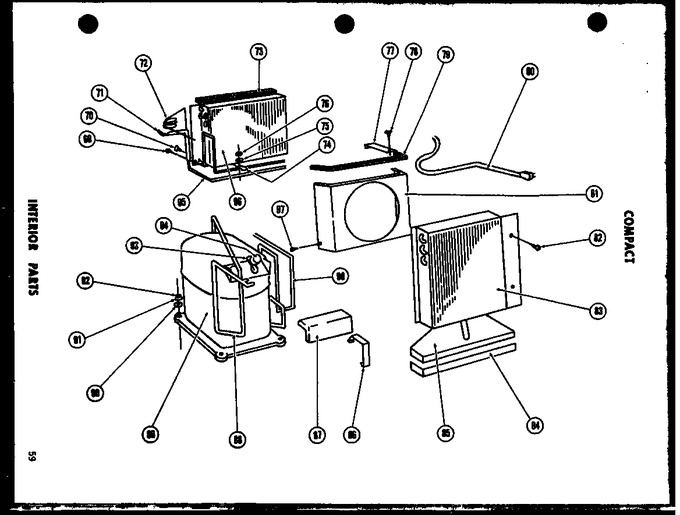

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
70	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
71	B4143101		Strainer		Appelez-nous	-
72	D5404401		Capillary		Appelez-nous	-
73	A3030302		Gasket		Appelez-nous	-
74	A4587401		Clamp, Desuperheater		Appelez-nous	-
76	Y052721		Nut   (Replaces: M0281006)				$ 24.95
78	M0211730		Screw		Appelez-nous	-
79	A3030302		Gasket		Appelez-nous	-
80	B4113203		Cord Set, Unit Power		Appelez-nous	-
81	C5271301		Fan Shroud		Appelez-nous	-
82	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
83	D5392602		Evaporator Coil Assembly		Appelez-nous	-
86	A4587801		Bale Strap		Appelez-nous	-
87	B4793701		Cover		Appelez-nous	-
89	D5451401		Compressor, 240/250 V., 50 Hz,		Appelez-nous	-
97	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
NI	A4097401		Strainer		Appelez-nous	-
NI	C5801301		Mounting Plate		Appelez-nous	-
NI	A4588001		Seal		Appelez-nous	-
NI	A4635601		Spring K		Appelez-nous	-
NI	B4150401		Valve Assembly, Reversing, Ran		Appelez-nous	-
