Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107513SQ Refrigerator Door (w/ Insulation) (stainless) Appelez-nous -
2 67001141 Bucket, Short   (Replaces: 12737701V) In-Stock Immediately $ 78.91

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10324005 Bucket (medium)   (Replaces: 12557212V) Special Order $ 77.75

6 Y12528501 Nameplate   (Replaces: 12528501) In-Stock Immediately $ 62.74

7 12991101 Screw, Handle (black) Special Order $ 13.47

8 WPW10436245 Gasket, Door Magnetic (black)   (Replaces: W10164031) Special Order $ 362.36

9 12846104S Handle, Door (stainless) Special Order $ 136.24

10 12992801 Screw Special Order $ 5.81

11 67001141 Door Bucket (small)   (Replaces: 12557211V) In-Stock Immediately $ 78.91

12 67004978 Bushing (black)   (Replaces: 10961006B) Special Order $ 22.10

13 12690501 Retainer, Door Special Order $ 41.75

14 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

15 10423131SP Bin, Utility Appelez-nous -
16 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

17 10436506S Tray, Egg Appelez-nous -
18 10436404S Lid-utility Appelez-nous -

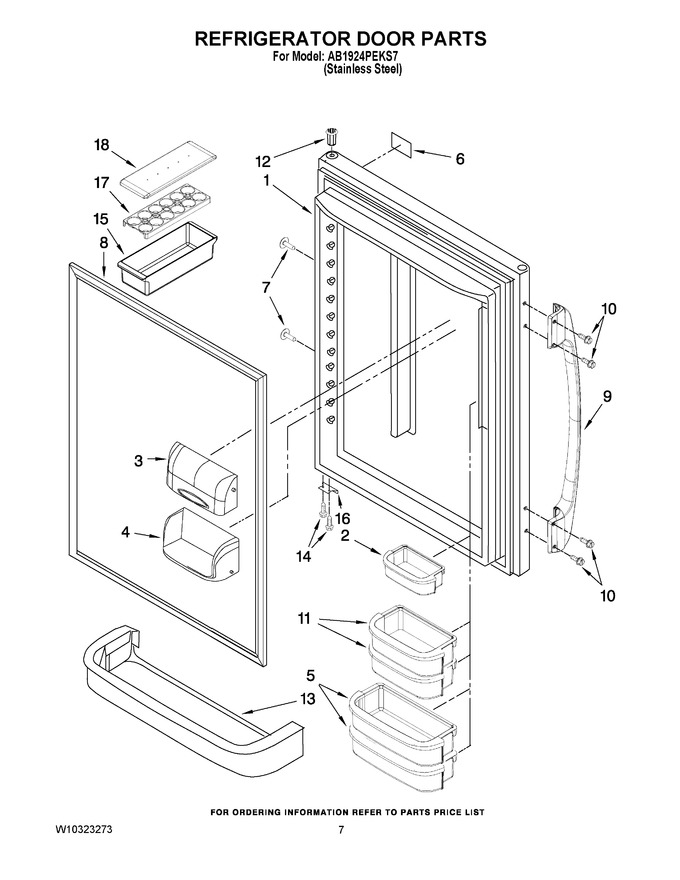

    View Diagram in Separate Window     Print Icon   Print Part List
