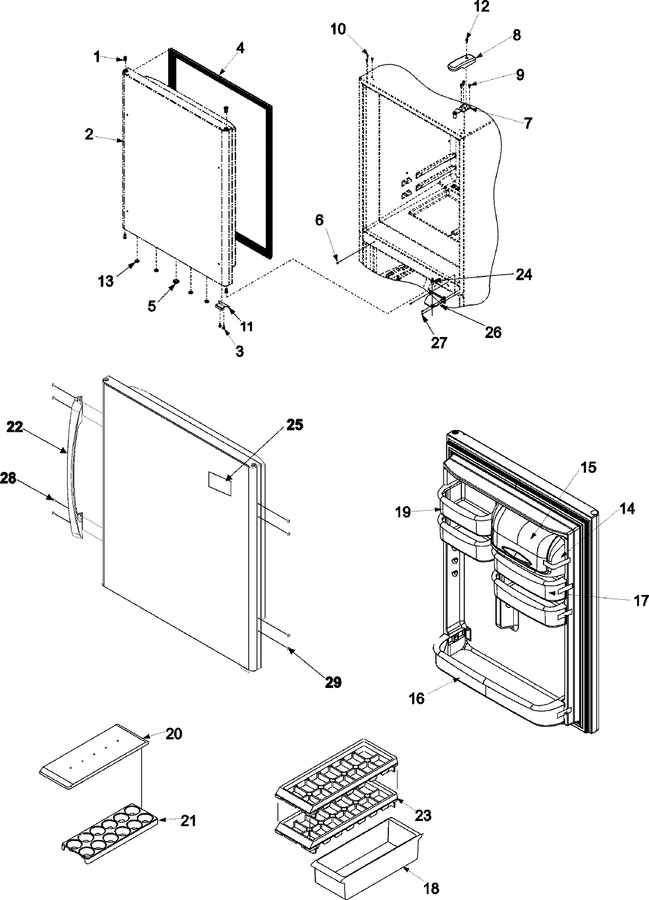

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67003368) | 10 |
|
$ 7.81 | ||||
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 11 |
|
$ 7.81 | ||||
| 2 | 12658541WQ | Door Assy., Ref. Foam (wht) (Replaces: 67005071) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.76 | |||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: 67003548) | 10 |
|
Immediately | $ 347.85 | |||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: W10130148) | 11 |
|
Immediately | $ 347.85 | |||
| 4 | WPW10436245 | Gasket, Ref Door (Replaces: 12683815B) | 11 |
|
$ 345.10 | ||||
| 5 | A3080002 | Plug, Button (wht) | 10 |
|
- | ||||
| 6 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.88 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 21.28 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.38 | ||||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 65.99 | ||||
| 12 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67002505 | Retainer, Door | 10 |
|
- | ||||
| 17 | WPW10324005 | Bucket, Med Ref Door (Replaces: 67003766) | 10 |
|
$ 74.05 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | 67001141 | Bucket, Small Ref Door (Replaces: 67003767) | 10 |
|
Immediately | $ 75.15 | |||
| 20 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 21 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 22 | 67003961 | Handle Assy Bm Side Mnt (wht) | 10 |
|
- | ||||
| 22 | 67006721 | Handle, Door (wht) | 11 |
|
- | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 45.56 | |||
| 24 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) | 10 |
|
$ 8.27 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| 26 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 66.47 | ||||
| 26 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) | 10 |
|
Immediately | $ 8.00 | |||
| 26 | W11689473 | Hinge, Center (wht) (Replaces: 67006960) | 11 |
|
$ 66.47 | ||||
| 27 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.02 | ||||
| 28 | 67004708 | Screw, Hi Torque (wht) | 10 |
|
- | ||||
| 29 | 12991103 | Screw, Sm (wht) | 11 |
|
$ 12.03 | ||||
| 29 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 5.98 |
