SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

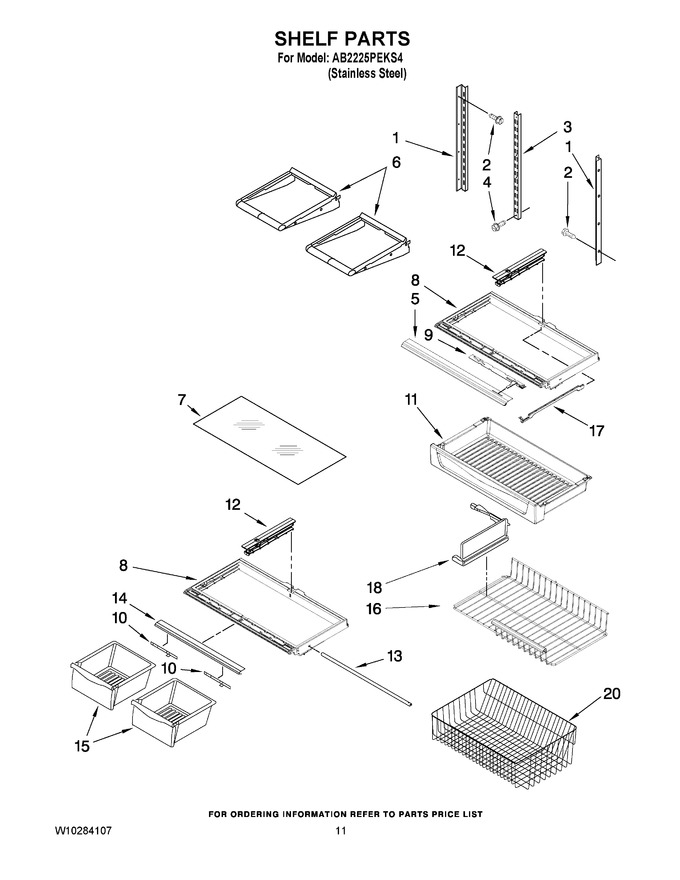

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12710602		Ladder, Side		Appelez-nous	-
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
3	67001073		Ladder, Center   (Replaces: 12435807)				$ 54.18
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.13
5	W10656985		Trim, Pantry Front   (Replaces: W10231333)				$ 131.12
6	W11402521		Shelf, Glide   (Replaces: 12463310)				$ 220.55
7	WP67006878		Glass, Crisper   (Replaces: 12204822)			Immediately	$ 185.19
8	WPW10568041		Frame, Crisper   (Replaces: 12530401SP)			Immediately	$ 137.23
9	12531502		Slide,pantry		Appelez-nous	-
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.81
11	WPW10328329		Pan, Pantry   (Replaces: 12645020)				$ 154.44
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 112.82
13	WP12227303WD		Brace, Crisper Frame   (Replaces: 12227303WD)				$ 105.95
14	W10231341		Trim, Crisper				$ 50.13
15	WP67002633		Pan, Crisper (2)   (Replaces: 12530505)			Immediately	$ 149.12
16	12694605		Shelf, Glide (upper)		Appelez-nous	-
17	12531401		Bar, Pantry		Appelez-nous	-
18	12693802N		Divider, Upper Basket		Appelez-nous	-
20	12754804		Basket, Freezer (lower)				$ 97.34

    View Diagram in Separate Window       Print Part List
