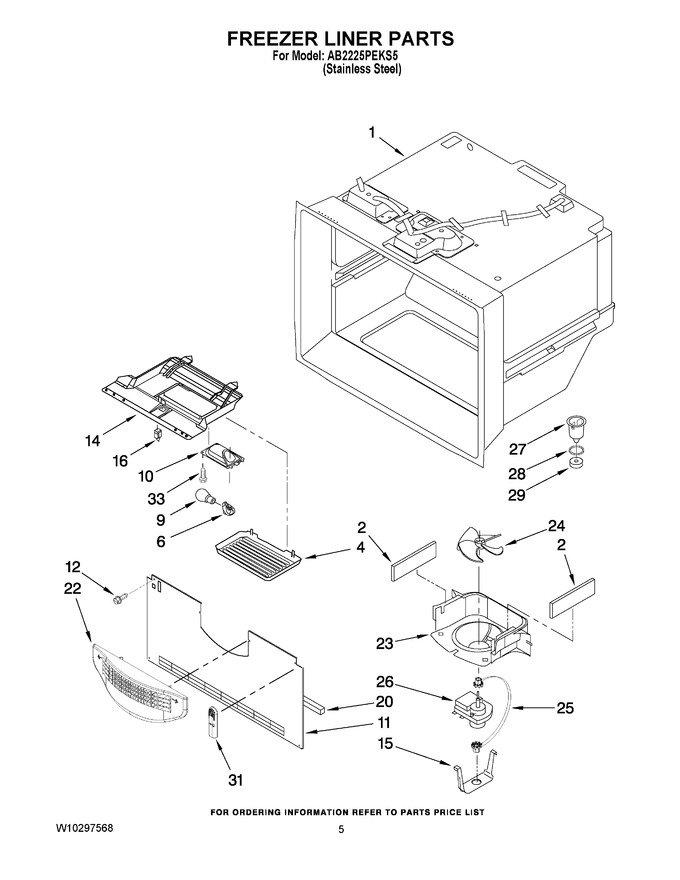

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	W10856123		Gasket, Foam (2)   (Replaces: A3189392)			Immediately	$ 7.68
4	12804901		Cover, Light		Appelez-nous	-
6	W11447232		Socket, Light   (Replaces: W10134764V)			Immediately	$ 13.21
9	WP67002552		Bulb, Light   (Replaces: A0282808V)			Immediately	$ 11.75
10	W11702858		Housing, Frz. Light   (Replaces: 12476401V)				$ 85.82
11	W10308417		Cover, Evaporator   (Replaces: 12226113)		Appelez-nous	-
12	WP489349		Screw (7)   (Replaces: 12990101)			Immediately	$ 7.88
14	12805001		Housing, Lighting		Appelez-nous	-
15	13058002		Clip, Evap. Motor				$ 12.66
16	W11396033		Switch, Light   (Replaces: 12466105)			Immediately	$ 37.30
20	W11451451		Gasket, Bottom   (Replaces: A3189397)				$ 12.41
22	WPW10175909		Cover, Fan Shroud   (Replaces: 13024803)			Immediately	$ 85.72
23	WPW10167023		Shroud, Evap.fan   (Replaces: 13057901)			Immediately	$ 66.28
24	WP2169142		Fan, Evaporator   (Replaces: 2169142)			Immediately	$ 43.41
25	W10121318		Grommet (2)				$ 48.38
26	WP67005023		Motor, Evaporator   (Replaces: 10449516)				$ 312.36
27	W10815413		Funnel, Drain (incl. No. 28 & 29)   (Replaces: D7753903)			Immediately	$ 49.05
28	WPM0500703		Seal   (Replaces: M0500703)				$ 10.92
29	WPB8381501		Gasket   (Replaces: B8381501)				$ 7.41
31	WP67003924		Cover, Thermistor   (Replaces: 12815301)				$ 7.82
33	WP90767		Screw   (Replaces: 12991603V)			Immediately	$ 7.82
NI	13065802		Harness, Lights (freezer)		Appelez-nous	-
