Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107522SQ Refrigerator Door (w/ Insulation) (stainless) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 78.73

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 83.82

5 WPW10324005 Bucket (medium)   (Replaces: 12557212V) Special Order $ 74.05

6 Y12528501 Nameplate   (Replaces: 12528501) In-Stock Immediately $ 59.75

7 12991101 Screw, Handle (black) Special Order $ 12.83

8 WPW10436248 Gasket, Door Magnetic (black)   (Replaces: W10164035) Special Order $ 286.97

9 12846104SN Handle, Door (stainless) Appelez-nous -
10 WP67006197 Screw   (Replaces: 12990202SP) Special Order $ 8.06

12 67004978 Bushing (black)   (Replaces: 10961006B) Special Order $ 21.05

13 12690502 Retainer, Door Special Order $ 45.03

14 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.00

15 10423131SP Bin, Utility Appelez-nous -
16 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.05

17 10436506S Tray, Egg Appelez-nous -
18 10436404S Lid-utility Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

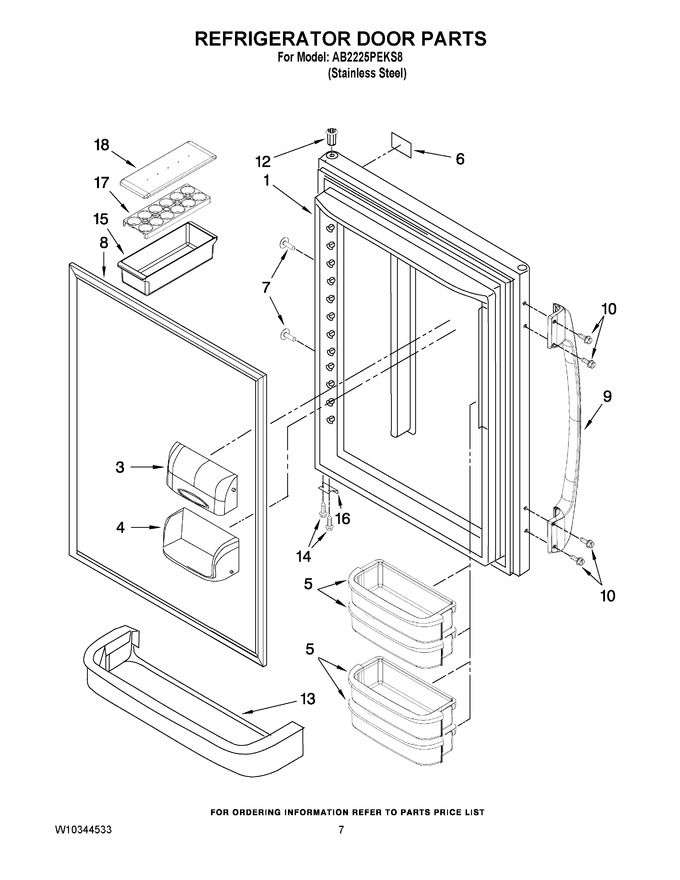

Diagram for AB2225PEKS8
