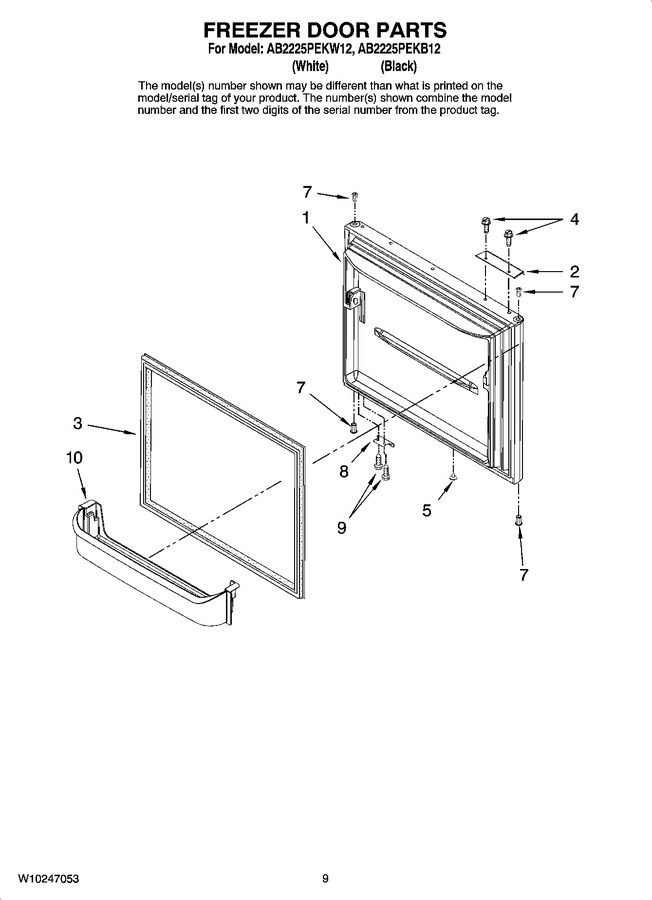

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168717 | Freezer Door (w/ Insulation) (white) |
|
- | |||||
| 1 | W10168719 | Freezer Door (w/ Insulation) (black) |
|
- | |||||
| 2 | 67005125 | Handle, Door (black) |
|
$ 142.03 | |||||
| 2 | WP67005140 | Handle, Door (white) (Replaces: 67005140) |
|
Immediately | $ 148.34 | ||||
| 3 | WPW10436250 | Gasket, Door (black) (Replaces: W10130587) |
|
Immediately | $ 347.99 | ||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10130894) |
|
$ 193.98 | |||||
| 4 | WPW10348409 | Screw, Handle (Replaces: 67006831) |
|
Immediately | $ 7.76 | ||||
| 5 | 67004838 | Plug, Button (black) |
|
$ 10.68 | |||||
| 5 | 8208212 | Plug, Button (white) |
|
- | |||||
| 7 | 67004978 | Bushing (black) |
|
$ 21.05 | |||||
| 7 | WP67004977 | Bushing (white) (Replaces: 67004977) |
|
$ 7.81 | |||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 8 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 9 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 10 | 67003934 | Retainer, Door Shelf |
|
$ 22.73 |
