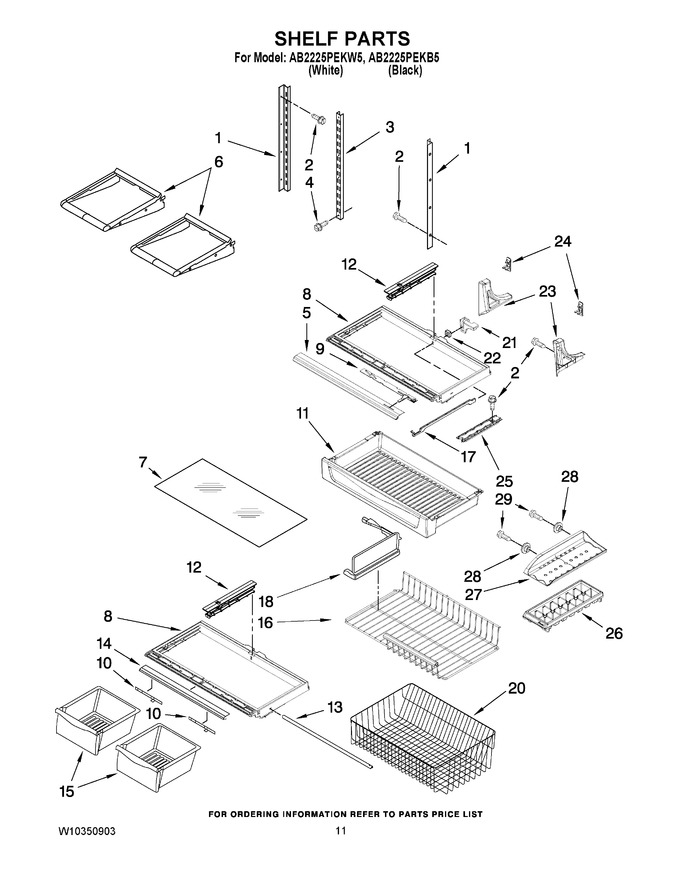

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251969 | Ladder, Side |
|
$ 29.94 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 4 | W10215666 | Screw (2) |
|
$ 9.08 | |||||
| 5 | W10656985 | Trim-pantry-front (Replaces: W10231333) |
|
$ 131.12 | |||||
| 6 | W11402521 | Shelf, Glide (Replaces: 12463310) |
|
$ 220.55 | |||||
| 7 | WP67006878 | Glass, Crisper (Replaces: 12204822N) |
|
Immediately | $ 185.19 | ||||
| 8 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 9 | 12531502N | Slide-pantry |
|
- | |||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 11 | WPW10328329 | Pan, Pantry (Replaces: 12645020) |
|
$ 154.44 | |||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 112.82 | ||||
| 13 | WP12227303WD | Brace, Crisper Frame (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 14 | W10231341 | Trim, Crisper |
|
$ 50.13 | |||||
| 15 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505) |
|
Immediately | $ 149.12 | ||||
| 16 | 12694605 | Shelf, Glide (upper) |
|
- | |||||
| 17 | 12531401N | Bar-pantry |
|
- | |||||
| 18 | 12693802N | Divider, Upper Basket |
|
- | |||||
| 20 | 12754804 | Basket, Freezer (lower) |
|
$ 97.34 | |||||
| 21 | WP12531601 | Tunnel, Pantry (Replaces: 12531601) |
|
$ 10.51 | |||||
| 22 | 12531701 | Gasket, Pantry |
|
- | |||||
| 23 | WP67001722 | Support-right (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 23 | WP67001721 | Support-left (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 24 | WP67001716 | Hook-ladder (2) (Replaces: 12531802) |
|
Immediately | $ 10.61 | ||||
| 25 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 26 | WP841180A | Tray, Ice Cube (Replaces: D7725402S) |
|
Immediately | $ 45.56 | ||||
| 27 | 12646501N | Rack-ice Tray |
|
- | |||||
| 28 | 10972101 | Spacer-ice Rack |
|
$ 7.82 | |||||
| 29 | WP67006908 | Screw (Replaces: 12991001) |
|
Immediately | $ 7.95 |
