01 - Cover

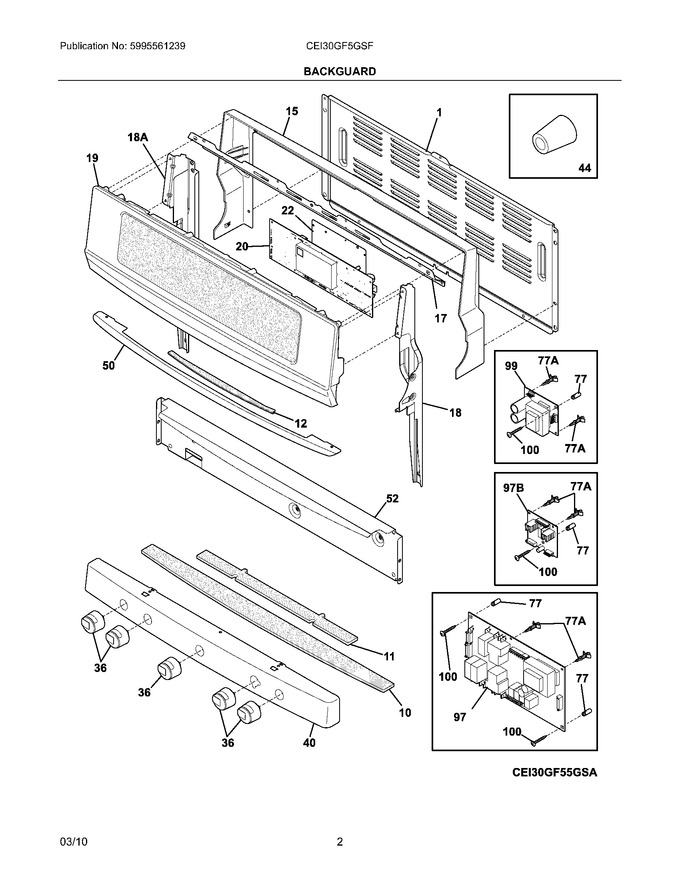

03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316500100 | Shield,rear Wall |
|
- | |||||
| 10 | 316528700 | Insulation,manifold Panel |
|
$ 99.23 | |||||
| 11 | 316528800 | Insulation,front Frame |
|
$ 60.43 | |||||
| 12 | 316538601 | Insualtion,deflector |
|
$ 13.70 | |||||
| 15 | 316500401 | Wrapper,backguard ,black |
|
$ 148.94 | |||||
| 17 | 316500301 | Shield,upper ,backguard |
|
- | |||||
| 18 | 316526000 | Channel,support ,rh ,backguard |
|
- | |||||
| 22 | 316520300 | Bracket,control Mtg. |
|
- | |||||
| 36 | 316535702 | Knob,top Valve ,stainless ,(4) |
|
$ 178.19 | |||||
| 40 | 316512708 | Panel-manifold,stainless |
|
- | |||||
| 44 | 316246500 | Spacer,oven |
|
$ 34.39 | |||||
| 50 | 316537601 | Deflector,heat Shield ,stainless |
|
$ 159.81 | |||||
| 52 | 316514201 | Shield,backguard ,black ,inner |
|
$ 50.87 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 49.61 | |||||
| 100 | 5303289910 | Screw,8a ,1`` ,(2) |
|
$ 6.30 | |||||
| 18A | 316526001 | Channel,support ,lh ,backguard |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| F19 | 316538417 | Control Panel Assembly,user Interface ,w/ss Trim |
|
$ 2,205.05 | |||||
| F20 | 316576603 | Controller,electronic ,es630b (Replaces: 316516516) |
|
$ 535.16 | |||||
| F97 | 316443921 | Board,relay |
|
$ 402.11 | |||||
| F97B | 316519200 | Board,variable Speed |
|
Immediately | $ 284.71 | ||||
| F99 | 316535200 | Board,power Supply ,8v ,(2) |
|
$ 453.73 | |||||
| FNI | 316525600 | Harness,wiring ,backguard |
|
$ 77.92 | |||||
| FNI | 316525635 | Harness-wiring,segmnt Interfac |
|
- | |||||
| NI | 316533900 | Screw,truss Hd ,8-16 X 1.5 ,(10) |
|
$ 12.02 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 316525500 | Screw,blunt Pnt Ph B ,8-18 X .875 ,(2) |
|
- | |||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 11.13 |
