SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

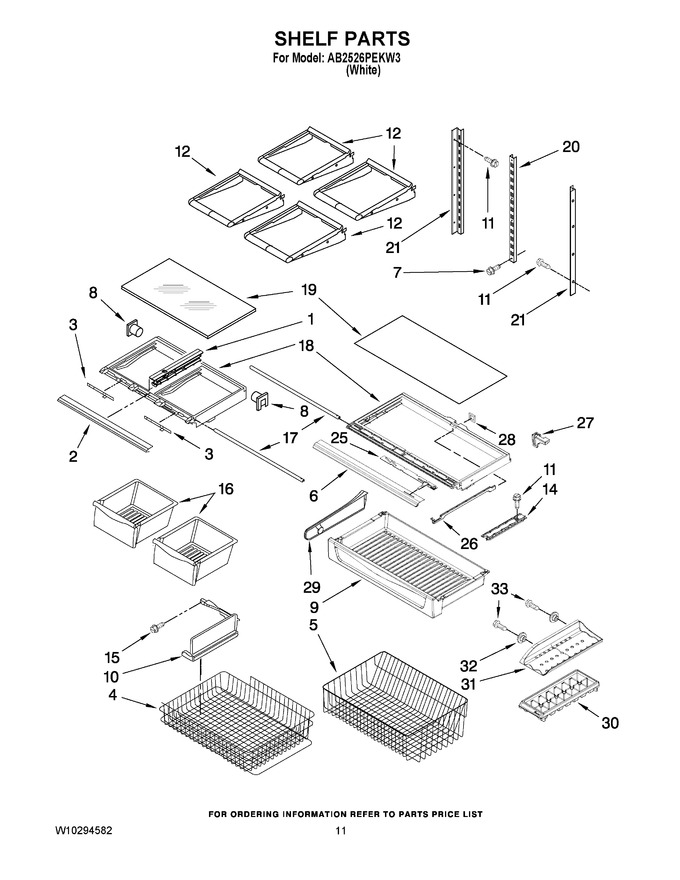

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 12796401)			Immediately	$ 33.37
2	W10231344		Trim, Crisper				$ 58.15
3	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 8.20
4	12896403		Basket, Freezer (upper)		Appelez-nous	-
5	WPW10503184		Basket, Freezer (lower)   (Replaces: 13016003)				$ 250.08
6	W10231336		Trim, Pantry		Appelez-nous	-
7	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
8	WP13062602		Support, Crisper Frame   (Replaces: 13062602)				$ 84.87
9	12645021		Pan, Pantry		Appelez-nous	-
10	12693802		Divider, Basket (upper)		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	12654610		Shelf, Glide (4)		Appelez-nous	-
14	WP67001719		Track-deli   (Replaces: 12531901)			Immediately	$ 8.99
15	12990601		Screw		Appelez-nous	-
16	12724126		Pan, Crisper		Appelez-nous	-
17	WP12642303WD		Brace, Crisper (2)   (Replaces: 12642303WD)				$ 112.26
18	WP67003854		Frame, Crisper (2)   (Replaces: 12796301SP)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper   (Replaces: 12204824)				$ 212.77
20	W10273463		Ladder, Center				$ 29.61
21	W10251969		Ladder, Side				$ 31.44
25	12531502		Slide,pantry		Appelez-nous	-
26	12531402		Bar, Control		Appelez-nous	-
27	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 11.04
28	12531701		Gasket, Pantry		Appelez-nous	-
29	12707602		Divider, Pantry		Appelez-nous	-
30	WP841180A		Tray, Ice Cube   (Replaces: D7725402S)			Immediately	$ 47.84
31	12646501		Rack, Ice		Appelez-nous	-
32	10972101		Spacer, Rack				$ 7.82
33	WP67006908		Screw (2)   (Replaces: 12991001)			Immediately	$ 8.78
