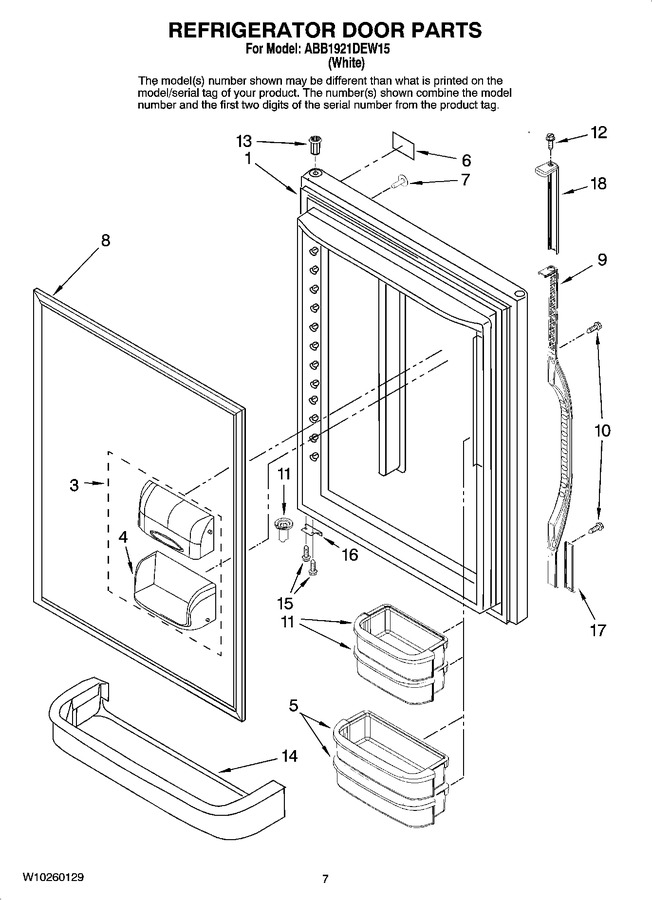

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658501WQ | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 3 | WP12744905 | Door, Compartment (Replaces: 12744905V) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket (2) (medium) (Replaces: 12557204V) |
|
$ 84.95 | |||||
| 6 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 7 | WP67001130 | Plug, Button (2) (white) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10164030) |
|
Immediately | $ 365.24 | ||||
| 9 | 12753101W | Handle, Door (white) |
|
- | |||||
| 10 | 60001022 | Screw (Replaces: 12990508) |
|
$ 66.41 | |||||
| 11 | 67001141 | Bucket (2) Small (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 12 | 12248201 | Screw |
|
$ 5.48 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 17 | 12660304W | Trim, Handle Lower |
|
- | |||||
| 18 | 12641702W | Trim, Handle Upper |
|
- |
