SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

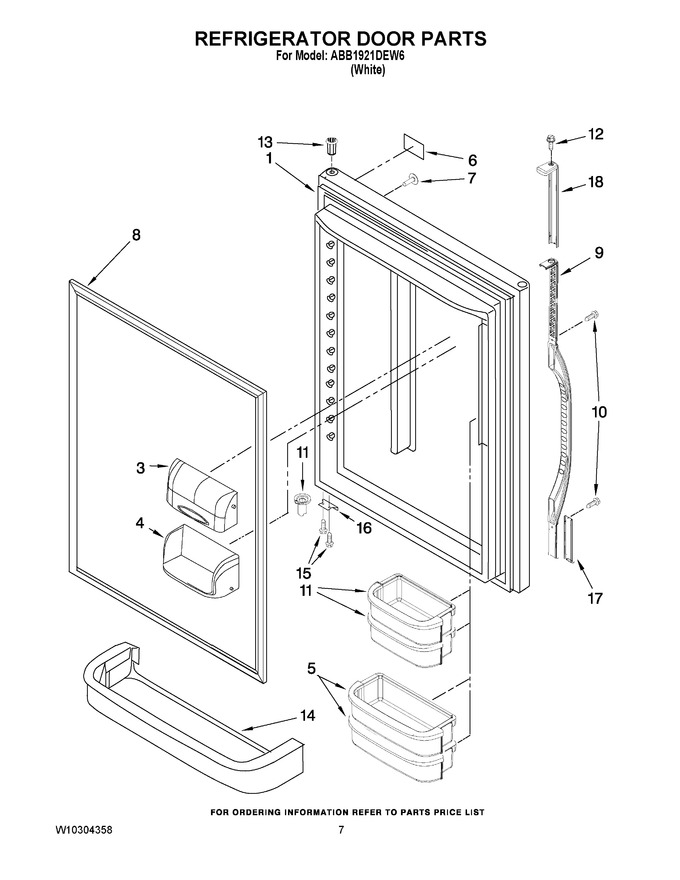

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658501WQ		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67001021		Bucket (2) (medium)   (Replaces: 12557204V)				$ 80.90
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
7	WP67001130		Plug, Button (2) (white)   (Replaces: 12246601)			Immediately	$ 5.98
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 347.85
9	12753101W		Handle, Door (white)		Appelez-nous	-
10	60001022		Screw   (Replaces: 12990508)				$ 63.25
11	67001141		Bucket (2) Small   (Replaces: 12557202)			Immediately	$ 75.15
12	12248201		Screw				$ 5.48
13	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
14	67001139		Retainer, Door   (Replaces: 12557904)			Immediately	$ 99.80
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
16	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
17	12660304W		Trim, Handle Lower		Appelez-nous	-
18	12641702W		Trim, Handle Upper		Appelez-nous	-
