Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13024224BQ Freezer Door (w/ Insulation) (black) Special Order $ 449.53

2 67005125 Handle, Door (black)   (Replaces: 12610803B) Special Order $ 142.03

3 WPW10436247 Gasket, Door (black)   (Replaces: W10164033) In-Stock Immediately $ 355.53

4 WPW10348409 Screw   (Replaces: 12990301) In-Stock Immediately $ 7.76

5 WP12246608 Plug, Hole Black   (Replaces: 12246603) In-Stock Immediately $ 7.76

6 67004978 Bushing (4)   (Replaces: 10961006B) Special Order $ 21.05

7 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.05

8 WP98165 Screw (2)   (Replaces: 12990504) Special Order $ 8.00

9 67003397 Retainer, Basket   (Replaces: 12737501) Special Order $ 104.39


    View Diagram in Separate Window     Print Icon   Print Part List

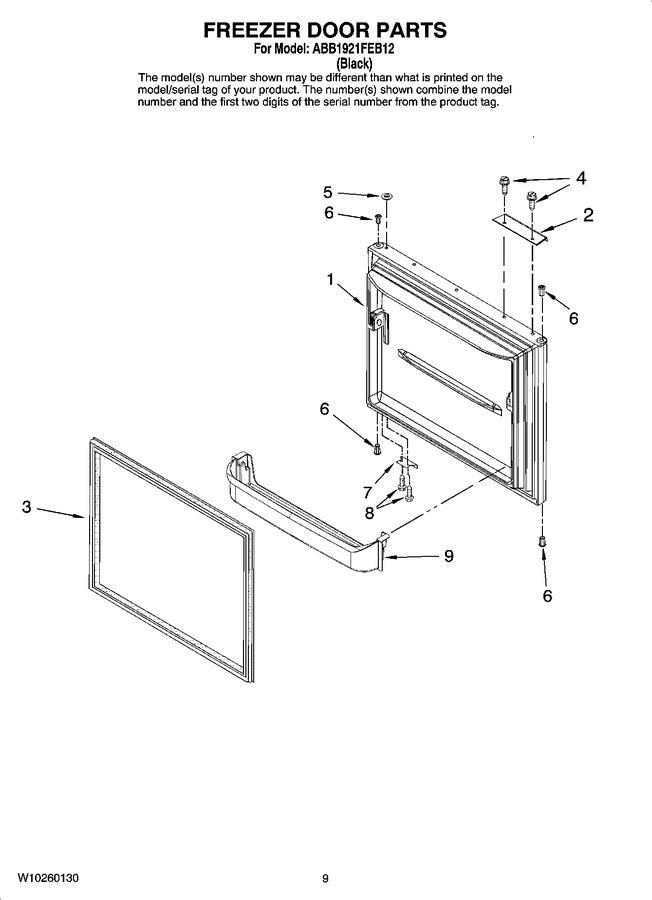

Diagram for ABB1921FEB12
