SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

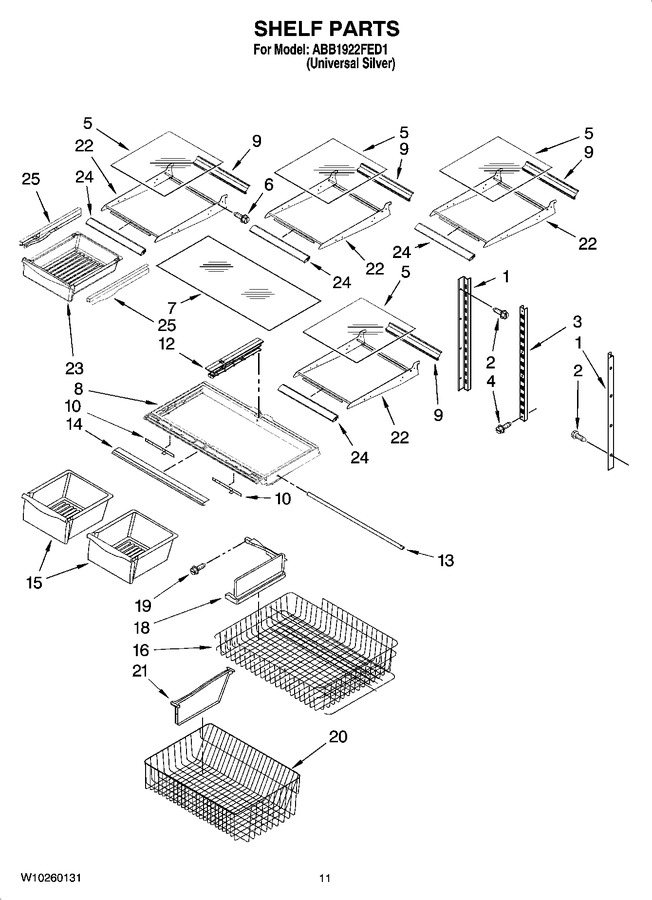

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12710606		Ladder, Side		Appelez-nous	-
2	67006425		Screw (6)   (Replaces: 12990513)			Immediately	$ 7.30
3	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
5	12204808		Shelf, Glass (4)				$ 27.75
6	W11233072		Screw (4)   (Replaces: 12990302SP)			Immediately	$ 14.72
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
9	10946012		Trim-rear-(4)		Appelez-nous	-
10	WP67005864		Slide, Humidity(2)   (Replaces: 12530805)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
13	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 111.60
14	W10231337		Trim, Crisper				$ 47.70
15	W10833528		Pan, Crisper (2)   (Replaces: 12531305)			Immediately	$ 139.95
16	12896401		Basket, Freezer (upper)		Appelez-nous	-
18	12693802		Divider, Upper Basket		Appelez-nous	-
19	12990601		Screw		Appelez-nous	-
20	W10503182		Basket, Freezer (lower)   (Replaces: W10143560)				$ 241.97
21	12659608		Divider, Lower Basket		Appelez-nous	-
22	10460116		Frame, Shelf (4)		Appelez-nous	-
23	WP67001308		Pan   (Replaces: 12656504SP)			Immediately	$ 138.10
24	10459930		Trim-front-(4)				$ 42.17
25	WP67001054		Glide, Deli (left)   (Replaces: 12656601V)			Immediately	$ 8.82
25	WP67001053		Glide, Deli (right)   (Replaces: 12656602V)			Immediately	$ 9.24

    View Diagram in Separate Window       Print Part List
