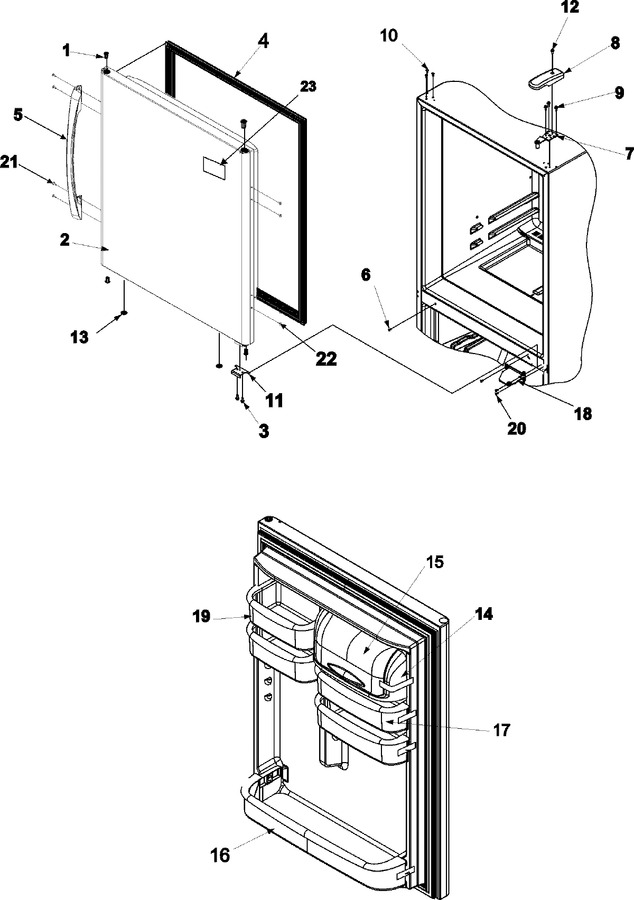

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 7.81 | ||||
| 2 | 67004037 | Door Assy., Ref. Foam (bsq) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: 67003548) | 10 |
|
Immediately | $ 347.85 | |||
| 5 | 67006804 | Handle, Side Mount (bsq) | 10 |
|
- | ||||
| 6 | WP489349 | Screw, Tf Hex/washer Hd (Replaces: 67005822) | 10 |
|
Immediately | $ 7.88 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001013 | Cover, Top Hinge (bsq) | 10 |
|
- | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 67003781 | Stop, Door (bsq) | 10 |
|
$ 79.16 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67001139 | Retainer, Door (Replaces: 67001296) | 10 |
|
Immediately | $ 99.80 | |||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 80.90 | ||||
| 18 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 66.47 | ||||
| 18 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 7.93 | ||||
| 19 | 67001141 | Bucket, Small Ref Dr | 10 |
|
Immediately | $ 75.15 | |||
| 20 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.02 | ||||
| 21 | 67004707 | Screw, Hi Torque (bsq) |
|
$ 18.30 | |||||
| 22 | 12246604 | Plug, Handle Hole (bsq) |
|
- | |||||
| 23 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| NI | WP67003638 | Closure, Door (wht) (Replaces: 67003638) | 10 |
|
Immediately | $ 7.76 |
