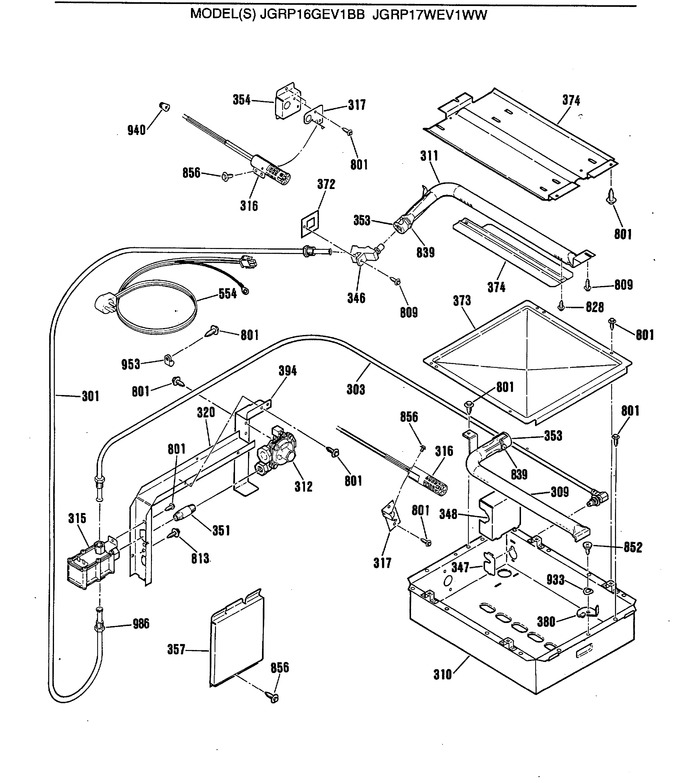

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | WB28K5021 | Tube Asm |
|
- | |||||
| 303 | WB28K5026 | Tube Asm |
|
- | |||||
| 309 | WB16K5012 | Ov Burner Asm |
|
- | |||||
| 310 | WB64K5034 | Ov Burner Box Asm |
|
- | |||||
| 311 | WB16K5013 | Ov Burner Asm-broil |
|
- | |||||
| 312 | WB19K5021 | Pressure Regulator-conv. |
|
- | |||||
| 315 | WB20X126 | Valve Cont |
|
- | |||||
| 316 | WG02F04373 | Igniter Asm (Replaces: WB2X9154) |
|
Immediately | $ 125.83 | ||||
| 317 | WB2X9162 | Bracket Ign |
|
- | |||||
| 317 | WB2X9155 | Bracket Ign Br Burn |
|
- | |||||
| 320 | WB34K5212 | Valve Wire Cover |
|
- | |||||
| 346 | WB2X9646 | Fitting Br Orif |
|
- | |||||
| 347 | WB2X9163 | Plate Orifice Fitting |
|
- | |||||
| 348 | WB2X9159 | Shield Orif Fig |
|
- | |||||
| 351 | WB2X9611 | Nipple |
|
- | |||||
| 353 | WB2X9014 | Air Shutter |
|
- | |||||
| 354 | WB2X9645 | Cover Ign Wires |
|
- | |||||
| 357 | WB34K5096 | Valve Cover |
|
- | |||||
| 372 | WB6K5043 | Chip Cover |
|
- | |||||
| 373 | WB34K5095 | Ov Bottom Baffle |
|
- | |||||
| 374 | WB49X663 | Baffle Burn Bro |
|
- | |||||
| 374 | WB49X655 | Broil Burner Baffle-lo |
|
- | |||||
| 380 | WB14X115 | Latch Ov Btm-075 |
|
- | |||||
| 394 | WB2K5343 | Regulator Support |
|
- | |||||
| 554 | WB8K5039 | Range Cord |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 828 | WB1X1141 | Screw |
|
- | |||||
| 839 | WB1X1124 | Air Shutter Screw |
|
- | |||||
| 852 | WB1X1179 | Screw Shldr Sp Pan Ni |
|
- | |||||
| 856 | WG02F04011 | Screw (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 933 | WB1X1256 | Washer |
|
- | |||||
| 940 | WB1X1181 | Wire Connector |
|
- | |||||
| 953 | WB2X9106 | Clip |
|
- | |||||
| 986 | WB1X1117 | Nut |
|
- |
