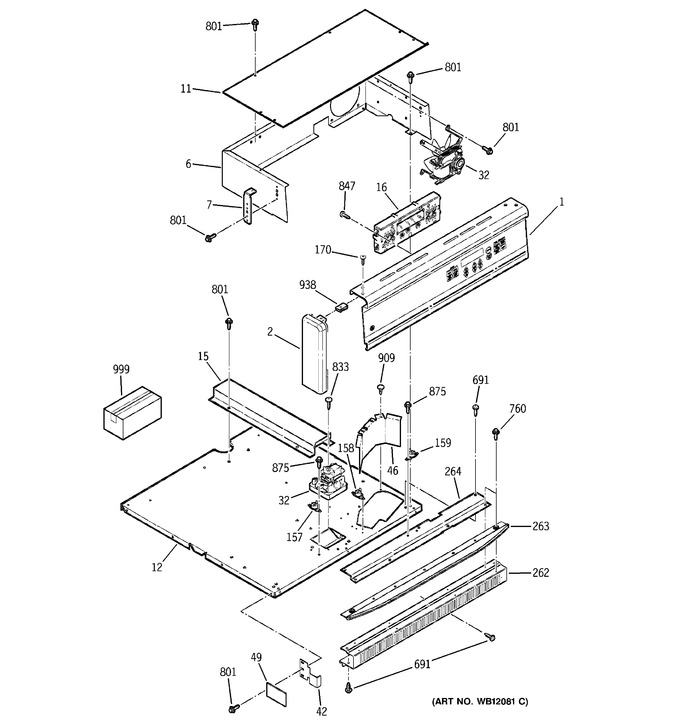

SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


5 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10074		Control Panel W/oly		Appelez-nous	-
2	WB36T10065		End Cap Lt-blk		Appelez-nous	-
2	WB36T10064		End Cap Rt-blk		Appelez-nous	-
6	WB36K5699		Control Panel Housing		Appelez-nous	-
7	WB2K5406		Control Panel Bracket		Appelez-nous	-
11	WB37K5040		Control Housing Top		Appelez-nous	-
12	WB63K5198		Cabinet Top		Appelez-nous	-
15	WB2X9665		Wire Cover		Appelez-nous	-
16	WB27K5329		Clock/oven Control		Appelez-nous	-
32	WG02F05326		Fan Asm   (Replaces: WB26K5061)				$ 188.08
32	WB26X114		Fan Assembly Lower		Appelez-nous	-
42	WB34K5249		Heat Shield		Appelez-nous	-
46	WB34K5263		Wire Shield		Appelez-nous	-
49	WB35K5129		Heat Shield Insulation		Appelez-nous	-
157	WB24K5045		Limit Switch-to Cab Top		Appelez-nous	-
158	WB24K5041		Limit Switch-fan		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
170	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
262	WB7K5477		Vent Trim-black		Appelez-nous	-
262	WB7K5278		Vertical Side Trim-blk		Appelez-nous	-
263	WB7K5478		I-brow Trim-blk		Appelez-nous	-
264	WB7K5108		Vent Trim Extension		Appelez-nous	-
691	WB1K5162		Screw-black		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
833	WB1X1131		Screw		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
909	WB1X1173		Rivet		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
999	31-13665		Manual Mini & Wd Asm		Appelez-nous	-
999	49-8703		Use Care Manual		Appelez-nous	-
999	WB18K5490		Door Switch Wire Harness		Appelez-nous	-
999	31-10298		Instruction Install		Appelez-nous	-
999	WB18K5600		Sensor Wire Harness		Appelez-nous	-
999	WB18K5642		Main Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
