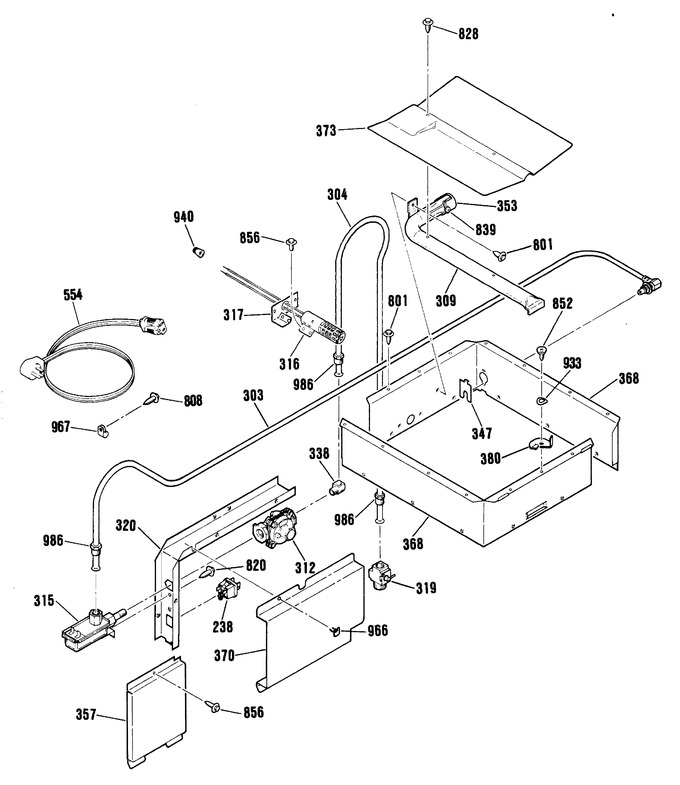

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
238	WB17X207		Disconnect		Appelez-nous	-
303	WB28K5026		Tube Asm		Appelez-nous	-
304	WB28K5023		3/8 Tube W/nuts		Appelez-nous	-
309	WB16K5014		Oven Burner Asm		Appelez-nous	-
312	WB19K5010		Pressure Regulator		Appelez-nous	-
315	WB21K5009		Control Valve		Appelez-nous	-
316	WG02F04373		Igniter-broil/oven   (Replaces: WB2X9154)			Immediately	$ 125.83
317	WB2X9162		Igniter Bracket-bake		Appelez-nous	-
319	WB21X520		Inlet Valve		Appelez-nous	-
320	WB34K5104		Wire Cover-lo		Appelez-nous	-
338	WB2X9613		90 Degree Elbow		Appelez-nous	-
347	WB2K5165		Orifice Fitting Plate		Appelez-nous	-
353	WB2X9014		Air Shutter		Appelez-nous	-
357	WB34K5096		Valve Cover		Appelez-nous	-
368	WB64K5035		Ov Burn Box Side-rt		Appelez-nous	-
368	WB64K5036		Ov Burn Box Side-lt		Appelez-nous	-
370	WB34K5181		Regulator Cover		Appelez-nous	-
373	WB34K5103		Ov Burn Baffle-upper		Appelez-nous	-
380	WB14X115		Latch-burner Box Bottom		Appelez-nous	-
554	WB8K5041		Power Cord		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
808	WB1X1116		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 12.51
820	WB1X1424		Screw		Appelez-nous	-
828	WB1X1141		Screw		Appelez-nous	-
839	WB1X1124		Air Shutter Screw		Appelez-nous	-
852	WB1X1179		Screw		Appelez-nous	-
856	WG02F04011		Screw   (Replaces: WB1X1293)				$ 3.57
933	WB1X1256		Washer		Appelez-nous	-
940	WB1X1181		Wire Connector		Appelez-nous	-
966	WB2X9573		Clip		Appelez-nous	-
986	WB1X1117		Nut		Appelez-nous	-
999	31-13071		Manual Mini & Wire Diag		Appelez-nous	-
999	49-8198		Manual Use & Care		Appelez-nous	-
999	WB18K5242		Cnt Valve Wire Harness		Appelez-nous	-
999	31-10100		Installation Instruction		Appelez-nous	-
999	WB18K5243		Main Wire Harness		Appelez-nous	-
