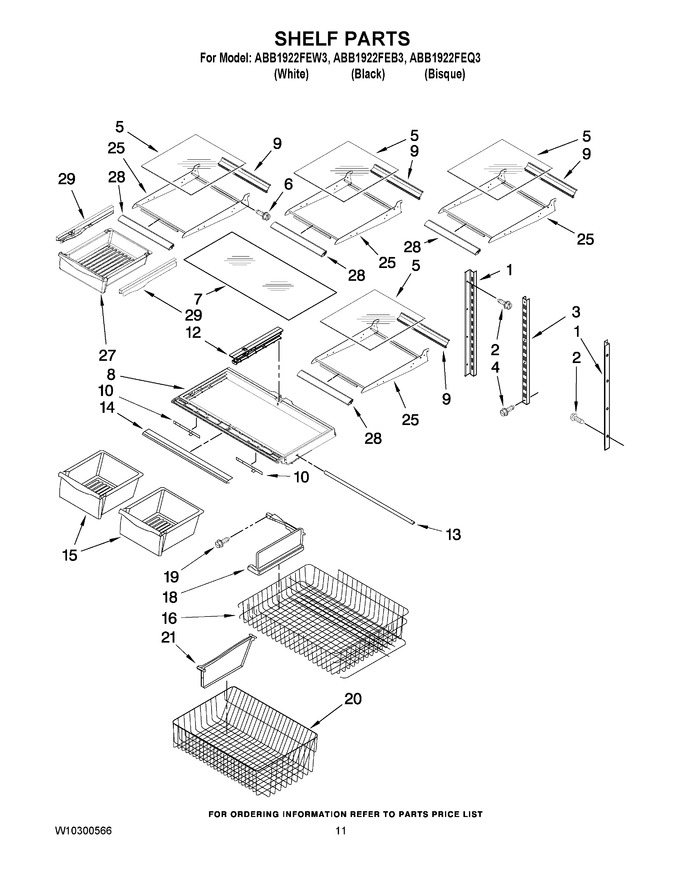

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251970		Ladder, Side				$ 28.47
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
3	W10273463		Ladder, Center				$ 28.20
4	W10709795		Screw   (Replaces: 12990515)				$ 13.13
5	12204808V		Shelf, Glass (4)		Appelez-nous	-
6	W11233072		Screw   (Replaces: 12990302V)			Immediately	$ 14.02
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
9	10946012V		Trim, Rear		Appelez-nous	-
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.81
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 112.82
13	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 106.29
14	W10231337		Trim, Crisper				$ 47.70
15	W10833528		Pan, Crisper   (Replaces: 12531305)			Immediately	$ 139.95
16	12896401		Basket, Freezer (upper)		Appelez-nous	-
18	12693802		Divider, Basket (upper)		Appelez-nous	-
19	12990601		Screw		Appelez-nous	-
20	W10503182		Basket, Freezer (lower)   (Replaces: 13016001)				$ 230.45
21	12659608		Divider, Basket Lower		Appelez-nous	-
25	10460116V		Frame, Shelf		Appelez-nous	-
27	WP67001308		Pan   (Replaces: 12656504V)			Immediately	$ 138.10
28	W10231328		Trim, Front		Appelez-nous	-
29	WP67001054		Glide, Deli (left)   (Replaces: 12656601V)			Immediately	$ 8.40
29	WP67001053		Glide, Deli (right)   (Replaces: 12656602V)			Immediately	$ 9.24
