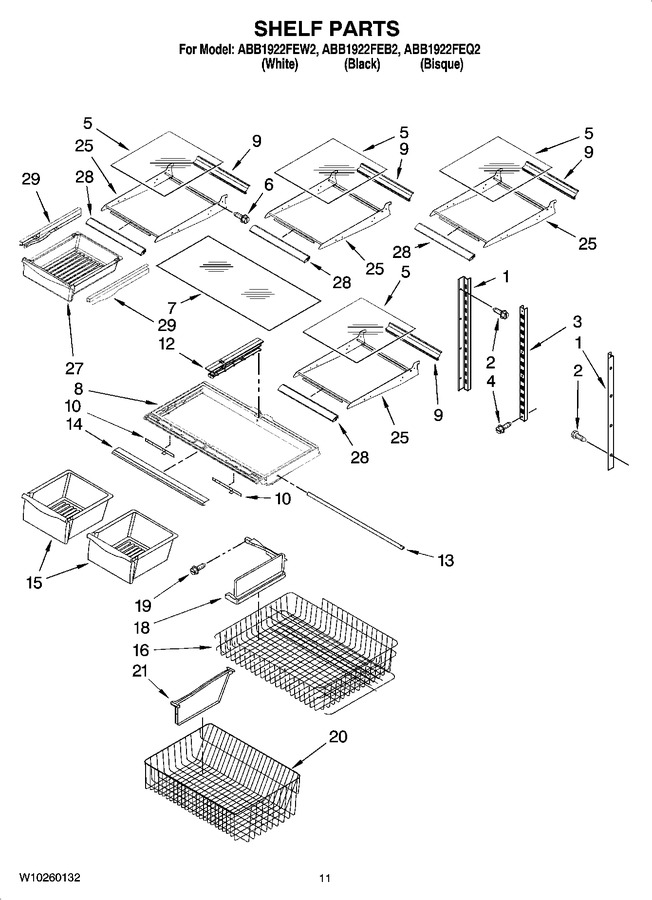

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001302 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 54.18 | |||||
| 4 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.13 | |||||
| 5 | 12204808 | Shelf, Glass (4) |
|
$ 27.75 | |||||
| 6 | W11233072 | Screw (Replaces: 67006626) |
|
Immediately | $ 14.02 | ||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 9 | 10946012 | Trim, Rear |
|
- | |||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 67005864) |
|
Immediately | $ 7.81 | ||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 112.82 | ||||
| 13 | WP12227302WD | Brace, Crisper Frame (Replaces: 67001155) |
|
$ 106.29 | |||||
| 14 | W10231337 | Trim, Crisper |
|
$ 47.70 | |||||
| 15 | W10833528 | Pan, Crisper (Replaces: 67002569) |
|
Immediately | $ 139.95 | ||||
| 16 | 67004985 | Basket, Freezer (upper) |
|
$ 99.88 | |||||
| 18 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 19 | 67006608 | Screw |
|
- | |||||
| 20 | W10503182 | Basket, Freezer (lower) (Replaces: W10143560) |
|
$ 230.45 | |||||
| 21 | 67006644 | Divider, Basket (lower) |
|
- | |||||
| 25 | 67003400 | Frame, Shelf |
|
$ 33.00 | |||||
| 27 | WP67001308 | Pan (Replaces: 67001308) |
|
Immediately | $ 138.10 | ||||
| 28 | 10459930 | Trim, Front |
|
$ 42.17 | |||||
| 29 | WP67001054 | Glide-deli (left) (Replaces: 67001054) |
|
Immediately | $ 8.40 | ||||
| 29 | WP67001053 | Glide-deli (right) (Replaces: 67001053) |
|
Immediately | $ 9.24 |
