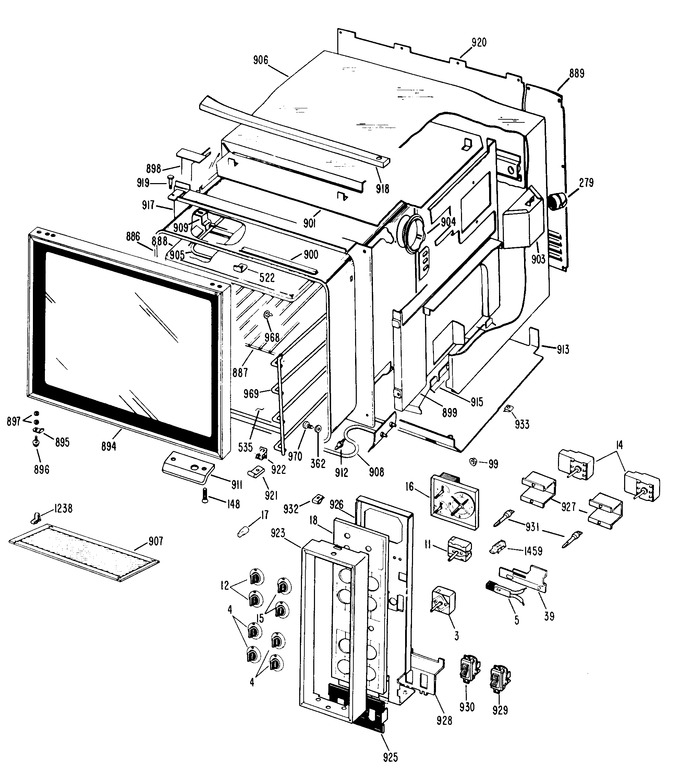

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	WB3X464		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
5	WB2X3468		Neon Lamp 240v		Appelez-nous	-
11	WB22X79		Switch, Oven		Appelez-nous	-
12	WB3X469		Knob Oven Switch		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
14	WB21X5208		Thermostat Upper Oven		Appelez-nous	-
14	WB21X5209		Thermostat Lower Oven		Appelez-nous	-
15	WB3X470		Knob Thermostat		Appelez-nous	-
16	WB19X123		Timer		Appelez-nous	-
17	WB3X459		Knob Timer		Appelez-nous	-
18	WB2X3232		Pad Crystal		Appelez-nous	-
18	WB2X6240		Pad		Appelez-nous	-
18	WB36X5368		Crystal		Appelez-nous	-
39	WB2X3243		Bracket Lamp		Appelez-nous	-
45	WB1X540		Nut		Appelez-nous	-
148	WZ04X0237		Screw		Appelez-nous	-
279	WB8X191		Receptacle		Appelez-nous	-
362	WB1X119		Washer Screw		Appelez-nous	-
520	WB2X3471		Clip Capillary Tubeoven		Appelez-nous	-
522	WB2X6209		Clip Trim		Appelez-nous	-
763	WB2X1665		Clip Filter		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
827	WB2X2999		Angle Brace		Appelez-nous	-
829	WB2X190		Clip Spring		Appelez-nous	-
886	WB2X1511		Insulation		Appelez-nous	-
886	WB53X5075		Oven Liner		Appelez-nous	-
887	WB48X111		Rack Oven		Appelez-nous	-
888	WB49X139		Reflector Broil		Appelez-nous	-
889	WB49X301		Cover Instrument		Appelez-nous	-
894	WB56X6024		Door Oven		Appelez-nous	-
895	WB2X1658		Plate Friction		Appelez-nous	-
896	WB1X400		Screw		Appelez-nous	-
897	WB1X401		Washer		Appelez-nous	-
898	WB49X179		Duct Air		Appelez-nous	-
899	WB55X290		Insulation Guard Asm		Appelez-nous	-
900	WB2X2957		Gasket Silicone Up Oven		Appelez-nous	-
901	WB55X287		Guard Top Insulation		Appelez-nous	-
901	WB2X1561		Strain Relief		Appelez-nous	-
903	WB2X1520		Shield Oven Lamp		Appelez-nous	-
904	WB36X126		Glass Oven Lamp		Appelez-nous	-
905	WB2X1509		Support Broil		Appelez-nous	-
906	WB56X1464		Case Side Lh Ha		Appelez-nous	-
906	WB56X1460		Case Side Rh Ad		Appelez-nous	-
906	WB56X1461		Case Side Lh Wh		Appelez-nous	-
906	WB56X1459		Case Side Rh Ha		Appelez-nous	-
906	WB56X1456		Case Side Rh Wh		Appelez-nous	-
906	WB56X1465		Case Side Lh Ad		Appelez-nous	-
907	WB2X1666		Filter		Appelez-nous	-
908	WB44X195		Bake Unit Upper Oven		Appelez-nous	-
909	WB44X139		Broil Unit Upper Oven				$ 129.34
911	WB15X126		Handle		Appelez-nous	-
912	WB1X5508		Strike Asm Door		Appelez-nous	-
913	WB55X421		Bottom Case		Appelez-nous	-
915	WB55X198		Guard Insulation Lower		Appelez-nous	-
917	WB56X5768		Frame Asm		Appelez-nous	-
918	WB7X776		Deflector		Appelez-nous	-
919	WB1X529		Pin Hinge		Appelez-nous	-
920	WB49X300		Cover Back		Appelez-nous	-
921	WB2X2785		Guide Door		Appelez-nous	-
922	WB2X1570		Catch Spring		Appelez-nous	-
923	WB7X1223		Trim Control		Appelez-nous	-
925	WB7X985		Trim Switch		Appelez-nous	-
926	WB2X3196		Bracket Instrument		Appelez-nous	-
927	WB2X2657		Bracket Thermo Upper		Appelez-nous	-
928	WB2X2996		Bracket Switch		Appelez-nous	-
929	WB24X177		Switch, Lamps		Appelez-nous	-
930	WB24X178		Switch, Fan		Appelez-nous	-
931	WB2X2470		Ext Shaft Upper Thermo		Appelez-nous	-
932	WB1X358		Speednut		Appelez-nous	-
933	WB2X1667		Clip		Appelez-nous	-
968	WB2X3023		Grommet		Appelez-nous	-
969	WB48X110		Support Rack		Appelez-nous	-
32767	WB56X6001		Case Side Lh Sl		Appelez-nous	-
32767	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
32767	WB56X5998		Case Side Rh Ds		Appelez-nous	-
32767	WB56X5999		Case Side Rh Sl		Appelez-nous	-
32767	WB56X6000		Case Side Lh Ds		Appelez-nous	-
