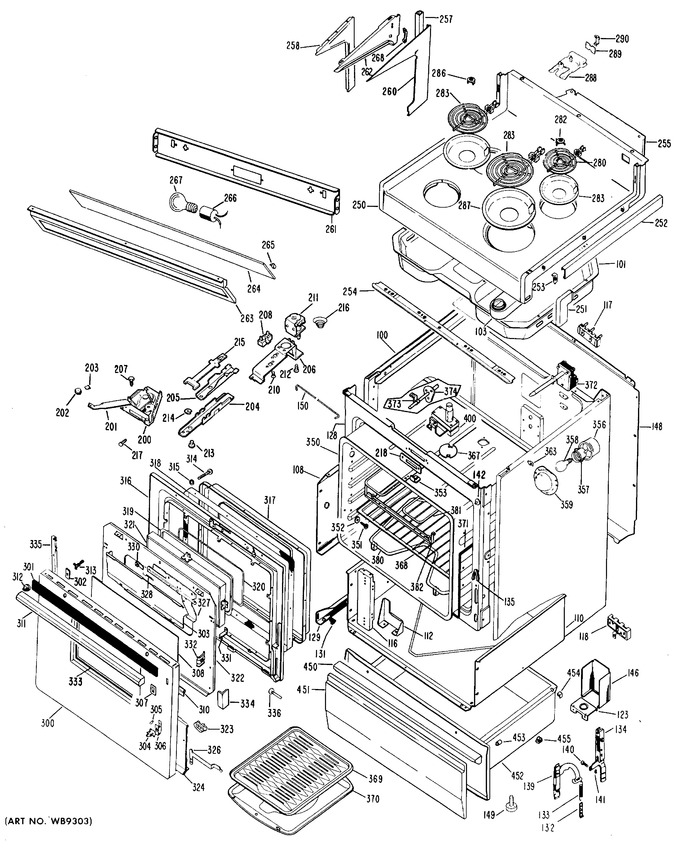

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Blower Parts Only
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB2X3229 | Barrier-bake Unit Openin |
|
- | |||||
| 100 | WB1X488 | Screw, Mtg. Guide |
|
- | |||||
| 100 | WB2X1742 | Clamp-wiring |
|
- | |||||
| 100 | WB2X2785 | Guide, Door |
|
- | |||||
| 101 | WZ04X0231 | Screw Mtg. Cooktop Box |
|
- | |||||
| 101 | WB2X3238 | Pad-cooktop Box |
|
- | |||||
| 101 | WB49X5149 | Box-cooktop |
|
- | |||||
| 103 | WB38X5039 | Vent Body |
|
- | |||||
| 108 | WB49X5172 | Guard Upper-lh |
|
- | |||||
| 108 | WZ04X0231 | Screw-mtg. Guards |
|
- | |||||
| 108 | WB49X5171 | Guard Upper-rh |
|
- | |||||
| 110 | WZ04X0231 | Screw-mtg. Guards |
|
- | |||||
| 110 | WB49X5156 | Guard Lower |
|
- | |||||
| 112 | WB2X6187 | Support Oven |
|
- | |||||
| 116 | WB2X6768 | Panel-filler |
|
- | |||||
| 116 | WZ04X0231 | Screw Mtg. Panel |
|
- | |||||
| 117 | WB17X167 | Terminal Block-distr. |
|
- | |||||
| 117 | WZ04X0384 | Screw Mtg. Block |
|
- | |||||
| 118 | WZ04X0231 | Screw Mtg. Plate |
|
- | |||||
| 118 | WB2X646 | Plate Ground |
|
- | |||||
| 118 | WB17X5095 | Power Terminal Block |
|
- | |||||
| 118 | WZ04X0348 | Screw Mtg. Term. Block |
|
- | |||||
| 123 | WB2X6191 | Knockout Bracket |
|
- | |||||
| 123 | WS01A02255 | Screw Mtg. Bracket (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 123 | WZ04X0231 | Screw Mtg. Trans. |
|
- | |||||
| 128 | WB56X1296 | Front Frame |
|
- | |||||
| 128 | WB2X3240 | Spacer |
|
- | |||||
| 128 | WZ04X0231 | Screw Mtg. Frame |
|
- | |||||
| 129 | WB39X5010 | Drawer Guide-lh |
|
- | |||||
| 131 | WB2X831 | Slide-guide |
|
- | |||||
| 132 | WB2X2506 | Hook-door Spring |
|
- | |||||
| 133 | WB9X5076 | Spring-door |
|
- | |||||
| 134 | WB1X5497 | Screw Mtg. Support Botto |
|
- | |||||
| 134 | WB10X5091 | Support Hinge-lh |
|
- | |||||
| 134 | WB10X5090 | Support Hinge-rh |
|
- | |||||
| 134 | WB1X119 | Washer |
|
- | |||||
| 134 | WB1X5471 | Screw Mtg. Support Top |
|
- | |||||
| 135 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 139 | WB10X5092 | Hinge Lever Asm. Rh & Lh |
|
- | |||||
| 140 | WG02A00596 | Hinge Pin (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 141 | WB2X1082 | Retaining Ring |
|
- | |||||
| 142 | WB2X6196 | Insulator Barrier |
|
- | |||||
| 142 | WB24X105 | Switch Oven Light |
|
- | |||||
| 146 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 146 | WZ04X0232 | Screw Mtg. Cover |
|
- | |||||
| 148 | WZ04X0231 | Screw Mtg. Cover |
|
- | |||||
| 148 | WB49X5161 | Cover-back |
|
- | |||||
| 149 | WB1X5516 | Leveling Leg |
|
- | |||||
| 150 | WB2X6767 | Hook |
|
- | |||||
| 200 | WB14X5035 | Latch Asm. |
|
- | |||||
| 201 | WB1X438 | Screw Mtg. Handle |
|
- | |||||
| 201 | WB15X142 | Handle |
|
- | |||||
| 202 | WB3X322 | Knob |
|
- | |||||
| 203 | WG02A00753 | Retainer-knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 204 | WB2X3157 | Channel-latch |
|
- | |||||
| 205 | WB2X3158 | Channel-locking |
|
- | |||||
| 206 | WB1X458 | Screw Mtg. Plates |
|
- | |||||
| 206 | WB2X7301 | Plate-mounting |
|
- | |||||
| 207 | WZ04X0362 | Screw-channel To Latch |
|
- | |||||
| 208 | WB24X183 | Switch-latch |
|
- | |||||
| 210 | WB1X561 | Screw Mtg. Clip |
|
- | |||||
| 211 | WB24X5097 | Solenoid |
|
- | |||||
| 212 | WZ04X0374 | Screw Mtg. Solenoid |
|
- | |||||
| 213 | WB2X6212 | Pivot Stud |
|
- | |||||
| 214 | WB2X1800 | Retaining Ring |
|
- | |||||
| 215 | WB2X3159 | Pawl-locking |
|
- | |||||
| 216 | WB9X148 | Spring |
|
- | |||||
| 217 | WZ02X0503 | Screw Mtg. Latch |
|
- | |||||
| 218 | WB7X552 | Trim Latch |
|
- | |||||
| 250 | WB62X1508 | Cooktop-ad |
|
- | |||||
| 250 | WB62X1504 | Cooktop-wh |
|
- | |||||
| 250 | WB62X1505 | Cooktop-cf |
|
- | |||||
| 250 | WB62X1506 | Cooktop-fa |
|
- | |||||
| 250 | WB62X1507 | Cooktop-ha |
|
- | |||||
| 250 | WZ04X0231 | Screw Mtg. Cooktop |
|
- | |||||
| 251 | WB7X6677 | End Cap-lh |
|
- | |||||
| 251 | WB7X6676 | End Cap-rh |
|
- | |||||
| 251 | WZ05X0139 | Screw Mtg. Cap |
|
- | |||||
| 252 | WB7X1012 | Trim Cooktop-rh |
|
- | |||||
| 252 | WB7X1013 | Trim Cooktop-lh |
|
- | |||||
| 253 | WS01A01150 | Screw Mtg. Clip (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 253 | WB2X2988 | Clip Mtg. Trim |
|
- | |||||
| 254 | WB7X1100 | Deflector |
|
- | |||||
| 254 | WZ06X0038 | Screw Mtg. Deflector |
|
- | |||||
| 255 | WB49X5181 | Cover-back |
|
- | |||||
| 255 | WZ04X0231 | Screw Mtg. Back |
|
- | |||||
| 257 | WB2X6620 | Post-lh |
|
- | |||||
| 257 | WB2X6619 | Post-rh |
|
- | |||||
| 257 | WZ04X0231 | Screw-post To Body |
|
- | |||||
| 258 | WB2X6737 | Support-lh |
|
- | |||||
| 258 | WZ04X0231 | Screw Mt. Support |
|
- | |||||
| 258 | WB2X6736 | Support-rh |
|
- | |||||
| 260 | WB7X1171 | Cover Support Rh-fa |
|
- | |||||
| 260 | WZ04X0231 | Screw Mt. Cover |
|
- | |||||
| 260 | WB7X1169 | Cover Support Rh-wh |
|
- | |||||
| 260 | WB7X1170 | Cover Support Rh-cf |
|
- | |||||
| 260 | WB7X1172 | Cover Support Rh-ha |
|
- | |||||
| 260 | WB7X1173 | Cover Support Ah-ad |
|
- | |||||
| 260 | WB7X1174 | Cover Support Lh-wh |
|
- | |||||
| 260 | WB7X1175 | Cover Support Lh-cf |
|
- | |||||
| 260 | WB7X1176 | Cover Support Lh-fa |
|
- | |||||
| 260 | WB7X1177 | Cover Support Lh-ha |
|
- | |||||
| 260 | WB7X1178 | Cover Support Lh-ad |
|
- | |||||
| 261 | WB49X347 | Panel-lamp |
|
- | |||||
| 262 | WB7X1168 | Panel Crystal Lh-ad |
|
- | |||||
| 262 | WB7X1159 | Panel Crystal Rh-wh |
|
- | |||||
| 262 | WB7X1160 | Panel Crystal Rh-cf |
|
- | |||||
| 262 | WB7X1161 | Panel Crystal Rh-fa |
|
- | |||||
| 262 | WB7X1162 | Panel Crystal Rh-ha |
|
- | |||||
| 262 | WB7X1163 | Panel Crystal Rh-ad |
|
- | |||||
| 262 | WB7X1164 | Panel Crystal Lh-wh |
|
- | |||||
| 262 | WB7X1165 | Panel Crystal Lh-cf |
|
- | |||||
| 262 | WB7X1166 | Panel Crystal Lh-fa |
|
- | |||||
| 262 | WB7X1167 | Panel Crystal Lh-ha |
|
- | |||||
| 262 | WZ04X0231 | Screw Mt. Panel |
|
- | |||||
| 263 | WZ04X0209 | Screw Mt. Housing |
|
- | |||||
| 263 | WB7X983 | Lamp Housing |
|
- | |||||
| 264 | WB36X433 | Crystal |
|
- | |||||
| 265 | WB2X1667 | Clip-crystal |
|
- | |||||
| 266 | WB8X160 | Lamp Socket |
|
- | |||||
| 280 | WB1X5355 | Terminal Screws |
|
- | |||||
| 280 | WB10X218 | Surface Unit-6" |
|
- | |||||
| 282 | WB32X52 | Center Trim-6" |
|
- | |||||
| 283 | WB31X5010 | Ring Pan 6" Chrome |
|
- | |||||
| 286 | WB32X51 | Center Trim-8" |
|
- | |||||
| 287 | WB31X5011 | Ring Pan 8" Chrome |
|
- | |||||
| 288 | WZ04X0360 | Screw Mt. Receptacle |
|
- | |||||
| 288 | WB17X5051 | Receptacle Assembly |
|
- | |||||
| 289 | WB2X6171 | Insulator |
|
- | |||||
| 290 | WB2X995 | Lead Clips |
|
- | |||||
| 290 | WB2X6172 | Clip-insulator |
|
- | |||||
| 300 | WB56X5746 | Panel Door Ha |
|
- | |||||
| 300 | WB56X5743 | Panel Door Wh |
|
- | |||||
| 300 | WB56X5744 | Panel Door Cf |
|
- | |||||
| 300 | WB56X5745 | Panel Door Fa |
|
- | |||||
| 300 | WB56X5747 | Panel Door Ad |
|
- | |||||
| 301 | WB7X1101 | Trim-door |
|
- | |||||
| 302 | WB2X3053 | Speednut-trim |
|
- | |||||
| 303 | WB49X5173 | Baffle |
|
- | |||||
| 303 | WZ04X0231 | Screw Mt. Baffle |
|
- | |||||
| 304 | WB2X5410 | Cam |
|
- | |||||
| 305 | WB2X5217 | Link-cam |
|
- | |||||
| 306 | WB9X134 | Spring-cam |
|
- | |||||
| 307 | WB7X5022 | Trim Plate |
|
- | |||||
| 308 | WB36X430 | Crystal Window |
|
- | |||||
| 310 | WB2X2978 | Clip Crystal |
|
- | |||||
| 311 | WB15X147 | Handle |
|
- | |||||
| 312 | WB2X6243 | Grommet-handle |
|
- | |||||
| 313 | WB2X6204 | Spacer |
|
- | |||||
| 314 | WZ04X0289 | Screw Mt. Handle |
|
- | |||||
| 315 | WB1X119 | Washer |
|
- | |||||
| 316 | WB55X5216 | Liner Door |
|
- | |||||
| 317 | WB55X5210 | Panel-inner |
|
- | |||||
| 318 | WB2X6547 | Gasket, Door |
|
- | |||||
| 319 | WB7X722 | Trim Crystal |
|
- | |||||
| 320 | WB2X3048 | Gasket Crystal |
|
- | |||||
| 321 | WB36X6546 | Window Assembly |
|
- | |||||
| 321 | WZ04X0231 | Insulation-door |
|
- | |||||
| 322 | WB55X5218 | Guard Insulation |
|
- | |||||
| 322 | WZ04X0231 | Screw Mt. Guard |
|
- | |||||
| 323 | WZ05X0134 | Screw Mt. Slide-top |
|
- | |||||
| 323 | WB2X3040 | Slide, Shield |
|
- | |||||
| 323 | WZ04X0231 | Screw Mt. Clip |
|
- | |||||
| 324 | WB55X5217 | Shield Window |
|
- | |||||
| 326 | WB15X143 | Handle-shield Rh |
|
- | |||||
| 326 | WS01A01150 | Screw Mt. Handle (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 326 | WB15X144 | Handle, Shield Lh |
|
- | |||||
| 327 | WZ04X0304 | Screw Mt. Cover |
|
- | |||||
| 327 | WB2X3045 | Cover Assembly |
|
- | |||||
| 328 | WB9X128 | Spring-guard |
|
- | |||||
| 330 | WB9X154 | Spring-strike |
|
- | |||||
| 330 | WZ04X0304 | Screw Mt. Spring |
|
- | |||||
| 331 | WB1X537 | Screw Mt. Bracket |
|
- | |||||
| 331 | WB2X6238 | Bracket-door |
|
- | |||||
| 332 | WB2X6270 | Spacer-door |
|
- | |||||
| 333 | WB7X1031 | Trim Crystal |
|
- | |||||
| 334 | WB7X1103 | Trim Door Corner-lh |
|
- | |||||
| 334 | WB7X1102 | Trim Door Corner-rh |
|
- | |||||
| 335 | WB3X3041 | Guide And Spring Assembl |
|
- | |||||
| 335 | WB3X3042 | Guide And Spring Assembl |
|
- | |||||
| 335 | WZ04X0231 | Screw Mt. Guide And Spri |
|
- | |||||
| 336 | WB1X558 | Screw-liner Receptacle |
|
- | |||||
| 350 | WB53X5070 | Oven Liner |
|
- | |||||
| 350 | WB2X6496 | Insulation-oven Liner |
|
- | |||||
| 350 | WB1X422 | Screw Mtg. Cover |
|
- | |||||
| 350 | WB1X525 | Washer Mtg. Cover |
|
- | |||||
| 350 | WB2X3230 | Cover |
|
- | |||||
| 351 | WB1X5471 | Screw Mtg. Liner |
|
- | |||||
| 352 | WB1X119 | Washer Mtg. Liner |
|
- | |||||
| 353 | WB2X6209 | Clip-trim |
|
- | |||||
| 353 | WZ04X0291 | Screw Mtg. Trim |
|
- | |||||
| 356 | WB2X6223 | Guard Lamp |
|
- | |||||
| 356 | WZ04X0231 | Screw Mtg. Guard Lamp |
|
- | |||||
| 357 | WB8X5060 | Oven Light Socket |
|
- | |||||
| 359 | WG02F04576 | Lamp Cover Assembly (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 363 | WB2X1847 | Washer |
|
- | |||||
| 363 | WB2X1659 | Speednut |
|
- | |||||
| 363 | WZ04X0291 | Screw Mtg. |
|
- | |||||
| 367 | WZ04X0291 | Screw Mtg. Baffle |
|
- | |||||
| 367 | WB2X1626 | Baffle-vent |
|
- | |||||
| 368 | WB48X5044 | Oven Rack |
|
- | |||||
| 369 | WB48X5002 | Rack-broil Pan |
|
- | |||||
| 370 | WB49X88 | Pan Broiler |
|
- | |||||
| 371 | WB2X3253 | Retaining Clip, Mtg. Uni |
|
- | |||||
| 371 | WB1X500 | Screw Terminal |
|
- | |||||
| 371 | WB44X186 | Mullion Unit |
|
- | |||||
| 372 | WB24X175 | Thermal Switch |
|
- | |||||
| 373 | WB2X3165 | Hanger |
|
- | |||||
| 373 | WZ04X0288 | Screw Mt. Hanger |
|
- | |||||
| 374 | WZ04X0291 | Screw Mt. Plate |
|
- | |||||
| 374 | WB2X3163 | Gasket-plate |
|
$ 22.50 | |||||
| 374 | WB2X3164 | Mounting Plate |
|
- | |||||
| 374 | WB2X6215 | Clamp, Harness |
|
- | |||||
| 380 | UB592 | Bake Unit (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 380 | WB1X500 | Screw-terminal |
|
- | |||||
| 380 | WZ04X0291 | Screw Mt. Unit |
|
- | |||||
| 381 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 381 | WB1X500 | Screw-terminal |
|
- | |||||
| 381 | WB2X1543 | Gasket-broil |
|
- | |||||
| 381 | WZ04X0291 | Screw Mt. Unit |
|
- | |||||
| 382 | WB2X1452 | Support-broil |
|
- | |||||
| 382 | WZ04X0291 | Screw Mt. Support |
|
- | |||||
| 400 | WB29X45 | Smoke Eliminator |
|
- | |||||
| 400 | WB1X500 | Screw Terminal, Smoke El |
|
- | |||||
| 400 | WB2X3388 | Insul.-ceram. Terminal, |
|
- | |||||
| 400 | WZ04X0291 | Screw Mtg. Smoke Elimina |
|
- | |||||
| 450 | WB15X5121 | Handle |
|
- | |||||
| 450 | WZ04X0209 | Screw Mt. Handle |
|
- | |||||
| 451 | WB56X5741 | Panel Drawer Ha |
|
- | |||||
| 451 | WB56X5738 | Panel Drawer Wh |
|
- | |||||
| 451 | WB56X5739 | Panel Drawer Cf |
|
- | |||||
| 451 | WB56X5740 | Panel Drawer Fa |
|
- | |||||
| 451 | WB56X5742 | Panel Drawer Ad |
|
- | |||||
| 452 | WB58X5005 | Drawer Assembly |
|
- | |||||
| 453 | WB2X6208 | Bumper |
|
- | |||||
| 454 | WB2X840 | Side Top |
|
- | |||||
| 455 | WB2X841 | Slide |
|
- |
