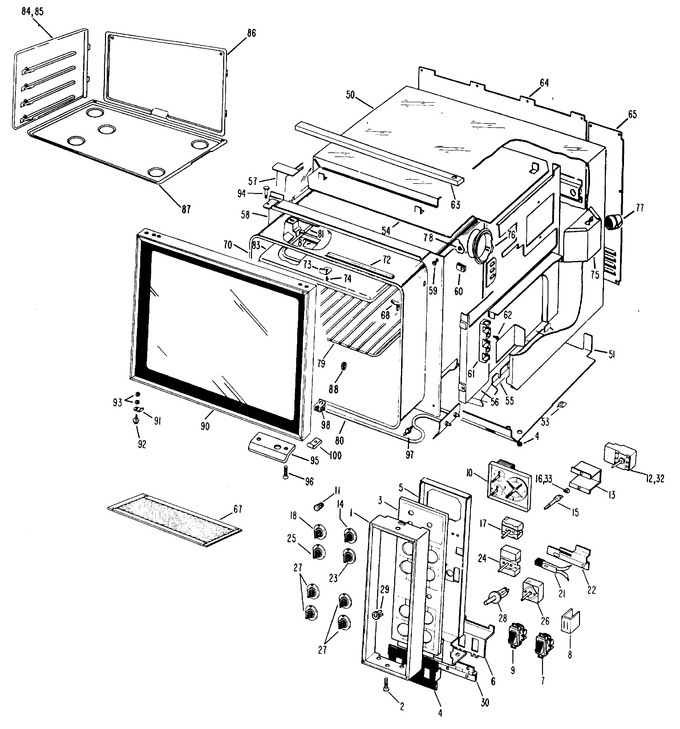

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB1X358		Speednut - Trim Top		Appelez-nous	-
1	WB7X1223		Trim Control		Appelez-nous	-
2	WZ05X0120		Screw - Bottom		Appelez-nous	-
3	WB36X5369		Crystal		Appelez-nous	-
4	WB7X985		Trim - Switches		Appelez-nous	-
5	WB2X3196		Bracket - Instrument		Appelez-nous	-
6	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
6	WB2X2996		Bracket - Switch		Appelez-nous	-
7	WB24X177		Switch Lamps		Appelez-nous	-
7	WS01A01150		Screw Mtg. Switch   (Replaces: WB1X5364)				$ 3.97
8	WB2X3008		Barrier - Switch		Appelez-nous	-
9	WB24X178		Switch - Fan		Appelez-nous	-
10	WB19X123		Timer		Appelez-nous	-
10	WB1X540		Nut Mtg. Timer		Appelez-nous	-
11	WB3X218		Knob - Timer		Appelez-nous	-
12	WZ06X0116		Screw Mtg. Thermostat		Appelez-nous	-
12	WB21X177		Thermostat - Upper Oven		Appelez-nous	-
13	WZ06X0116		Screw Mtg. Bracket		Appelez-nous	-
13	WB2X2657		Bracket - Thermostat		Appelez-nous	-
14	WB2X1608		Lamp - Upper Oven				$ 31.65
14	WB3X470		Knob - Upper Thermostat		Appelez-nous	-
15	WB2X2900		Spring Clip		Appelez-nous	-
15	WB2X2470		Shaft - Extension - Uppe		Appelez-nous	-
15	WB2X3219		Shaft Extension - Lower		Appelez-nous	-
17	WB22X79		Switch - Oven - Upper		Appelez-nous	-
18	WB3X469		Knob - Switch - Upper		Appelez-nous	-
21	WB2X1608		Lamp - Lower Oven				$ 31.65
22	WB2X3243		Bracket - Lamp		Appelez-nous	-
22	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
23	WB3X466		Knob - Lower Thermostat		Appelez-nous	-
24	WB22X5093		Switch - Lower Oven		Appelez-nous	-
24	WZ02X0528		Screw Mtg. Switch		Appelez-nous	-
25	WB2X1608		Lamp - Lock				$ 31.65
25	WB3X465		Knob - Switch Lower		Appelez-nous	-
25	WB2X1609		240v Lamp - Clean		Appelez-nous	-
26	WB21X228		Switch -inf. S.u.		Appelez-nous	-
26	WZ02X0528		Screw Mtg. Switch		Appelez-nous	-
27	WB2X1608		Lamp - S.u.				$ 31.65
27	WB3X464		Knob - Surface Unit		Appelez-nous	-
28	WB24X108		Switch - Latch Release		Appelez-nous	-
29	WB2X6497		Plug Button - Latch Swit		Appelez-nous	-
30	WZ05X0120		Screw Mtg. Hinge		Appelez-nous	-
30	WZ04X0231		Screw - Hinge To Frame		Appelez-nous	-
30	WB14X39		Hinge		Appelez-nous	-
32	WB24X184		Thermostat - Lower Oven		Appelez-nous	-
32	WZ06X0116		Screw Mtg. Thermostat		Appelez-nous	-
32	WB2X6455		Bracket, Thermostat		Appelez-nous	-
32	WB2X6274		Sleeve, Thermostat		Appelez-nous	-
33	WB2X2900		Spacer - Lower Thermosta		Appelez-nous	-
50	WB56X1456		Case Side Rh - Wh		Appelez-nous	-
50	WB56X1457		Case Side Rh - Cf		Appelez-nous	-
50	WB56X1458		Case Side Rh - Fa		Appelez-nous	-
50	WB56X1459		Case Side Rh - Ha		Appelez-nous	-
50	WB56X1461		Case Side Lh - Wh		Appelez-nous	-
50	WB56X1462		Case Side Lh - Cf		Appelez-nous	-
50	WB56X1463		Case Side Lh - Fa		Appelez-nous	-
50	WB56X1464		Case Side Lh - Ha		Appelez-nous	-
50	WB56X1465		Case Side Lh - Ad		Appelez-nous	-
50	WZ04X0231		Screw Mtg. Case		Appelez-nous	-
50	WB56X1460		Case Side Rh - Ad		Appelez-nous	-
50	WB2X2999		Angle - Brace		Appelez-nous	-
51	WB55X421		Case Bottom		Appelez-nous	-
51	WZ04X0245		Screw Mtg. Bottom		Appelez-nous	-
53	WB2X1659		Speednut		Appelez-nous	-
54	WB55X287		Top Insulation Guard		Appelez-nous	-
54	WB2X1561		Strain Relief		Appelez-nous	-
55	WB55X198		Lower Insulation Guard		Appelez-nous	-
56	WZ04X0231		Screw Mtg. Guard		Appelez-nous	-
56	WB55X290		Center Insulation Guard		Appelez-nous	-
57	WB49X179		Air Duct		Appelez-nous	-
58	WB56X5768		Frame		Appelez-nous	-
59	WZ05X0120		Screw Mtg. Frame		Appelez-nous	-
60	WB1X365		Clip - Frame		Appelez-nous	-
61	WB17X167		Terminal Block		Appelez-nous	-
62	WZ04X0344		Screw Mtg. Block		Appelez-nous	-
63	WB1X528		Clip - Deflector		Appelez-nous	-
63	WB7X776		Deflector		Appelez-nous	-
63	WZ04X0231		Screw Mtg. Deflector		Appelez-nous	-
64	WB49X300		Cover - Back		Appelez-nous	-
65	WB49X301		Cover - Instrument		Appelez-nous	-
65	WZ04X0231		Screw Mtg. Covers		Appelez-nous	-
67	WB2X1666		Filter		Appelez-nous	-
67	WB2X1665		Clip - Filter		Appelez-nous	-
68	WB2X596		Clip - Capillary Tube		Appelez-nous	-
70	WB2X1511		Insulation		Appelez-nous	-
70	WB53X5078		Oven Liner		Appelez-nous	-
72	WB2X2957		Gasket		Appelez-nous	-
73	WB2X6209		Trim Clip		Appelez-nous	-
74	WB1X5471		Screw Mtg. Clip		Appelez-nous	-
75	WB2X1520		Shield - Oven Lamp		Appelez-nous	-
76	WB36X126		Glass - Oven Lamp		Appelez-nous	-
77	WB8X191		Receptacle		Appelez-nous	-
78	WZ04X0245		Screw - Glass		Appelez-nous	-
78	WB1X119		Washer - Screw		Appelez-nous	-
79	WB48X90		Oven Rack		Appelez-nous	-
80	WB44X195		Bake Unit		Appelez-nous	-
80	WZ04X0231		Screw Mtg. Unit		Appelez-nous	-
81	WB44X139		Broil Unit				$ 129.34
82	WB2X1509		Support - Unit		Appelez-nous	-
82	WZ04X0231		Screw Mtg. Unit & Suppor		Appelez-nous	-
83	WB39X139		Reflector Broil		Appelez-nous	-
84	WB56X1046		Panel - Lh		Appelez-nous	-
85	WB56X1282		Panel - Rh		Appelez-nous	-
86	WB56X1048		Panel Rear		Appelez-nous	-
87	WB56X1049		Panel Bottom		Appelez-nous	-
88	WB2X1126		Plug Button		Appelez-nous	-
90	WB56X5770		Door - Oven (v2)		Appelez-nous	-
90	WB56X1154		Door - Oven (v1)		Appelez-nous	-
90	WB56X5791		Door- Oven (v3 - Up)		Appelez-nous	-
91	WB2X1658		Plate Friction		Appelez-nous	-
92	WB1X400		Screw Plate		Appelez-nous	-
93	WB1X365		Speednut - Bottom		Appelez-nous	-
93	WZ05X0120		Screw		Appelez-nous	-
93	WB4X401		Washer - Screw		Appelez-nous	-
94	WB1X529		Pin - Hinge Top		Appelez-nous	-
95	WB15X126		Handle		Appelez-nous	-
96	WZ05X0120		Screw Mtg. Handle		Appelez-nous	-
97	WB1X5508		Strike Asm. Door		Appelez-nous	-
98	WB2X1570		Catch		Appelez-nous	-
100	WB2X1742		Clamp - Wiring		Appelez-nous	-
100	WB1X488		Screw Guide		Appelez-nous	-
100	WB2X2785		Guide Door (v2-up)		Appelez-nous	-
130	WB39X5011		Drawer Guide - Rh		Appelez-nous	-
130	WZ04X0231		Screw Mtg. Guide		Appelez-nous	-
259	WB2X3001		Spacer - Post		Appelez-nous	-
284	WB1X5355		Terminal Screws		Appelez-nous	-
284	PS240M		Surface Unsit - 8"   (Replaces: WB30X219)			Immediately	$ 44.95
