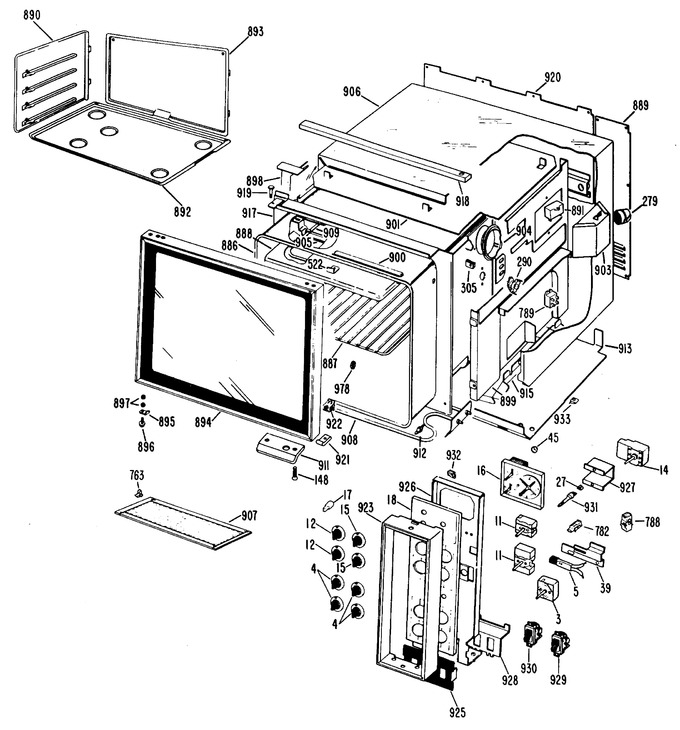

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5677		Knob Surface Unit		Appelez-nous	-
5	WB2X3468		Neon Lamp 240v		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
11	WB22X79		Switch, Oven		Appelez-nous	-
11	WB22X5103		Switch, Oven		Appelez-nous	-
12	WB3X5683		Knob Oven Switch		Appelez-nous	-
12	WB3X5678		Knob Oven Switch		Appelez-nous	-
14	WB21X5208		Thermostat Upper Oven		Appelez-nous	-
14	WB24X184		Thermostat, Dual		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
15	WB3X5686		Knob Thermostat		Appelez-nous	-
15	WB3X5685		Knob Thermostat		Appelez-nous	-
16	WB19X123		Timer		Appelez-nous	-
17	WB3X459		Knob Timer		Appelez-nous	-
18	WB2X6240		Pad		Appelez-nous	-
18	WB2X3232		Pad Crystal		Appelez-nous	-
18	WB36X5612		Crystal		Appelez-nous	-
27	WB2X2900		Spacer Switches & Thermo		Appelez-nous	-
39	WB2X3243		Bracket Lamp		Appelez-nous	-
45	WB1X540		Nut		Appelez-nous	-
148	WZ04X0237		Screw		Appelez-nous	-
279	WB8X191		Receptacle		Appelez-nous	-
279	WB8X5095		Receptacle		Appelez-nous	-
290	WB24X5239		Switch, Thermal Fan		Appelez-nous	-
305	WB2X6653		Speednut		Appelez-nous	-
522	WB2X6209		Clip Trim		Appelez-nous	-
763	WB2X1665		Clip Filter		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
788	WB17X5064		Housing Socket Pkg 4 P1n		Appelez-nous	-
789	WB27X5271		Relay		Appelez-nous	-
826	WB2X3001		Spacer Post		Appelez-nous	-
827	WB2X2999		Angle Brace		Appelez-nous	-
829	WB2X190		Clip Spring		Appelez-nous	-
830	WB2X3463		Spacer "d" Ring		Appelez-nous	-
886	WB2X1511		Insulation		Appelez-nous	-
886	WB53X5109		Oven Liner		Appelez-nous	-
887	WB48X90		Rack Oven		Appelez-nous	-
888	WB49X139		Reflector Broil		Appelez-nous	-
889	WB49X301		Cover Instrument		Appelez-nous	-
890	WB56X6057		Panel Asm Rh		Appelez-nous	-
890	WB56X6056		Panel Asm Lh		Appelez-nous	-
891	WR62X43		Capacitor		Appelez-nous	-
892	WB56X6058		Panel Bottom		Appelez-nous	-
893	WB56X6059		Panel Rear		Appelez-nous	-
894	WB56X6024		Door Oven		Appelez-nous	-
895	WB2X1658		Plate Friction		Appelez-nous	-
896	WB1X400		Screw		Appelez-nous	-
897	WB1X401		Washer		Appelez-nous	-
898	WB49X179		Duct Air		Appelez-nous	-
899	WB55X5323		Guard Insulation		Appelez-nous	-
900	WB2X2957		Gasket Silicone Up Oven		Appelez-nous	-
901	WB55X5324		Guard Insulation Top		Appelez-nous	-
903	WB2X1520		Shield Oven Lamp		Appelez-nous	-
904	WB36X126		Glass Oven Lamp		Appelez-nous	-
905	WB2X1509		Support Broil		Appelez-nous	-
906	WB56X1465		Case Side Lh Ad		Appelez-nous	-
906	WB56X1456		Case Side Rh Wh		Appelez-nous	-
906	WB56X1459		Case Side Rh Ha		Appelez-nous	-
906	WB56X1460		Case Side Rh Ad		Appelez-nous	-
906	WB56X1461		Case Side Lh Wh		Appelez-nous	-
906	WB56X1464		Case Side Lh Ha		Appelez-nous	-
907	WB2X1666		Filter		Appelez-nous	-
908	WB44X195		Bake Unit Upper Oven		Appelez-nous	-
909	WB44X139		Broil Unit Upper Oven				$ 129.34
911	WB15X5165		Handle		Appelez-nous	-
912	WB1X5508		Strike Asm Door		Appelez-nous	-
913	WB55X421		Bottom Case		Appelez-nous	-
915	WB55X198		Guard Insulation Lower		Appelez-nous	-
917	WB56X5768		Frame Asm		Appelez-nous	-
918	WB7X776		Deflector		Appelez-nous	-
919	WB1X529		Pin Hinge		Appelez-nous	-
920	WB49X300		Cover Back		Appelez-nous	-
921	WB2X2785		Guide Door		Appelez-nous	-
922	WB2X1570		Catch Spring		Appelez-nous	-
923	WB7X1223		Trim Control		Appelez-nous	-
925	WB7X985		Trim Switch		Appelez-nous	-
926	WB2X3196		Bracket Instrument		Appelez-nous	-
927	WB2X6455		Bracket Thermo Lower		Appelez-nous	-
927	WB2X2657		Bracket Thermo Upper		Appelez-nous	-
928	WB2X2996		Bracket Switch		Appelez-nous	-
929	WB24X177		Switch, Lamps		Appelez-nous	-
930	WB24X178		Switch, Fan		Appelez-nous	-
931	WB2X3219		Ext Shaft Lower Thermo		Appelez-nous	-
931	WB2X2470		Ext Shaft Upper Thermo		Appelez-nous	-
932	WB1X358		Speednut		Appelez-nous	-
933	WB2X1667		Clip		Appelez-nous	-
978	WB2X1126		Plug Button		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
