SELECT A DIAGRAM

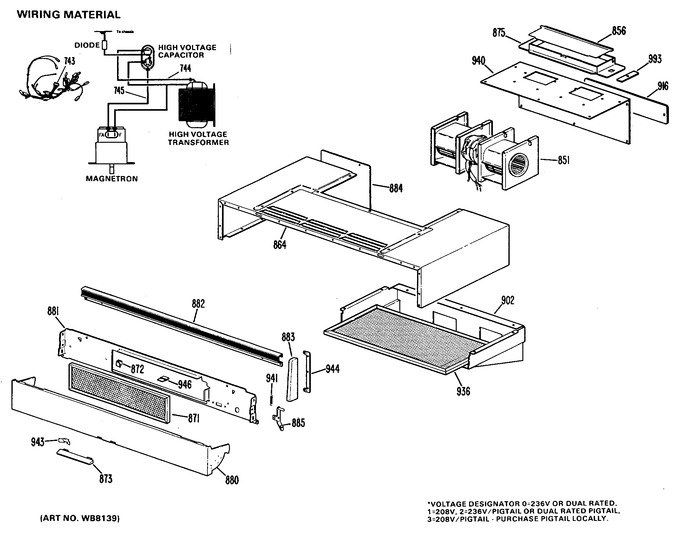

1 - Wiring Material


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WB25X65		Jewel		Appelez-nous	-
148	WB1X5763		Screw		Appelez-nous	-
459	WB1X537		Screw		Appelez-nous	-
461	WB1X593		Screw Mtg Clip		Appelez-nous	-
740	WB2X7226		Clip Wire Black		Appelez-nous	-
743	WB18X5098		Wire Harness		Appelez-nous	-
744	WB18X5096		Lead Wire		Appelez-nous	-
745	WB18X5097		Lead Wire		Appelez-nous	-
773	WB27X254		Capacitor		Appelez-nous	-
851	WB26X5083		Blower Motor		Appelez-nous	-
856	WB2X7764		Damper		Appelez-nous	-
864	WB56X6076		Hood Body Ad		Appelez-nous	-
864	WB56X6075		Hood Body Ha		Appelez-nous	-
864	WB56X6074		Hood Body Wh		Appelez-nous	-
871	WB2X7758		Filter Grease		Appelez-nous	-
872	WB2X1583		Clip Hood Filter		Appelez-nous	-
873	WB15X5138		Handle Hood Panel		Appelez-nous	-
875	WB49X5935		Exhaust Asm		Appelez-nous	-
880	WB56X5896		Panel Hood		Appelez-nous	-
881	WB49X5390		Plate Filter		Appelez-nous	-
882	WB7X6793		Trim Hood		Appelez-nous	-
883	WB7X6791		End Cap Rh		Appelez-nous	-
883	WB7X6792		End Cap Lh		Appelez-nous	-
884	WB2X2017		Cover Back		Appelez-nous	-
885	WB2X7216		Spring & Pin Asm		Appelez-nous	-
902	WB49X5391		Plenum Air		Appelez-nous	-
916	WB2X7759		Cover		Appelez-nous	-
940	WB2X7760		Cover Housing		Appelez-nous	-
941	WB9X5099		Spring		Appelez-nous	-
943	WB2X7217		Clip Retainer		Appelez-nous	-
944	WB2X3461		Bracket Mounting		Appelez-nous	-
946	WB2X6734		Clip Filter		Appelez-nous	-
989	WB1X425		Screw		Appelez-nous	-
993	WB2X7765		Plate		Appelez-nous	-
1201	WS01A01150		Screw   (Replaces: WB1X5364)				$ 3.97
1458	WB17X5073		Terminal Blk Asm (1 Pin)		Appelez-nous	-
1514	WB2X7510		Spacer Rack		Appelez-nous	-
32767	49-4824		Users Manual		Appelez-nous	-
32767	31-0649		Install Instr		Appelez-nous	-
32767	49-4706		Cookbook		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
