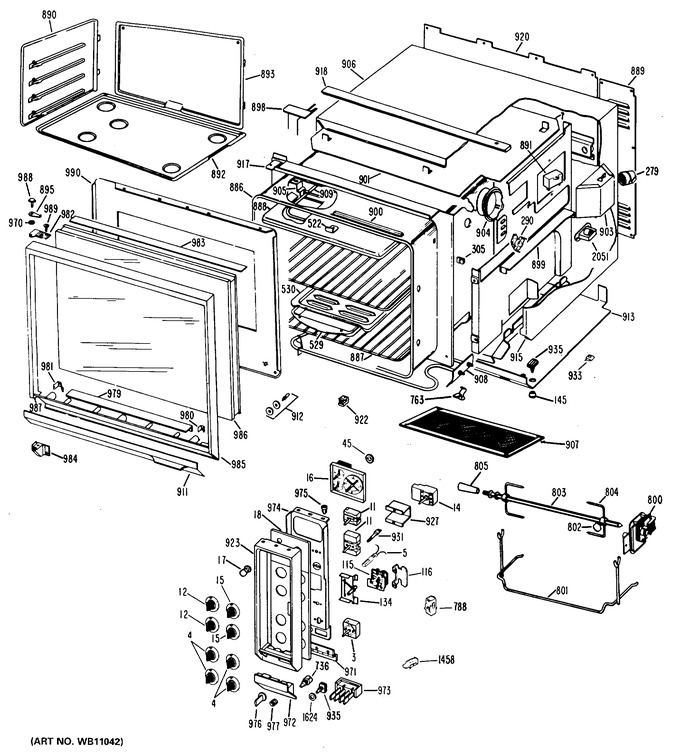

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X477 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 11 | WB22X35 | Switch, Oven |
|
- | |||||
| 11 | WB22X5102 | Switch, Oven |
|
- | |||||
| 12 | WB3X494 | Knob Oven Switch |
|
- | |||||
| 12 | WB3X462 | Knob Oven Switch |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X463 | Knob Thermostat |
|
- | |||||
| 15 | WB3X495 | Knob Thermosat |
|
- | |||||
| 16 | WB19X123 | Timer |
|
- | |||||
| 17 | WB3X5485 | Knob Timer & Meter |
|
- | |||||
| 18 | WB2X6240 | Pad |
|
- | |||||
| 18 | WB36X5621 | Crystal |
|
- | |||||
| 45 | WB1X540 | Nut |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm Thermo |
|
- | |||||
| 116 | WB2X3148 | Bracket Circuit Board |
|
- | |||||
| 134 | WB7X981 | Faceplate & Shaft Asm |
|
- | |||||
| 145 | WB1X246 | Nut Switch |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 290 | WB24X5239 | Switch, Thermal Fan |
|
- | |||||
| 305 | WB2X6653 | Speednut |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 529 | WB49X5379 | Broil Pan Small |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 736 | WB24X5245 | Switch, Fan |
|
- | |||||
| 763 | WB2X1665 | Clip Filter |
|
- | |||||
| 788 | WB17X5079 | Housing Socket Pkg 6 Pin |
|
- | |||||
| 788 | WB17X5064 | Housing Socket Pkg 4 P1n |
|
- | |||||
| 800 | WB2X1944 | Clip Motor |
|
- | |||||
| 800 | WB26X5054 | Motor Rotisserie |
|
- | |||||
| 801 | WB48X62 | Support Spit |
|
- | |||||
| 802 | WB1X272 | Screw Thumb |
|
- | |||||
| 803 | WB2X1529 | Spit Blade |
|
- | |||||
| 804 | WB2X1167 | Skewer Asm |
|
- | |||||
| 805 | WB15X80 | Handle Spit |
|
- | |||||
| 827 | WB2X2999 | Angle Brace |
|
- | |||||
| 829 | WB2X190 | Clip Spring |
|
- | |||||
| 886 | WB2X1511 | Insulation |
|
- | |||||
| 886 | WB53X5109 | Oven Liner |
|
- | |||||
| 887 | WB48X90 | Rack Oven |
|
- | |||||
| 888 | WB49X5464 | Reflector |
|
- | |||||
| 889 | WB49X301 | Cover Instrument |
|
- | |||||
| 890 | WB56X6056 | Panel Asm Lh |
|
- | |||||
| 890 | WB56X6060 | Panel Asm Rh |
|
- | |||||
| 891 | WR62X43 | Capacitor |
|
- | |||||
| 892 | WB56X6058 | Panel Bottom |
|
- | |||||
| 893 | WB56X6059 | Panel Rear |
|
- | |||||
| 895 | WB2X2655 | Plate Friction |
|
- | |||||
| 898 | WB49X179 | Duct Air |
|
- | |||||
| 899 | WB55X5323 | Guard Insulation |
|
- | |||||
| 900 | WB2X2957 | Gasket Silicone Up Oven |
|
- | |||||
| 901 | WB55X5324 | Guard Insulation Top |
|
- | |||||
| 903 | WB2X1520 | Shield Oven Lamp |
|
- | |||||
| 904 | WB36X126 | Glass Oven Lamp |
|
- | |||||
| 905 | WB2X1509 | Support Broil |
|
- | |||||
| 906 | WB56X1459 | Case Side Rh Ha |
|
- | |||||
| 906 | WB56X1460 | Case Side Rh Ad |
|
- | |||||
| 906 | WB56X1461 | Case Side Lh Wh |
|
- | |||||
| 906 | WB56X1464 | Case Side Lh Ha |
|
- | |||||
| 906 | WB56X1465 | Case Side Lh Ad |
|
- | |||||
| 906 | WB56X1456 | Case Side Rh Wh |
|
- | |||||
| 907 | WB2X1666 | Filter |
|
- | |||||
| 908 | WB44X195 | Bake Unit Upper Oven |
|
- | |||||
| 909 | WB44X139 | Broil Unit Upper Oven |
|
$ 129.34 | |||||
| 911 | WB15X111 | Handle Door |
|
- | |||||
| 912 | WB1X5508 | Strike Asm Door |
|
- | |||||
| 913 | WB55X396 | Bottom Case |
|
- | |||||
| 915 | WB55X198 | Guard Insulation Lower |
|
- | |||||
| 917 | WB56X5802 | Frame Asm |
|
- | |||||
| 918 | WB7X776 | Deflector |
|
- | |||||
| 920 | WB49X5463 | Cover Back |
|
- | |||||
| 922 | WB2X1570 | Catch Spring |
|
- | |||||
| 923 | WB7X779 | Trim Control Panel |
|
- | |||||
| 927 | WB2X6455 | Bracket Thermo Lower |
|
- | |||||
| 927 | WB2X2657 | Bracket Thermo Upper |
|
- | |||||
| 931 | WB2X3464 | Extension Shaft |
|
- | |||||
| 931 | WB2X3219 | Ext Shaft Lower Thermo |
|
- | |||||
| 933 | WB2X1667 | Clip |
|
- | |||||
| 935 | WB24X169 | Switch Light |
|
- | |||||
| 970 | WB1X517 | Washer |
|
- | |||||
| 971 | WB14X38 | Hinge |
|
- | |||||
| 973 | WB23X74 | Switch, 4-6-8" S.u. |
|
- | |||||
| 974 | WB2X3197 | Bracket Instrument |
|
- | |||||
| 975 | WB1X519 | Nut Expansion |
|
- | |||||
| 976 | WB2X2658 | Pushbutton |
|
- | |||||
| 977 | WB9X117 | Spring Compression |
|
- | |||||
| 979 | WB2X2651 | Bracket Window |
|
- | |||||
| 980 | WB2X2652 | Clip Handle |
|
- | |||||
| 981 | WB2X2653 | Clip Spring Handle |
|
- | |||||
| 982 | WB2X2654 | Plate Hinge |
|
- | |||||
| 983 | WB2X2823 | Gasket |
|
- | |||||
| 984 | WB7X777 | Trim Hinge |
|
- | |||||
| 985 | WB7X778 | Frame Door |
|
- | |||||
| 986 | WB36X5620 | Window |
|
- | |||||
| 987 | WB1X459 | Spring Dowel Pin |
|
- | |||||
| 988 | WB1X518 | Scr 10-24 M Ihw 1/2s Ext |
|
- | |||||
| 989 | WB1X425 | Screw |
|
- | |||||
| 990 | WB55X289 | Liner Door |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 2051 | WB20X57 | Transformer |
|
- |
