View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Blower Parts Only

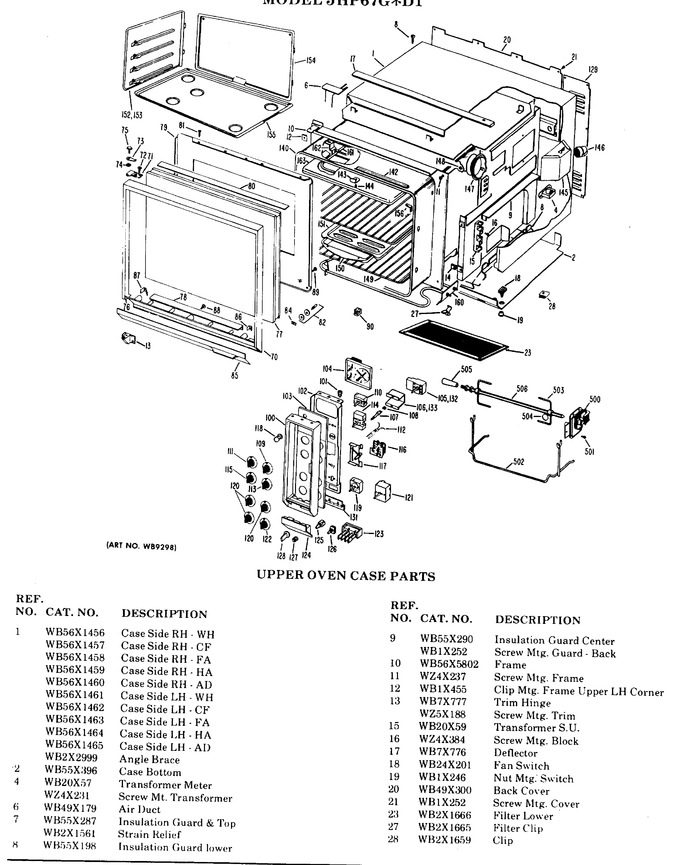

2 - Upper Oven Case Parts
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WZ04X0231 | Screw Mt. Body To Case |
|
- | |||||
| 4 | WB3X477 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 9 | WB1X252 | Screw Mtg. Guard - Back |
|
- | |||||
| 11 | WB22X35 | Switch, Oven |
|
- | |||||
| 11 | WB22X5092 | Switch, Oven |
|
- | |||||
| 12 | WB3X494 | Knob Oven Switch |
|
- | |||||
| 12 | WB3X462 | Knob Oven Switch |
|
- | |||||
| 12 | WB1X455 | Clip Mtg. Frame Upper Lh |
|
- | |||||
| 13 | WZ05X0188 | Scr 6-20 Bt Flr 1/2 S |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X463 | Knob Thermostat |
|
- | |||||
| 15 | WB3X495 | Knob Thermosat |
|
- | |||||
| 16 | WB19X123 | Timer |
|
- | |||||
| 17 | WB3X5485 | Knob Timer & Meter |
|
- | |||||
| 18 | WB36X511 | Crystal |
|
- | |||||
| 45 | WB1X540 | Nut |
|
- | |||||
| 72 | WB20X59 | Transformer |
|
- | |||||
| 73 | WB3X478 | Knob Responder |
|
- | |||||
| 74 | WB21X231 | Responder, Surface Unit |
|
- | |||||
| 89 | WZ05X0187 | Scr 8-32 T Ovr 1/2 S |
|
- | |||||
| 105 | WB1X521 | Screw Mt. Thermostat |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm Thermo |
|
- | |||||
| 118 | WS01A02255 | Screw Mt. Meter (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 119 | WZ02X0528 | Screw Mt. Switch |
|
- | |||||
| 119 | WB21X239 | Sw. Surface Unit |
|
- | |||||
| 121 | WB1X277 | Screw Mt. Responder |
|
- | |||||
| 124 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 126 | 15106 | Switch Oven Light (Replaces: WB24X103) |
|
$ 10.77 | |||||
| 134 | WB7X981 | Faceplate & Shaft Asm |
|
- | |||||
| 145 | WB1X246 | Nut Switch |
|
- | |||||
| 148 | WZ04X0245 | Scr 8-18 Ab Phr 5/8 S |
|
- | |||||
| 148 | WZ04X0237 | Screw |
|
- | |||||
| 156 | WB2X596 | Capillary Tube Clip |
|
- | |||||
| 182 | WZ04X0336 | Scr 8-18 Ab Ovr 3/8 S#6h |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 401 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 412 | WB2X1659 | Speednut |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 529 | WB49X75 | Broil Pan Small |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 763 | WB2X1665 | Clip Filter |
|
- | |||||
| 827 | WB2X2999 | Angle Brace |
|
- | |||||
| 829 | WB2X190 | Clip Spring |
|
- | |||||
| 886 | WB53X5078 | Oven Liner |
|
- | |||||
| 886 | WB2X1511 | Insulation |
|
- | |||||
| 887 | WB48X90 | Rack Oven |
|
- | |||||
| 888 | WB49X139 | Reflector Broil |
|
- | |||||
| 889 | WB49X301 | Cover Instrument |
|
- | |||||
| 890 | WB56X1046 | Panel Asm Lh |
|
- | |||||
| 890 | WB56X1047 | Panel Asm Rh |
|
- | |||||
| 892 | WB56X1049 | Panel Bottom |
|
- | |||||
| 893 | WB56X1048 | Panel Rear |
|
- | |||||
| 895 | WB2X2655 | Plate Friction |
|
- | |||||
| 898 | WB49X179 | Duct Air |
|
- | |||||
| 899 | WB55X290 | Insulation Guard Asm |
|
- | |||||
| 900 | WB2X2957 | Gasket Silicone Up Oven |
|
- | |||||
| 901 | WB2X1561 | Strain Relief |
|
- | |||||
| 901 | WB55X287 | Guard Top Insulation |
|
- | |||||
| 903 | WB2X1520 | Shield Oven Lamp |
|
- | |||||
| 904 | WB36X126 | Glass Oven Lamp |
|
- | |||||
| 905 | WB2X1509 | Support Broil |
|
- | |||||
| 906 | WB56X1460 | Case Side Rh Ad |
|
- | |||||
| 906 | WB56X1461 | Case Side Lh Wh |
|
- | |||||
| 906 | WB56X1462 | Case Side Lh Cf |
|
- | |||||
| 906 | WB56X1463 | Case Side Lh Fa |
|
- | |||||
| 906 | WB56X1464 | Case Side Lh Ha |
|
- | |||||
| 906 | WB56X1465 | Case Side Lh Ad |
|
- | |||||
| 906 | WB56X1456 | Case Side Rh Wh |
|
- | |||||
| 906 | WB56X1458 | Case Side Rh Fa |
|
- | |||||
| 906 | WB56X1459 | Case Side Rh Ha |
|
- | |||||
| 906 | WB56X1457 | Case Side Rh Cf |
|
- | |||||
| 907 | WB2X1666 | Filter |
|
- | |||||
| 908 | WB44X195 | Bake Unit Upper Oven |
|
- | |||||
| 909 | WB44X139 | Broil Unit Upper Oven |
|
$ 129.34 | |||||
| 911 | WB15X111 | Handle & Insert Asm |
|
- | |||||
| 912 | WB1X5508 | Strike Asm Door |
|
- | |||||
| 913 | WB55X396 | Bottom Case |
|
- | |||||
| 915 | WB55X198 | Guard Insulation Lower |
|
- | |||||
| 917 | WB56X5802 | Frame Asm |
|
- | |||||
| 918 | WB7X776 | Deflector |
|
- | |||||
| 920 | WB49X300 | Cover Back |
|
- | |||||
| 922 | WB2X1570 | Catch Spring |
|
- | |||||
| 923 | WB7X779 | Trim Control Panel |
|
- | |||||
| 927 | WB2X6455 | Bracket Thermo Lower |
|
- | |||||
| 927 | WB2X2657 | Bracket Thermo Upper |
|
- | |||||
| 931 | WB2X3464 | Extension Shaft |
|
- | |||||
| 931 | WB2X3219 | Ext Shaft Lower Thermo |
|
- | |||||
| 935 | WB24X201 | Switch, Fan |
|
- | |||||
| 970 | WB1X517 | Washer |
|
- | |||||
| 971 | WB14X38 | Hinge |
|
- | |||||
| 972 | WB7X780 | Trim Pushbutton |
|
- | |||||
| 973 | WB23X74 | Switch, 4-6-8" S.u. |
|
- | |||||
| 974 | WB2X3197 | Bracket Instrument |
|
- | |||||
| 975 | WB1X519 | Nut Expansion |
|
- | |||||
| 976 | WB2X2658 | Pushbutton |
|
- | |||||
| 977 | WB9X117 | Spring Compression |
|
- | |||||
| 979 | WB2X2651 | Bracket Window |
|
- | |||||
| 980 | WB2X2652 | Clip Handle |
|
- | |||||
| 981 | WB2X2653 | Clip Spring Handle |
|
- | |||||
| 982 | WB2X2654 | Plate Hinge |
|
- | |||||
| 983 | WB2X2823 | Gasket |
|
- | |||||
| 984 | WB7X777 | Trim Hinge |
|
- | |||||
| 985 | WB7X778 | Frame Door |
|
- | |||||
| 986 | WB36X349 | Window |
|
- | |||||
| 987 | WB1X459 | Spring Dowel Pin |
|
- | |||||
| 988 | WB1X518 | Scr 10-24 M Ihw 1/2s Ext |
|
- | |||||
| 989 | WB1X425 | Screw |
|
- | |||||
| 990 | WB55X289 | Liner Door |
|
- | |||||
| 1622 | WB24X5093 | Switch, Light |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 2051 | WB20X57 | Transformer |
|
- |
