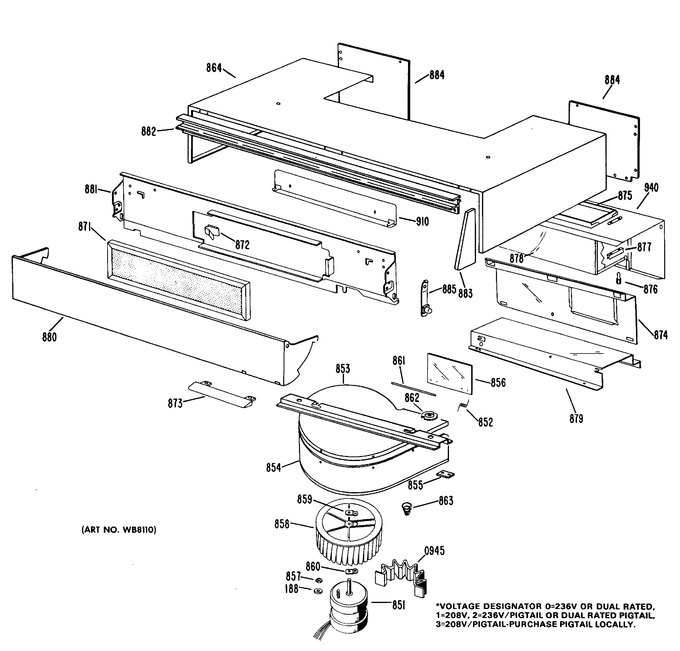

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5292 | Cooktop Ha |
|
- | |||||
| 1 | WB62X5293 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5247 | Cooktop Cf |
|
- | |||||
| 1 | WB62X5327 | Cooktop Sl |
|
- | |||||
| 1 | WB62X5291 | Cooktop Fa |
|
- | |||||
| 1 | WB62X5326 | Cooktop Ds |
|
- | |||||
| 1 | WB62X5290 | Cooktop Wh |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 148 | WZ04X0237 | Screw |
|
- | |||||
| 188 | WZ10X0114 | Lockwasher |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB2X6215 | Clamp Harness |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 305 | WB2X6653 | Speednut |
|
- | |||||
| 309 | WB2X6767 | Hook Wire |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 456 | WZ04X0209 | Handle Screw |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 654 | WZ10X0114 | Lockwasher |
|
- | |||||
| 717 | WB2X6911 | Bracket Latch |
|
- | |||||
| 788 | WB17X5079 | Housing Socket Pkg 6 Pin |
|
- | |||||
| 788 | WB17X5064 | Housing Socket Pkg 4 P1n |
|
- | |||||
| 790 | WB1X365 | Speednut |
|
- | |||||
| 851 | WB26X27 | Motor Blower |
|
- | |||||
| 852 | WB9X72 | Spring Damper |
|
- | |||||
| 853 | WB49X216 | Housing Blower Top |
|
- | |||||
| 854 | WB49X217 | Housing Blower Bottom |
|
- | |||||
| 855 | WB2X3239 | Strap |
|
- | |||||
| 856 | WB2X2235 | Damper |
|
- | |||||
| 857 | WZ07X0030 | Nut |
|
- | |||||
| 858 | WB2X3456 | Wheel Blower |
|
- | |||||
| 859 | WB2X3457 | Clamp |
|
- | |||||
| 860 | WB2X3458 | Clamp |
|
- | |||||
| 861 | WB2X1581 | Wire |
|
- | |||||
| 862 | WB2X2015 | Retainer |
|
- | |||||
| 863 | WB9X73 | Spring Blower Mount |
|
- | |||||
| 864 | WB62X5325 | Hood Body Sl |
|
- | |||||
| 864 | WB62X1499 | Hood Body Wh |
|
- | |||||
| 864 | WB62X1500 | Hood Body Cf |
|
- | |||||
| 864 | WB62X1501 | Hood Body Fa |
|
- | |||||
| 864 | WB62X1502 | Hood Body Ha |
|
- | |||||
| 864 | WB62X1503 | Hood Body Ad |
|
- | |||||
| 864 | WB62X5324 | Hood Body Ds |
|
- | |||||
| 865 | WB2X6736 | Support Rh |
|
- | |||||
| 866 | WB7X1176 | Cover Support Lh Fa |
|
- | |||||
| 866 | WB7X1178 | Cover Support Lh Ad |
|
- | |||||
| 866 | WB7X6858 | Cover Support Rh Sd |
|
- | |||||
| 866 | WB7X6859 | Cover Support Lh Ds |
|
- | |||||
| 866 | WB7X6857 | Cover Support Rh Ds |
|
- | |||||
| 866 | WB7X6860 | Cover Support Lh Sl |
|
- | |||||
| 866 | WB7X1177 | Cover Support Lh Ha |
|
- | |||||
| 866 | WB7X1170 | Cover Support Rh Cf |
|
- | |||||
| 866 | WB7X1171 | Cover Support Rh Fa |
|
- | |||||
| 866 | WB7X1174 | Cover Support Lh Wh |
|
- | |||||
| 866 | WB7X1173 | Cover Support Rh Ad |
|
- | |||||
| 866 | WB7X1169 | Cover Support Rh Wh |
|
- | |||||
| 866 | WB7X1172 | Cover Support Rh Ha |
|
- | |||||
| 866 | WB7X1175 | Cover Support Lh Cf |
|
- | |||||
| 867 | WB49X347 | Panel Lamp |
|
- | |||||
| 871 | WB2X6731 | Filter Grease |
|
- | |||||
| 872 | WB2X1583 | Clip Hood Filter |
|
- | |||||
| 873 | WB15X109 | Handle Hood Panel |
|
- | |||||
| 874 | WB49X218 | Cover Inner |
|
- | |||||
| 875 | WB49X182 | Exhaust Asm |
|
- | |||||
| 876 | WB1X426 | Stud Ball |
|
- | |||||
| 877 | WB2X2016 | Receiver Stud |
|
- | |||||
| 878 | WB49X183 | Guide Air |
|
- | |||||
| 879 | WB49X181 | Support Slide |
|
- | |||||
| 880 | WB56X923 | Panel Hood |
|
- | |||||
| 881 | WB2X2629 | Plate Filter |
|
- | |||||
| 882 | WB7X772 | Trim Hood |
|
- | |||||
| 883 | WB7X771 | End Cap Lh |
|
- | |||||
| 883 | WB2X3432 | Pad |
|
- | |||||
| 883 | WB7X770 | End Cap Rh |
|
- | |||||
| 884 | WB2X2017 | Cover Back |
|
- | |||||
| 885 | WB2X3131 | Spring & Pin Asm |
|
- | |||||
| 901 | WB2X1561 | Strain Relief |
|
- | |||||
| 901 | WB55X287 | Guard Top Insulation |
|
- | |||||
| 910 | WB49X180 | Deflector Air |
|
- | |||||
| 931 | WB2X3464 | Extension Shaft |
|
- | |||||
| 935 | WB24X169 | Switch Light |
|
- | |||||
| 940 | WB49X184 | Cover Asm |
|
- | |||||
| 945 | WB2X3145 | Fins Motor |
|
- | |||||
| 945 | WB2X3146 | Clip Motor Fins |
|
- | |||||
| 975 | WB1X519 | Nut Expansion |
|
- | |||||
| 987 | WB1X459 | Spring Dowel Pin |
|
- | |||||
| 991 | WB2X3006 | Clip Tubular |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 9999 | 49-4537 | Manual Users |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WB2X1579 | Pad |
|
- | |||||
| 32767 | WB2X1511 | Insulation |
|
- | |||||
| 32767 | WZ04X0289 | Scr 8-18 Ab Hx 1/4 S |
|
- | |||||
| 32767 | WZ02X0529 | Screw |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0245 | Scr 8-18 Ab Phr 5/8 S |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 32767 | WZ05X0184 | Scr 6-20 Bt Phr 3/8 S |
|
- | |||||
| 32767 | WB1X5520 | Speednut |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | WZ04X0419 | Scr 10-16 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB2X6659 | Pad |
|
- | |||||
| 32767 | 31-0423 | Install Instructions |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ05X0120 | Screw |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ05X0187 | Scr 8-32 T Ovr 1/2 S |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WZ04X0336 | Scr 8-18 Ab Ovr 3/8 S#6h |
|
- | |||||
| 32767 | WB2X3238 | Pad |
|
- | |||||
| 32767 | WZ06X0092 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 32767 | WB1X5508 | Washer |
|
- | |||||
| 32767 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB2X6274 | Sleeve |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WZ05X0188 | Scr 6-20 Bt Flr 1/2 S |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WB7X5645 | Trim Cooktop Front |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 32767 | WB2X2107 | Sleeve Detent |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB2X1222 | Pad |
|
- |
