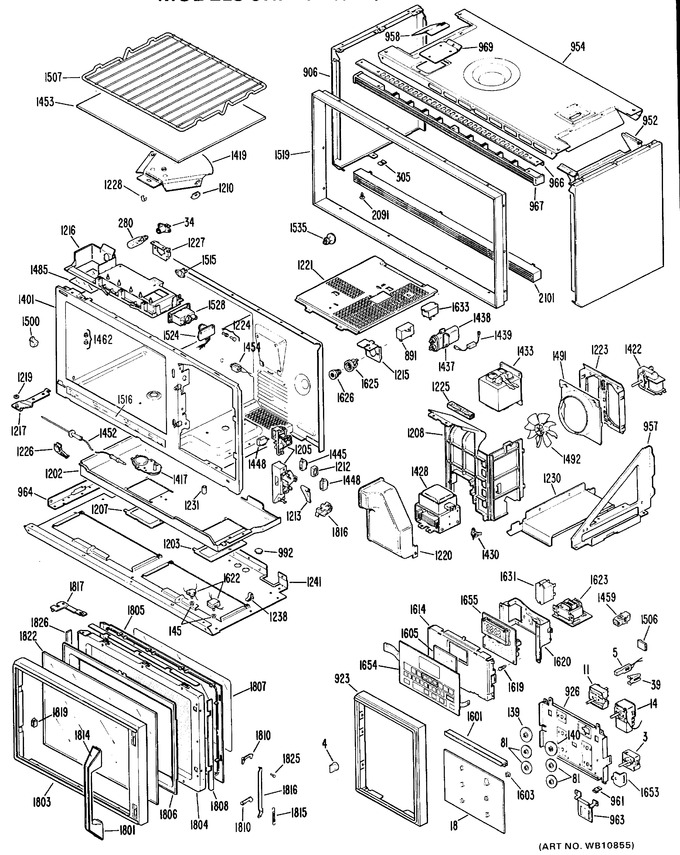

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WB21X5219 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5618 | Knob |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 11 | WB22X5118 | Switch, Oven |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB2X6454 | Sleeve |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB24X5182 | Thermostat, Dual |
|
- | |||||
| 18 | WB36X5616 | Crystal |
|
- | |||||
| 34 | WB8X5096 | Socket Lamp |
|
- | |||||
| 39 | WB2X6239 | Bracket Lamp |
|
- | |||||
| 81 | WB4X82 | Dial Asm Surface Unit |
|
- | |||||
| 139 | WB4X5107 | Dial Oven |
|
- | |||||
| 140 | WB4X5104 | Dial Temp |
|
- | |||||
| 145 | WB1X246 | Nut Switch |
|
- | |||||
| 148 | WB1X5763 | Screw |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 280 | WB2X7560 | Oven Lamp |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 305 | WB2X6653 | Speednut |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 441 | WB2X7609 | Brace Side Lh |
|
- | |||||
| 441 | WB2X7610 | Brace Side Rh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 715 | WB1X5751 | Clip Canoe |
|
- | |||||
| 733 | WB2X7750 | Bracket Trim |
|
- | |||||
| 734 | WB2X7755 | Bracket |
|
- | |||||
| 735 | WB24X5093 | Switch, Light |
|
- | |||||
| 737 | WB27X5408 | Power Supply Asm |
|
- | |||||
| 739 | WB8X5097 | Receptacle, Fustat |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 742 | WB27X5405 | Relay, Power |
|
- | |||||
| 746 | WB2X7777 | Bracket Mounting |
|
- | |||||
| 748 | WB27X5399 | Smart Board & Display |
|
- | |||||
| 749 | WB1X5578 | Screw Mtg Trim |
|
- | |||||
| 750 | WB2X7726 | Bracket |
|
- | |||||
| 752 | WB10X5184 | Hinge Lower |
|
- | |||||
| 753 | WB2X7103 | Spacer |
|
- | |||||
| 755 | WB2X7753 | Bracket |
|
- | |||||
| 756 | WB2X7733 | Bracket |
|
- | |||||
| 757 | WB2X7734 | Cushion |
|
- | |||||
| 758 | WB2X7660 | Holder Probe |
|
- | |||||
| 759 | WB2X7751 | Bracket |
|
- | |||||
| 760 | WB2X7625 | Stopper |
|
- | |||||
| 761 | WB2X7752 | Bracket |
|
- | |||||
| 762 | WB2X7761 | Cover Screw Tip |
|
- | |||||
| 763 | WB2X1665 | Clip Filter |
|
- | |||||
| 764 | WB49X5392 | Bottom Case |
|
- | |||||
| 766 | WB26X5080 | Motor, Stirrer |
|
- | |||||
| 768 | WB26X5082 | Motor, Blower |
|
- | |||||
| 769 | 10QBP0234 | Magnetron (Replaces: WB27X5410) |
|
$ 114.50 | |||||
| 770 | WB27X5371 | Thermostat |
|
- | |||||
| 772 | WB2X7731 | Bracket |
|
- | |||||
| 773 | WB27X254 | Capacitor |
|
- | |||||
| 774 | WB27X5333 | Rectifier |
|
- | |||||
| 775 | WB24X353 | Switch, Monitor |
|
- | |||||
| 776 | WG02F01561 | Switch, Door (Replaces: WB24X352) |
|
Immediately | $ 25.41 | ||||
| 777 | WB20X5054 | Probe |
|
- | |||||
| 778 | WB48X5084 | Shelf Oven |
|
- | |||||
| 779 | WB20X5053 | Receptacle Probe |
|
- | |||||
| 779 | WB1X5588 | Nut Receptacle |
|
- | |||||
| 779 | WB2X7552 | Spacer |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 786 | WB2X4114 | Blade Fan |
|
- | |||||
| 787 | WB2X7640 | Support Rack |
|
- | |||||
| 788 | WB17X5064 | Housing Socket Pkg 4 P1n |
|
- | |||||
| 788 | WB17X5079 | Housing Socket Pkg 6 Pin |
|
- | |||||
| 789 | WB27X5271 | Relay |
|
- | |||||
| 791 | WB48X5088 | Rack |
|
- | |||||
| 792 | WB27X5381 | Thermal Cutout |
|
- | |||||
| 793 | WB7X6952 | Trim |
|
- | |||||
| 794 | WB2X7770 | Spacer |
|
- | |||||
| 795 | WB7X6951 | Trim Crystal |
|
- | |||||
| 796 | WB2X6654 | Speednut U Type |
|
- | |||||
| 797 | WB36X5604 | Crystal |
|
- | |||||
| 798 | WB2X7754 | Bracket |
|
- | |||||
| 799 | WB2X7769 | Holder |
|
- | |||||
| 809 | WB15X5163 | Handle Door |
|
- | |||||
| 811 | WB55X5285 | Liner & Choke |
|
- | |||||
| 814 | WB2X7647 | Film |
|
- | |||||
| 815 | WB2X7643 | Ferrite Rubber Rh |
|
- | |||||
| 815 | WB2X7642 | Ferrite Rubber Top & Btm |
|
- | |||||
| 817 | WB10X5185 | Key Door Pkg |
|
- | |||||
| 818 | WB7X6900 | Trim Handle |
|
- | |||||
| 820 | WB10X5186 | Key & Spacer Pkg |
|
- | |||||
| 821 | WB10X5179 | Hinge Upper |
|
- | |||||
| 822 | WB2X7735 | Sash |
|
- | |||||
| 824 | WB2X7559 | Pin Key Lever |
|
- | |||||
| 825 | WB2X7857 | Cushion Rubber |
|
- | |||||
| 891 | WB27X5414 | Capacitor |
|
- | |||||
| 906 | WB56X6031 | Case Side Rh Ha |
|
- | |||||
| 906 | WB56X6036 | Case Side Lh Ha |
|
- | |||||
| 906 | WB56X6037 | Case Side Lh Ad |
|
- | |||||
| 906 | WB2X6930 | Grommet Strip |
|
- | |||||
| 906 | WB56X6030 | Case Side Rh Wh |
|
- | |||||
| 906 | WB56X6032 | Case Side Rh Ad |
|
- | |||||
| 906 | WB56X6035 | Case Side Lh Wh |
|
- | |||||
| 923 | WB7X6948 | Trim Control |
|
- | |||||
| 924 | WB49X5387 | Cover Magnetron |
|
- | |||||
| 926 | WB2X7779 | Bracket Instrument |
|
- | |||||
| 952 | WB49X5292 | Duct Side |
|
- | |||||
| 954 | WB56X6077 | Case Top |
|
- | |||||
| 957 | WB2X7231 | Brace Oven |
|
- | |||||
| 958 | WB49X5393 | Baffle |
|
- | |||||
| 959 | WB10X5165 | Door Hook Top |
|
- | |||||
| 959 | WB10X5174 | Door Hook Lower |
|
- | |||||
| 961 | WB1X5750 | Clip Crystal |
|
- | |||||
| 963 | WB2X7729 | Hinge Control Panel |
|
- | |||||
| 964 | WB2X7230 | Angle |
|
- | |||||
| 966 | WB2X7234 | Cover Grille |
|
- | |||||
| 967 | WB7X6953 | Grille |
|
- | |||||
| 969 | WB49X5394 | Cover Lamp |
|
- | |||||
| 992 | WB2X7762 | Button Plug |
|
- | |||||
| 994 | WB2X7723 | Cover Access |
|
- | |||||
| 996 | WB2X7624 | Stopper |
|
- | |||||
| 997 | WB2X7580 | Spacer |
|
- | |||||
| 998 | WB2X7628 | Hook Spacer |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1202 | WB49X5386 | Base |
|
- | |||||
| 1208 | WB2X7724 | Air Guide |
|
- | |||||
| 1216 | WB2X7727 | Exhaust Guide |
|
- | |||||
| 1220 | WB2X7635 | Air Guide |
|
- | |||||
| 1224 | WB2X7650 | Clip |
|
- | |||||
| 1401 | WB53X5130 | Cavity & Frame Asm |
|
- | |||||
| 1419 | WB2X7626 | Antenna Asm |
|
- | |||||
| 1433 | WB27X5398 | Transformer, Hi-voltage |
|
- | |||||
| 1462 | WB2X7544 | Clip |
|
- | |||||
| 1485 | WB2X7730 | Shield Lamp |
|
- | |||||
| 1491 | WB2X7728 | Orifice |
|
- | |||||
| 1516 | WB7X6905 | Label Menu Code |
|
- | |||||
| 1524 | WB27X5406 | Sensor Asm |
|
- | |||||
| 1528 | WB2X7649 | Bracket Sensor |
|
- | |||||
| 1622 | WB24X201 | Switch, Fan |
|
- | |||||
| 1654 | WB27X5412 | Key Panel Asm |
|
- | |||||
| 1803 | WB7X6925 | Trim Door |
|
- | |||||
| 1805 | WB55X5326 | Frame Inner |
|
- | |||||
| 1806 | WB55X5287 | Door Inner |
|
- | |||||
| 1815 | WB9X5112 | Spring Door Key |
|
- | |||||
| 1822 | WB36X5602 | Window Outer |
|
- | |||||
| 2101 | WB7X6954 | Trim Lower |
|
- | |||||
| 32767 | WB2X1222 | Pad |
|
- | |||||
| 32767 | 31-0565 | Pm Manual Mini |
|
- | |||||
| 32767 | UT316 | Broil Unit 208/240v L.o. (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 32767 | WB56X6004 | Cover Support Lh Ds |
|
- | |||||
| 32767 | 49-4706 | Cookbook |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB24X105 | Switch, Oven Light L.o. |
|
- | |||||
| 32767 | WB56X6008 | Panel Crystal Lh Ds |
|
- | |||||
| 32767 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB24X5182 | Thermostat, Dual |
|
- | |||||
| 32767 | WB56X6033 | Case Side Rh Ds |
|
- | |||||
| 32767 | WB24X5138 | Switch, Thermal |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- | |||||
| 32767 | WB2X1579 | Pad |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WB1X5520 | Speednut |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WB22X5118 | Switch, Oven L.o. |
|
- | |||||
| 32767 | WB56X6038 | Case Side Lh Ds |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB56X6006 | Panel Crystal Rh Ds |
|
- | |||||
| 32767 | 31-0649 | Install Instr |
|
- | |||||
| 32767 | WB56X6034 | Case Side Rh Sl |
|
- | |||||
| 32767 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | WB24X201 | Switch, Fan |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WB56X6002 | Cover Support Rh Ds |
|
- | |||||
| 32767 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WB2X2107 | Sleeve Detent |
|
- | |||||
| 32767 | UB592 | Bake Unit 208/240v L.o. (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB56X6003 | Cover Support Rh Sl |
|
- | |||||
| 32767 | WZ04X0421 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB56X6005 | Cover Support Lh Sl |
|
- | |||||
| 32767 | WB24X5093 | Switch, "f" Lamp |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WB21X5219 | Switch, Inf Surface Unit |
|
- | |||||
| 32767 | 31-0557 | Pm Manual Mini |
|
- | |||||
| 32767 | WB2X3238 | Pad |
|
- | |||||
| 32767 | 49-4793 | Manual Users |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 32767 | WB56X6007 | Panel Crystal Rh Sl |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WB56X6009 | Panel Crystal Lh Sl |
|
- | |||||
| 32767 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB56X6039 | Case Side Lh Sl |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- |
