Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WZ04X0336 Scr 8-18 Ab Ovr 3/8 S#6h Appelez-nous -
1 WB56X5845 Case Top Wh Appelez-nous -
1 WB56X5846 Case Top Cf Appelez-nous -
1 WB56X5847 Case Top Fa Appelez-nous -
1 WB56X5848 Case Top Ha Appelez-nous -
1 WB56X5849 Case Top Ad Appelez-nous -
2 WB2X6621 Bracket Mt. Top And Fram Appelez-nous -
2 WB2X6653 Speednut Appelez-nous -
3 WB1X365 Speednut Appelez-nous -
3 WB56X5692 Case Side Lh - Wh Appelez-nous -
3 WB56X5694 Case Side Lh - Fa Appelez-nous -
3 WB56X5695 Case Side Lh - Ha Appelez-nous -
3 WB56X5696 Case Side Lh - Ad Appelez-nous -
3 WB56X5793 Case Side Rh - Wh Appelez-nous -
3 WB56X5794 Case Side Rh - Cf Appelez-nous -
3 WB56X5795 Case Side Rh - Fa Appelez-nous -
3 WB56X5796 Case Side Rh Appelez-nous -
3 WB56X5797 Case Side Rh Appelez-nous -
3 WZ02X6642 Angle Brace Appelez-nous -
3 WZ04X0231 Screw Mt. Side Appelez-nous -
3 WB56X5693 Case Side Lh - Cf Appelez-nous -
4 WZ04X0231 Screw Mt. Side Appelez-nous -
4 WB56X5684 Back Cover Appelez-nous -
5 WZ04X0384 Screw Mtg End Cap Appelez-nous -
5 WB17X167 Block Term Distribution Appelez-nous -
6 WB2X6834 Slide Oven Appelez-nous -
6 WZ04X0231 Screw Mt. Side Appelez-nous -
7 WB2X6621 Bracket Mt. Top And Fram Appelez-nous -
7 WB55X5231 Bottom, Case Appelez-nous -
8 WB1X246 Switch Nut Appelez-nous -
8 WB24X5093 Switch, Light Appelez-nous -
9 WB2X6842 Brace Oven Appelez-nous -
10 WB2X6619 Post Rh Appelez-nous -
10 WB2X6620 Post Lh Appelez-nous -
11 WB2X3001 Post Spacer Appelez-nous -
11 WZ04X0231 Screw Mt. Side Appelez-nous -
12 WB2X6922 Guard - Rh Appelez-nous -
13 WB2X6924 Barrier Rh Appelez-nous -
13 WB2X6923 Barrier, Lh Appelez-nous -
14 WB56X5850 Frame,asmby Appelez-nous -
15 WB7X6711 Trim, Frame Appelez-nous -
15 WZ04X0322 Scr 8 A Ihw 3/8 S Appelez-nous -
16 WB2X6557 Barrier Appelez-nous -
16 WB24X5102 Switch Monitor Appelez-nous -
17 WZ05X0234 Screw Mt Switch Appelez-nous -
18 WS01A02255 Screw   (Replaces: WB1X536) Special Order $ 3.97

18 WB2X6697 Bracket, Door Switch Appelez-nous -
19 WB10X5122 Lever Door Appelez-nous -
20 WB10X5117 862a164p001 Appelez-nous -
20 WZ05X0139 Scr 8-32 T Hxw 7/8 S Appelez-nous -
20 WB10X5123 Guide, Lever Appelez-nous -
21 WB1X438 Screw Washer Asm Appelez-nous -
21 WB10X5110 Hinge Arm Appelez-nous -
22 WB2X6918 Baffle Appelez-nous -
23 WB2X6855 Shield (film) Appelez-nous -
24 WB8X5084 Socket, Lamp Appelez-nous -
26 WB10X5113 Bracket, Hinge Lower Appelez-nous -
26 WB1X5471 Scr 8-18 Ab T 15/32 S Appelez-nous -
27 WB2X6473 Washer Appelez-nous -
28 WB1X5471 Scr 8-18 Ab T 15/32 S Appelez-nous -
30 WB1X455 Speednut, Clamp Appelez-nous -
30 WB2X6609 Clamp Harness Appelez-nous -
30 WB27X5071 Resistor Appelez-nous -
30 WZ04X0231 Screw Mt. Side Appelez-nous -
31 WB24X5109 Switch, Latch Lower Appelez-nous -
31 WZ05X0240 Screw, Mtg. Switch Appelez-nous -
31 WB24X5101 Switch Latch Upper Appelez-nous -
32 WB2X6698 Cover, Switch (2 Each) Appelez-nous -
33 WB20X5042 Receptacle Probe Appelez-nous -
33 WB2X2954 Sleeve Appelez-nous -
34 WZ04X0231 Screw Mt. Side Appelez-nous -
34 WB10X5121 Strike Latch Appelez-nous -
35 WB56X5639 Cover Sitbr Appelez-nous -
36 WB1X5453 Fastener Appelez-nous -
37 WB20X5041 Probe Appelez-nous -
38 WB53X5081 Cavity And Faceplate (wi Appelez-nous -
39 WB2X6486 Pad (cut To Size)mounts Appelez-nous -
39 WB49X5217 Back Assembly, Case Appelez-nous -
39 WZ04X0231 Screw Mt. Side Appelez-nous -
40 WB49X5151 Base Assembly Appelez-nous -
41 WB17X5063 651b534g007 Appelez-nous -
41 WS01A02255 Screw   (Replaces: WB1X536) Special Order $ 3.97

41 WB1X358 Speednut Appelez-nous -
41 WB27X5164 Transformer Appelez-nous -
44 WB27X5120 Capacitor Appelez-nous -
45 WB2X6393 Strap, Capacitor Appelez-nous -
46 WB27X5108 Relay Appelez-nous -
46 WZ04X0218 Scr 6-20 Ab Ph 3/8 S Appelez-nous -
47 11QBP0235 Rectifier   (Replaces: WB27X5070) Special Order $ 15.33

47 WB2X6524 Sleeve Appelez-nous -
47 WZ04X0238 Scr 8-18 Ab Hw 1/2 S Appelez-nous -
48 WB2X6612 Bracket, Mt. Relay-capac Appelez-nous -
48 WZ04X0231 Screw Mt. Side Appelez-nous -
49 WB18X5053 Housing Terminal Appelez-nous -
50 WB2X6699 Barrier Switch Appelez-nous -
51 WB2X6658 Angle Stop Appelez-nous -
52 WB48X5056 Shelf Oven Appelez-nous -
53 WB49X5209 Baffle Duct Appelez-nous -
54 WB49X5211 Duct Bottom Appelez-nous -
54 WB2X6755 Gasket (cut To Size) Appelez-nous -
55 WB49X5210 Duct Side Appelez-nous -
56 WB2X6839 Cover Ad Appelez-nous -
56 WB2X6838 Cover Ha Appelez-nous -
56 WB2X6835 Cover Wh Appelez-nous -
56 WB2X6836 Cover Cf Appelez-nous -
56 WB2X6837 Cover Fa Appelez-nous -
57 WB2X6726 Recep. Cover Fa Appelez-nous -
57 WB2X6728 Recep. Cover Ad Appelez-nous -
57 WS01A01150 Screw (cr)   (Replaces: WB1X5364) Special Order $ 3.97

57 WB2X6724 Recep. Cover Wh Appelez-nous -
57 WB2X6725 Recep. Cover Cf Appelez-nous -
57 WB2X6727 Cover Appelez-nous -
58 WB2X6841 Brace Angle Appelez-nous -
59 WB2X6840 Filler Filter Opening Appelez-nous -
60 WB2X6827 Support Rack Appelez-nous -
61 WB2X6859 Bracket, Socket Lamp Appelez-nous -
62 WB2X6856 Cover Appelez-nous -
63 WB48X5058 Rack Meal Appelez-nous -
64 WB27X5165 Sensor Asm Appelez-nous -
65 WB27X5298 Key Pnl Asm Appelez-nous -
65 WB17X5063 651b534g007 Appelez-nous -
65 WB27X5154 Control, Touch Appelez-nous -
65 WB27X5299 Smart Board Appelez-nous -
66 WB2X6653 Speednut Appelez-nous -
66 WB1X580 Speednut Appelez-nous -
66 WB2X6634 Pad, Control Trim (botto Appelez-nous -
66 WB7X6726 Trim Control Panel Appelez-nous -
66 WZ04X0237 Screw Appelez-nous -
67 WB7X6727 Trim Crystal Appelez-nous -
67 WB1X5547 Scr 8/32 Tf Flr 5/16 S Appelez-nous -
68 WB2X6656 Speednut, Mt. Insert Appelez-nous -
68 WB7X6728 Insert Control Panel Appelez-nous -
69 WB36X5436 Cryst.filter Appelez-nous -
70 WB36X5435 393d634p001 Appelez-nous -
71 WB2X6654 Speed Nut Appelez-nous -
72 WB2X6933 Bracket Instrument Appelez-nous -
73 WB2X1608 Neon Lamp 118v Special Order $ 31.65

73 WB2X1609 Lamp, Indicator Appelez-nous -
74 WB2X6624 Bracket Lamp Neon Appelez-nous -
75 WB21X241 Inf. Ht. Sw. 120v Small Appelez-nous -
75 WB21X228 Switch, Inf Surface Unit Appelez-nous -
75 WZ02X0528 Scr 8-32 M Phr 3/16 S Appelez-nous -
76 WB3X5608 Knob S.u. Appelez-nous -
77 WB2X6454 Sleeve Appelez-nous -
77 WZ02X0528 Scr 8-32 M Phr 3/16 S Appelez-nous -
77 WB24X184 Thermostat, Dual Appelez-nous -
78 WB3X5605 Knob Thermo. Appelez-nous -
79 WZ02X0528 Scr 8-32 M Phr 3/16 S Appelez-nous -
79 WB22X5093 Switch, Oven Appelez-nous -
80 WB3X5607 Knob Oven Switch Appelez-nous -
81 WZ04X0372 Scr 6-20 Ab Hxw 3/8 S Appelez-nous -
81 WB19X5253 Timer Appelez-nous -
82 WB3X459 Knob Timer Appelez-nous -
83 WB2X6623 Catch, Control Panel Appelez-nous -
84 WB2X6633 Barrier Appelez-nous -
85 WB17X5061 Terminal Blk Asm (3 Pin) Appelez-nous -
85 WB17X5064 Housing Socket Pkg 4 P1n Appelez-nous -
85 WB17X5065 Terminal Blk Asm (4 Pin) Appelez-nous -
86 WB2X7011 Plug Button Appelez-nous -
120 WB15X5113 Handle Appelez-nous -
121 WB7X5635 Trim Handle Appelez-nous -
122 WB1X5462 Screw Mtg. Handle - Trim Appelez-nous -
123 WB3X5583 Button Latch Appelez-nous -
124 WB2X6644 Spring Latch Appelez-nous -
125 WB10X5112 Latch Bar As Appelez-nous -
126 WB2X6580 Shim Appelez-nous -
126 WZ04X0231 Screw Mt. Side Appelez-nous -
126 WB10X5111 Hinge Latch Appelez-nous -
127 WS01A01150 Screw (cr)   (Replaces: WB1X5364) Special Order $ 3.97

127 WB7X5634 Trim, Door Appelez-nous -
127 WB1X5505 Speednut Appelez-nous -
128 WB36X5374 Crystal Door Appelez-nous -
129 WB2X6643 Clip, Window Appelez-nous -
130 WB56X5686 Panel Door Appelez-nous -
131 WB55X5227 Linr Choke A Appelez-nous -
132 WB2X6700 Gasket Door Outer Appelez-nous -
133 WB2X6476 Gasket - Small Appelez-nous -
134 WB2X6474 Pad. Window (4 Ea)(cut T Appelez-nous -
134 WB36X5415 Crystal Innr Appelez-nous -
135 WB55X5232 Choke Cover Appelez-nous -
136 WB1X5518 Scr 8-16 Ab Plt 11/64 S Appelez-nous -
137 WS01A01150 Screw (cr)   (Replaces: WB1X5364) Special Order $ 3.97

137 WB7X5643 Trim Filler, Inner Door Appelez-nous -
138 WB2X6909 Bumper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

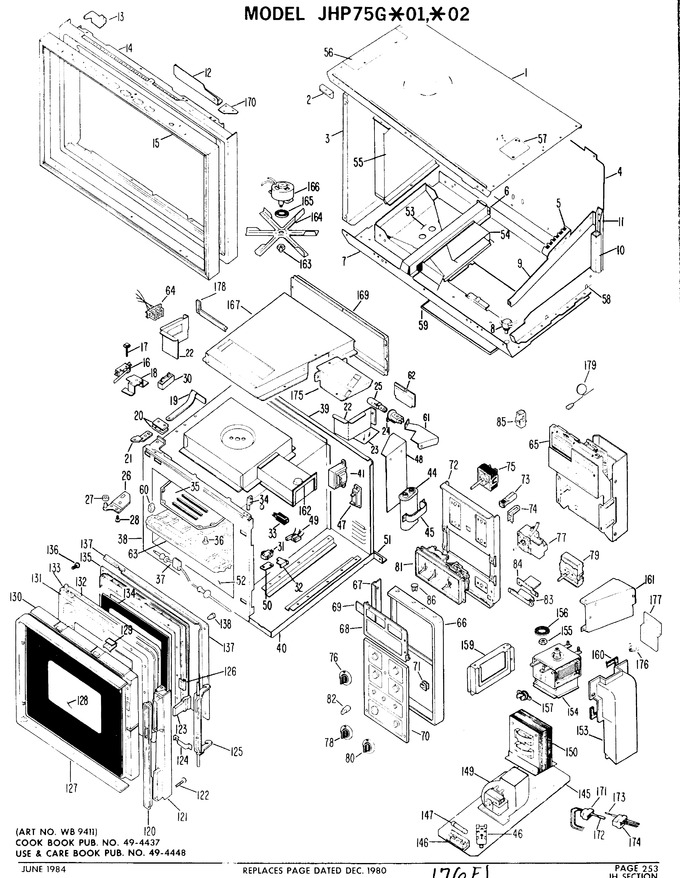

Diagram for JHP75G*02
