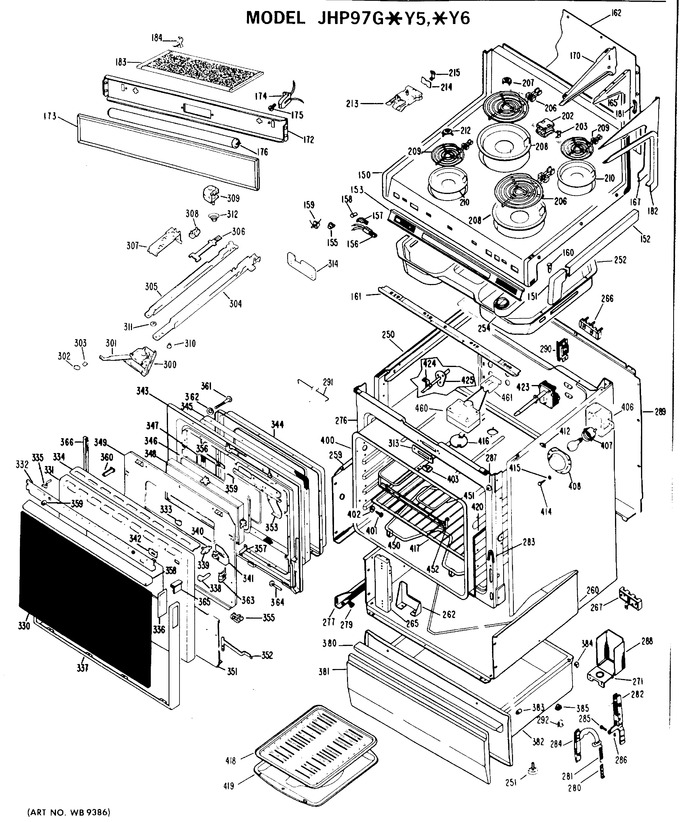

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
150	WB62X5250		Cooktop - Ad		Appelez-nous	-
150	WB62X5246		Cooktop - Wh		Appelez-nous	-
150	WZ04X0231		Screw Mtg. Cooktop		Appelez-nous	-
150	WB62X5247		Cooktop - Cf		Appelez-nous	-
150	WB62X5248		Cooktop - Fa		Appelez-nous	-
150	WB62X5249		Cooktop - Ha		Appelez-nous	-
151	WB7X6677		End Cap - Lh		Appelez-nous	-
151	WZ04X0384		Screw Mtg. Cap		Appelez-nous	-
151	WB1X5520		Speednut Mtg. End Cap		Appelez-nous	-
151	WB7X6676		End Cap - Rh		Appelez-nous	-
152	WB7X1004		Trim Cooktop (2)		Appelez-nous	-
153	WB7X5633		Insert - Trim		Appelez-nous	-
153	WZ04X0366		Screw Mtg. Trim		Appelez-nous	-
153	WB7X1010		Trim - Front		Appelez-nous	-
155	WB2X3006		Clip Mtg. Trim		Appelez-nous	-
156	WB2X1609		Lamp Clean		Appelez-nous	-
156	WB2X1608		Lamp - Lock				$ 31.65
157	WB2X1185		Clip - Lamps		Appelez-nous	-
158	WB25X65		Jewel - Lamps		Appelez-nous	-
159	WB24X174		Switch - Latch Release		Appelez-nous	-
159	WB1X246		Nut - Switch		Appelez-nous	-
160	WS01A01150		Screw Mtg. Clip   (Replaces: WB1X5364)				$ 3.97
160	WB2X2988		Clip Mtg. Trim		Appelez-nous	-
161	WZ06X0038		Screw Mtg. Deflector		Appelez-nous	-
161	WB7X1100		Deflector		Appelez-nous	-
162	WB49X5181		Cover - Back		Appelez-nous	-
162	WZ04X0231		Screw Mtg. Back		Appelez-nous	-
165	WB2X6737		Support - Lh		Appelez-nous	-
165	WZ04X0231		Screw Mtg. Support		Appelez-nous	-
165	WB2X6736		Support - Rh		Appelez-nous	-
166	WB2X3001		Spacer - Post		Appelez-nous	-
167	WB7X1177		Cover - Support Lh - Ha		Appelez-nous	-
167	WB7X1169		Cover - Support Rh - Wh		Appelez-nous	-
167	WB7X1170		Cover - Support Rh - Cf		Appelez-nous	-
167	WB7X1171		Cover - Support Rh - Fa		Appelez-nous	-
167	WB7X1172		Cover - Support Rh - Ha		Appelez-nous	-
167	WB7X1173		Cover - Support Rh - Ad		Appelez-nous	-
167	WB7X1174		Cover - Support Lh - Wh		Appelez-nous	-
167	WB7X1175		Cover - Support Lh - Cf		Appelez-nous	-
167	WB7X1176		Cover - Support Lh - Fa		Appelez-nous	-
167	WB7X1178		Cover - Support Lh - Ad		Appelez-nous	-
167	WZ04X0231		Screw Mtg. Cover		Appelez-nous	-
170	WZ04X0231		Screw Mtg. Panel		Appelez-nous	-
170	WB7X1179		Panel - Crystal Rh - Wh		Appelez-nous	-
170	WB7X1180		Panel - Crystal Rh - Cf		Appelez-nous	-
170	WB7X1181		Panel - Crystal Rh - Fa		Appelez-nous	-
170	WB7X1182		Panel - Crystal Rh - Ha		Appelez-nous	-
170	WB7X1183		Panel - Crystal Rh - Ad		Appelez-nous	-
170	WB7X1184		Panel - Crystal Lh - Wh		Appelez-nous	-
170	WB7X1185		Panel - Crystal Lh - Cf		Appelez-nous	-
170	WB7X1186		Panel - Crystal Lh - Fa		Appelez-nous	-
170	WB7X1187		Panel - Crystal Lh - Ha		Appelez-nous	-
170	WB7X1188		Panel - Crystal Lh - Ad		Appelez-nous	-
172	WB49X347		Lamp Housing		Appelez-nous	-
172	WZ04X0209		Screw Mtg. Housing		Appelez-nous	-
173	WB2X1667		Clip - Crystal		Appelez-nous	-
173	WB36X435		Crystal & Trim		Appelez-nous	-
174	WB8X164		Socket - Lamp		Appelez-nous	-
175	WZ04X0372		Screw Mtg. Socket		Appelez-nous	-
176	F20T12/CW		"f" Lamp		Appelez-nous	-
181	WB9X137		Spring - Latch		Appelez-nous	-
182	WB7X1005		Trim - Rh		Appelez-nous	-
182	WZ04X0336		Screw Mtg. Trim		Appelez-nous	-
182	WB7X1006		Trim - Lh		Appelez-nous	-
183	WB2X1666		Filter		Appelez-nous	-
184	WB2X1665		Clip Filter		Appelez-nous	-
206	WB1X5355		Terminal Screws		Appelez-nous	-
206	PS240M		Surface Unit 8" Lr   (Replaces: WB30X219)			Immediately	$ 44.95
207	WB32X51		Center Trim 8"		Appelez-nous	-
208	WB31X5011		Ring Pan 8" Chrome		Appelez-nous	-
209	WB30X218		Surface Unit 6" - Lf, Rr		Appelez-nous	-
209	WB1X5355		Terminal Screws		Appelez-nous	-
210	WB31X5010		Ring Pan 6" Chrome		Appelez-nous	-
212	WB1X5355		Terminal Screws		Appelez-nous	-
212	WB32X52		Center Trim 6"		Appelez-nous	-
213	WB17X5051		Receptacle Asm.		Appelez-nous	-
214	WB2X6171		Insulator		Appelez-nous	-
215	WB2X995		Clip - Leads		Appelez-nous	-
215	WB2X6172		Clip - Insulator		Appelez-nous	-
250	WB2X3229		Barrier		Appelez-nous	-
250	WZ04X0231		Screw Mtg. Bake Unit Opng, Back Barrier		Appelez-nous	-
250	WB2X1742		Clamp - Harness		Appelez-nous	-
251	WB1X5516		Leveling Screw		Appelez-nous	-
252	WB49X5149		Box, Cooktop		Appelez-nous	-
252	WZ04X0231		Screw Mtg. Cooktop Box		Appelez-nous	-
254	WB38X5039		Vent Body		Appelez-nous	-
259	WB49X5221		Guard Upper - Rh (y6 & Up)		Appelez-nous	-
259	WB49X5222		Guard Upper - Lh (y6 & Up)		Appelez-nous	-
259	WB49X5171		Guard Upper - Rh (y5)		Appelez-nous	-
259	WB49X5172		Guard Upper - Lh (y5)		Appelez-nous	-
259	WZ04X0345		Screw - Mtg. Guards		Appelez-nous	-
260	WB49X5156		Guard Lower		Appelez-nous	-
260	WZ04X0231		Screw, Mtg. Guard		Appelez-nous	-
262	WB2X6187		Support Oven		Appelez-nous	-
265	WB2X6768		Panel, Filler		Appelez-nous	-
265	WZ04X0231		Screw, Mtg. Panel		Appelez-nous	-
266	WZ04X0384		Screw, Mtg. Block		Appelez-nous	-
266	WB17X167		Terminal Block - Distribution		Appelez-nous	-
267	WB2X646		Plate, Ground		Appelez-nous	-
267	WZ04X0231		Screw, Mtg. Plate		Appelez-nous	-
267	WZ04X0348		Screw Mtg. Terminal Block		Appelez-nous	-
267	WB17X168		Power Term. Block		Appelez-nous	-
271	WS01A02255		Screw Mtg. Bracket   (Replaces: WB1X536)				$ 3.97
271	WB2X6191		Knockout Bracket		Appelez-nous	-
276	WB56X1296		Front Frame (y5)		Appelez-nous	-
276	WB56X5861		Front Frame (y6 & Up)		Appelez-nous	-
276	WB2X3240		Spacer		Appelez-nous	-
276	WZ04X0345		Screw Mtg. Frame		Appelez-nous	-
277	WB39X5011		Drawer Guide Rh		Appelez-nous	-
277	WZ04X0231		Smtg. Screw Guide		Appelez-nous	-
277	WB39X5010		Drawer Guide Lh		Appelez-nous	-
279	WB2X831		Slide, Guide		Appelez-nous	-
280	WB2X2506		Hook, Door Spring		Appelez-nous	-
281	WB9X5076		Spring, Door		Appelez-nous	-
282	WB1X5497		Screw Mtg. Support Bottom		Appelez-nous	-
282	WB10X5090		Support, Hinge Rh		Appelez-nous	-
282	WB1X119		Washer		Appelez-nous	-
282	WB1X5471		Screw Mtg. Support Top		Appelez-nous	-
282	WB10X5091		Support, Hinge Lh		Appelez-nous	-
283	WB2X6342		Guide - Lever		Appelez-nous	-
284	WB10X5092		Hinge Lever Asm. - Rh & Lh		Appelez-nous	-
285	WG02A00596		Hinge Pin   (Replaces: WB2X6195)				$ 4.20
286	WB2X1082		Ret. Ring		Appelez-nous	-
287	WB2X6196		Insulator Barrier		Appelez-nous	-
287	WB24X105		Switch, Oven Light		Appelez-nous	-
288	WZ04X0232		Screw, Mtg. Cover		Appelez-nous	-
288	WB2X6655		Cover, Terminal Block		Appelez-nous	-
289	WB49X5161		Cover, Back		Appelez-nous	-
290	WB2X1546		Ballast		Appelez-nous	-
291	WB2X6747		Hook		Appelez-nous	-
292	WB2X3193		Clip - Shim		Appelez-nous	-
300	WB14X36		Latch Asm.		Appelez-nous	-
300	WZ02X0546		Screw Mtg. Latch		Appelez-nous	-
301	WB15X142		Handle		Appelez-nous	-
301	WB1X438		Screw Mt. Handle		Appelez-nous	-
302	WB3X322		Knob, Latch		Appelez-nous	-
303	WG02A00753		Retainer, Knob   (Replaces: WB2X2030)				$ 4.20
304	WB2X3174		Channel, Latch		Appelez-nous	-
305	WB2X3175		Channel, Locking		Appelez-nous	-
306	WB2X3159		Pawl, Locking		Appelez-nous	-
307	WB2X3176		Plate, Mounting		Appelez-nous	-
307	WZ04X0362		Screw, Channel To Latch		Appelez-nous	-
307	WZ04X0396		Screw, Mt. Plate		Appelez-nous	-
308	WB2X6912		Barrier		Appelez-nous	-
308	WB24X183		Switch Latch		Appelez-nous	-
308	WZ04X0397		Screw Mtg. Switch		Appelez-nous	-
309	WB1X438		Screw Mt. Solenoid		Appelez-nous	-
309	WB24X197		Solenoid		Appelez-nous	-
310	WB2X6212		Pivot Stud		Appelez-nous	-
311	WB2X1800		Retaining Ring		Appelez-nous	-
312	WB9X148		Spring		Appelez-nous	-
313	WB7X552		Trim Latch		Appelez-nous	-
314	WB2X6911		Bracket Latch		Appelez-nous	-
314	WZ04X0394		Screw Latch Rear		Appelez-nous	-
314	WZ10X0114		Lockwasher Latch Rear		Appelez-nous	-
330	WB2X122		Pad		Appelez-nous	-
330	WB36X5379		Black Glass Panel		Appelez-nous	-
331	WB56X5678		Panel, Door		Appelez-nous	-
331	WB2X6546		Insulation Door		Appelez-nous	-
332	WB7X5623		Trim, Door		Appelez-nous	-
333	WB2X3053		Speednut, Mtg. Trim		Appelez-nous	-
334	WB7X5630		Trim, Top		Appelez-nous	-
335	WB2X6575		Clip Mtg. Trim		Appelez-nous	-
336	WB2X6573		Pad Trim		Appelez-nous	-
337	WB7X5625		Trim, Door		Appelez-nous	-
337	WZ04X0231		Screw, Mtg. Trim		Appelez-nous	-
338	WB2X6574		Clip Trim (4 Per)		Appelez-nous	-
339	WB2X3052		Cam		Appelez-nous	-
340	WB2X5217		Link Cam		Appelez-nous	-
341	WB9X5083		Cam Spring		Appelez-nous	-
342	WB7X5624		Trim Plate		Appelez-nous	-
343	WB55X5216		Liner Door		Appelez-nous	-
344	WB55X5210		Panel Inner		Appelez-nous	-
345	WB1X537		Screw, Mtg. Gasket		Appelez-nous	-
345	WB2X6547		Gasket, Door		Appelez-nous	-
346	WB1X722		Trim Crystal		Appelez-nous	-
347	WB2X6232		Gasket, Crystal		Appelez-nous	-
348	WB36X5244		Window		Appelez-nous	-
349	WB55X5218		Guard, Insulation		Appelez-nous	-
349	WZ04X0231		Screw Mtg. Guard		Appelez-nous	-
351	WB55X5217		Shield, Window		Appelez-nous	-
352	WB15X143		Handle, Shield Rh		Appelez-nous	-
352	WB15X144		Handle, Shield Lh		Appelez-nous	-
352	WZ05X0134		Screw, Mtg. Handle		Appelez-nous	-
353	WZ04X0304		Screw Mtg. Cover		Appelez-nous	-
353	WB2X3045		Cover Assembly		Appelez-nous	-
354	WB9X128		Spring Guard		Appelez-nous	-
355	WZ04X0231		Screw Mt. Slide Bottom		Appelez-nous	-
355	WB2X3040		Slide, Shield		Appelez-nous	-
355	WZ05X0134		Screw Mt. Slide Top		Appelez-nous	-
356	WB9X138		Spring Strike		Appelez-nous	-
356	WZ04X0304		Screw Mtg. Strike		Appelez-nous	-
357	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
357	WB2X6238		Bracket. Door		Appelez-nous	-
358	WB15X145		Handle, Door		Appelez-nous	-
359	WB2X6243		Grommet, Handle		Appelez-nous	-
360	WB2X6204		Spacer		Appelez-nous	-
361	WZ04X0298		Screw Mtg. Handle		Appelez-nous	-
362	WB1X119		Washer Mtg. Handle		Appelez-nous	-
363	WB2X6270		Spacer, Panel		Appelez-nous	-
364	WB1X558		Bolt Liner Socket		Appelez-nous	-
365	WB7X5631		Cap Trim		Appelez-nous	-
366	WB3X3041		Guide And Spring Assembly-lh		Appelez-nous	-
366	WB3X3042		Guide And Spring Assembly-rh		Appelez-nous	-
366	WZ04X0231		Screw Mt. Guide And Spring		Appelez-nous	-
380	WB15X5121		Handle		Appelez-nous	-
380	WZ04X0209		Screw Mt. Handle		Appelez-nous	-
381	WB56X5738		Panel Drawer - Wh		Appelez-nous	-
381	WB56X5739		Panel Drawer - Cf		Appelez-nous	-
381	WB56X5740		Panel Drawer - Fa		Appelez-nous	-
381	WB56X5741		Panel Drawer - Ha		Appelez-nous	-
381	WB56X5742		Panel Drawer - Ad		Appelez-nous	-
382	WB58X5005		Drawer Assembly		Appelez-nous	-
383	WB2X6208		Bumper		Appelez-nous	-
384	WB2X840		Slide Top		Appelez-nous	-
385	WB2X841		Slide		Appelez-nous	-
400	WB1X422		Screw Mtg. Cover		Appelez-nous	-
400	WB1X525		Washer Mtg. Cover		Appelez-nous	-
400	WB2X3230		Cover		Appelez-nous	-
400	WB2X6496		Insulation Oven Liner		Appelez-nous	-
400	WB53X5070		Oven Liner		Appelez-nous	-
401	WB1X570		Screw, Mtg. Liner		Appelez-nous	-
402	WB1X119		Washer, Mtg. Liner		Appelez-nous	-
403	WB2X6209		Clip, Trim		Appelez-nous	-
403	WZ04X0238		Screw, Mtg. Trim		Appelez-nous	-
406	WB2X3466		Guard Lamp		Appelez-nous	-
406	WZ04X0231		Screw, Mtg. Guard Lamp		Appelez-nous	-
407	WB8X5060		Oven Light Socket		Appelez-nous	-
408	WG02F04576		Glass Lamp   (Replaces: WB36X192)				$ 20.65
412	WB2X1659		Speednut		Appelez-nous	-
413	WZ04X0361		Screw, Mtg. Trim Lamp		Appelez-nous	-
414	WZ04X0291		Screw, Mtg. Trim To Plate		Appelez-nous	-
415	WB2X1847		Washer		Appelez-nous	-
416	WZ04X0291		Screw, Mtg. Baffle		Appelez-nous	-
416	WB2X1626		Baffle, Vent		Appelez-nous	-
417	WB48X5044		Oven Rack		Appelez-nous	-
418	WB48X5002		Rack, Broil Pan		Appelez-nous	-
419	WB49X88		Pan Broiler		Appelez-nous	-
420	WB2X3253		Clip, Retainer, Mullion Unit		Appelez-nous	-
420	WB44X186		Mullion Unit		Appelez-nous	-
420	WB1X500		Screw Terminal		Appelez-nous	-
423	WB24X175		Thermal Switch		Appelez-nous	-
423	WB2X6274		Sleeve		Appelez-nous	-
424	WZ04X0288		Screw Mt. Hanger		Appelez-nous	-
424	WB2X3165		Hanger		Appelez-nous	-
425	WB2X3164		Mounting Plate		Appelez-nous	-
425	WZ04X0291		Screw Mt. Plate		Appelez-nous	-
425	WB2X3163		Gasket - Plate				$ 22.50
450	UB592		Bake Unit   (Replaces: WB44X5082)			Immediately	$ 49.95
450	WZ04X0291		Screw Mtg. Bake Unit		Appelez-nous	-
450	WB1X500		Screw Terminal		Appelez-nous	-
451	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
451	WZ04X0291		Screw Mtg. Broil Unit		Appelez-nous	-
451	WB1X500		Screw Terminal		Appelez-nous	-
452	WB2X1810		Broil Unit Support		Appelez-nous	-
452	WB2X1543		Gasket		Appelez-nous	-
452	WZ04X0291		Screw Mtg. Support		Appelez-nous	-
460	WZ04X0291		Screw Mtg. Smoke Eliminator		Appelez-nous	-
460	WB29X5009		Smoke Eliminator		Appelez-nous	-
461	WB2X3388		Terminal Block		Appelez-nous	-
461	WB1X500		Screw, Terminals		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
