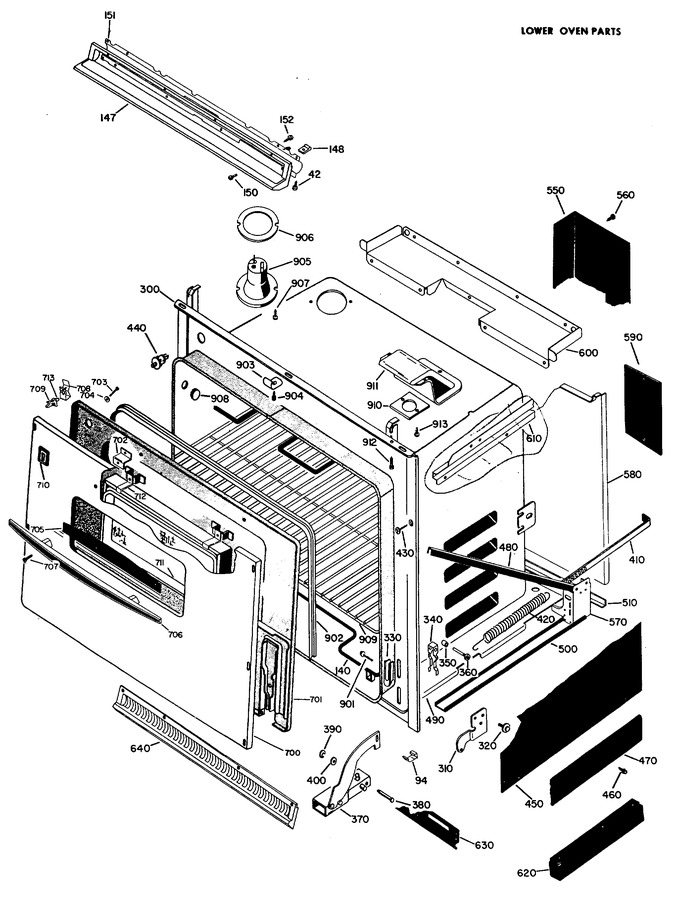

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WZ02X0492		Screw		Appelez-nous	-
94	WB2X1460		Hinge Lever Guide		Appelez-nous	-
140	WB2X2408		Vent Cover		Appelez-nous	-
147	WB7X729		Trim Middle		Appelez-nous	-
148	WB2X1119		Nut Mt. Trim		Appelez-nous	-
150	WZ04X0237		Screw Mt. Trim To Grill		Appelez-nous	-
151	WB7X728		Grill		Appelez-nous	-
152	WZ05X0132		Screw Mt. Grill		Appelez-nous	-
300	WB56X854		Frame		Appelez-nous	-
310	WB10X120		Hinge Support-rh		Appelez-nous	-
310	WB10X121		Hinge Support-lh		Appelez-nous	-
320	WB1X351		Screw Mt. Support		Appelez-nous	-
330	WB2X1460		Hinge Lever Guide		Appelez-nous	-
340	WB2X1461		Spring-hinge Lever		Appelez-nous	-
350	WB2X1462		Roller		Appelez-nous	-
360	WB1X352		Screw Mt. Roller		Appelez-nous	-
370	WB10X122		Hinge Lever-rh		Appelez-nous	-
370	WB2X1115		Pin For Lever		Appelez-nous	-
370	WB10X123		Hinge Lever-lh		Appelez-nous	-
370	WB2X1116		Stud For Lever		Appelez-nous	-
370	WB2X1117		Spring For Lever		Appelez-nous	-
380	WB2X1081		Hinge Pin		Appelez-nous	-
390	WB2X1082		Hinge Pin Retainer		Appelez-nous	-
400	WZ10X0017		Washer		Appelez-nous	-
410	WB9X93		Link		Appelez-nous	-
420	WB9X61		Spring-lh		Appelez-nous	-
420	WB9X80		Spring-rh		Appelez-nous	-
430	WB1X295		Screw 1 1/4"		Appelez-nous	-
430	WB1X292		Screw 3/4"		Appelez-nous	-
440	WB24X105		Oven Light Switch		Appelez-nous	-
450	WB59X105		Slide Insl.guard Rh & Lh		Appelez-nous	-
460	WB1X284		Screw Mt. Guard Size #6		Appelez-nous	-
470	WB59X106		Side Cover		Appelez-nous	-
480	WB59X68		Channel Side		Appelez-nous	-
490	WB59X69		Bottom Guard		Appelez-nous	-
500	WB59X107		Channel		Appelez-nous	-
510	WB59X71		Rear Angle		Appelez-nous	-
550	WB59X64		Terminal Guard		Appelez-nous	-
560	WB1X284		Screw Mt. Guard #6		Appelez-nous	-
570	WB59X108		Gusset		Appelez-nous	-
580	WB59X136		Back Cover		Appelez-nous	-
590	WB59X137		Cover		Appelez-nous	-
590	WB1X284		Screw Mt. Cover & Plate		Appelez-nous	-
600	WB55X254		Cover Wiring		Appelez-nous	-
610	WB55X255		Spacer Case		Appelez-nous	-
620	WB2X2063		Spacer Bottom		Appelez-nous	-
620	WZ04X0231		Screw Mt. Spacer & Suppo		Appelez-nous	-
630	WB2X2064		Support Trim		Appelez-nous	-
640	WB7X673		Trim		Appelez-nous	-
640	WZ04X0237		Screw Mt. Trim		Appelez-nous	-
700	WB56X922		Door Panel-brushed Chrom		Appelez-nous	-
700	WB2X1640		Insulation Pkg.		Appelez-nous	-
700	WB56X918		Door Panel-white		Appelez-nous	-
700	WB56X919		Door Panel-harvest		Appelez-nous	-
700	WB56X920		Door Panel-avocado		Appelez-nous	-
700	WB56X921		Door Panel-dk. Cooper		Appelez-nous	-
701	WB55X212		Door Liner		Appelez-nous	-
702	WB2X1628		Liner Spacer		Appelez-nous	-
703	WZ04X0245		Screw		Appelez-nous	-
704	WB1X119		Washer		Appelez-nous	-
705	WB7X519		Shield		Appelez-nous	-
706	WB15X92		Handle		Appelez-nous	-
707	WZ04X0245		Screw Mt. Handle		Appelez-nous	-
708	WB2X2412		Spring		Appelez-nous	-
709	WB2X2248		Toggle		Appelez-nous	-
710	WB7X273		Trim-toggle		Appelez-nous	-
711	WB36X76		Window		Appelez-nous	-
712	WB2X1445		Clip Window		Appelez-nous	-
712	WZ04X0256		Screw Clip		Appelez-nous	-
713	WB2X2411		Link		Appelez-nous	-
901	WB1X419		Screw Mt. Liner To Frame		Appelez-nous	-
902	WB2X2058		Silicone Gasket		Appelez-nous	-
903	WB2X1031		Trim Clip		Appelez-nous	-
904	WB1X294		Screw		Appelez-nous	-
905	WB8X142		Lamp Receptacle		Appelez-nous	-
906	WB2X1083		Gasket		Appelez-nous	-
907	WB1X350		Screw		Appelez-nous	-
908	WB2X1125		Plug Button Rotisserie		Appelez-nous	-
908	WB2X820		Plug Button Receptacle		Appelez-nous	-
908	WB2X1126		Plug Button		Appelez-nous	-
909	WB48X73		Oven Shelf (2 Used)		Appelez-nous	-
910	WB38X61		Vent Gasket		Appelez-nous	-
911	WB38X62		Vent		Appelez-nous	-
912	WR2X561		Screw-vent Trim		Appelez-nous	-
913	WB1X275		Screw-vent Liner		Appelez-nous	-
