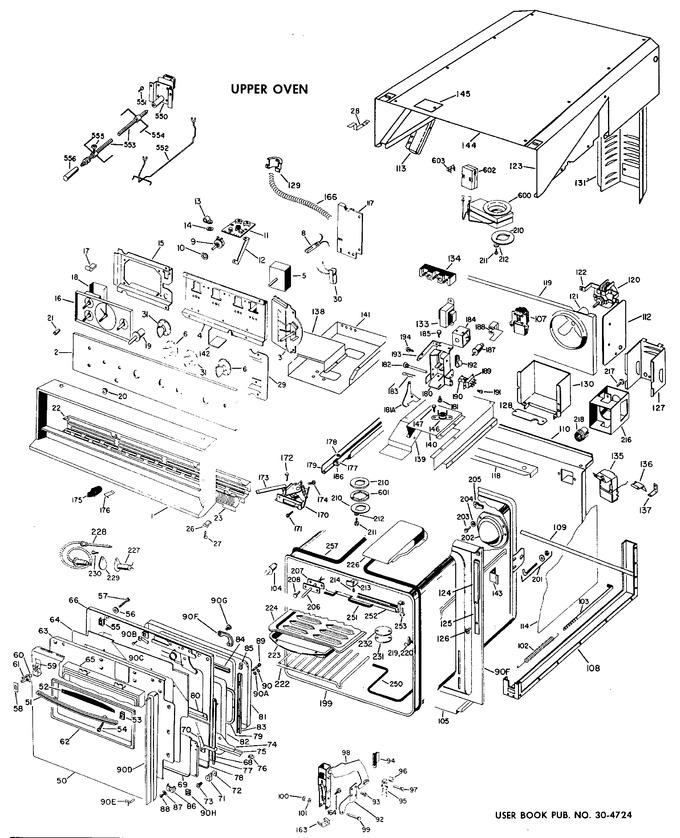

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Upper Oven
2 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB7X634 | Control Trim |
|
- | |||||
| 2 | WB36X236 | Crystal |
|
- | |||||
| 3 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 3 | WB20X38 | Meter |
|
- | |||||
| 4 | WB2X2120 | Instrument Bracket |
|
- | |||||
| 4 | WB1X239 | Hex Nut Pal |
|
- | |||||
| 5 | WZ02X0495 | Screw Mt. Sw. |
|
- | |||||
| 5 | WB22X53 | Switch, Oven U.o. |
|
- | |||||
| 5 | WB22X55 | Switch, Oven U.o. |
|
- | |||||
| 6 | WB3X315 | Knob Sw. - Upper |
|
- | |||||
| 6 | WB3X317 | Knob Switch Upper |
|
- | |||||
| 8 | WB2X1609 | Lamp, Indicator |
|
- | |||||
| 8 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 9 | WB24X153 | Rheostat |
|
- | |||||
| 10 | WB1X443 | Nut |
|
- | |||||
| 11 | WB24X151 | Circuit Board P-7 |
|
- | |||||
| 12 | WB2X2409 | Brkt. Mt. Board |
|
- | |||||
| 12 | WZ04X0278 | Screw Mt. Bracket |
|
- | |||||
| 12 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 13 | WB2X1406 | Clamp Harness |
|
- | |||||
| 14 | WB1X445 | Washer |
|
- | |||||
| 15 | WB2X2079 | Timer Bracket |
|
- | |||||
| 15 | WB1X239 | Hex Nut Pal |
|
- | |||||
| 16 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 16 | WB19X83 | Timer |
|
- | |||||
| 17 | WB2X2006 | Clamp Harness |
|
- | |||||
| 18 | WB2X2007 | Barrier - Timer |
|
- | |||||
| 19 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 20 | WB2X1838 | Trim - Switch |
|
- | |||||
| 21 | WB3X218 | Knob, Timer |
|
- | |||||
| 22 | WB2X1973 | Deflector |
|
- | |||||
| 23 | WB7X635 | Grille |
|
- | |||||
| 23 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 24 | WB7X598 | Escutcheon |
|
- | |||||
| 25 | WB1X239 | Hex Nut Pal |
|
- | |||||
| 26 | WB2X1119 | Speednut |
|
- | |||||
| 27 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 28 | WZ04X0282 | Screw Mt. Brkt. To Top |
|
- | |||||
| 28 | WZ04X0222 | Screw Mt. Brkt. To Trim |
|
- | |||||
| 28 | WB2X1457 | Bracket Trim |
|
- | |||||
| 29 | WB2X2407 | Bracket Meat Thermo |
|
- | |||||
| 30 | WB8X163 | Buzzer |
|
- | |||||
| 31 | WB3X316 | Knob Control Upper |
|
- | |||||
| 31 | WB3X314 | Knob Control |
|
- | |||||
| 50 | WB56X772 | Panel - White |
|
- | |||||
| 50 | WB56X778 | Panel - Brushed Chrome |
|
- | |||||
| 50 | WB2X2267 | Insulation |
|
- | |||||
| 50 | WB56X776 | Panel - Avocado |
|
- | |||||
| 50 | WB56X777 | Panel - Dk. Copper |
|
- | |||||
| 50 | WB56X849 | Panel - Harvest |
|
- | |||||
| 51 | WB15X121 | Handle |
|
- | |||||
| 52 | WB7X519 | Shield |
|
- | |||||
| 53 | WB1X440 | Clip |
|
- | |||||
| 54 | WZ04X0245 | Scr 8-18 Ab Phr 5/8 S |
|
- | |||||
| 55 | WB1X439 | Speednut Bracket |
|
- | |||||
| 56 | WB1X119 | Washer Contoured |
|
- | |||||
| 57 | WZ02X0492 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 58 | WB7X273 | Trim Plate |
|
- | |||||
| 59 | WB2X2249 | Spring Toggle |
|
- | |||||
| 60 | WB2X2250 | Link |
|
- | |||||
| 61 | WB2X2248 | Toggle |
|
- | |||||
| 62 | WB7X695 | Trim Window |
|
- | |||||
| 62 | WB1X239 | Hex Nut Pal |
|
- | |||||
| 63 | WB55X227 | Spacer Insulation |
|
- | |||||
| 63 | WB2X1867 | Clip Anti-wobble |
|
- | |||||
| 64 | WB55X223 | Guard Insulation |
|
- | |||||
| 65 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 65 | WB36X270 | Window |
|
- | |||||
| 66 | WB55X327 | Liner - Lock Cvr. Asm.(0 |
|
- | |||||
| 66 | WB55X342 | Liner - Lock Cover A |
|
- | |||||
| 66 | WB55X229 | Liner - Lock Cvr.asm.(02 |
|
- | |||||
| 67 | WB9X99 | Spring |
|
- | |||||
| 68 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 68 | WB2X2252 | Guide Asm. Lh |
|
- | |||||
| 68 | WB2X2251 | Guide Asm. Rh |
|
- | |||||
| 69 | WB55X218 | Shield |
|
- | |||||
| 70 | WZ05X0179 | Scr 8-32 M Pt 1/4 S |
|
- | |||||
| 70 | WB2X2272 | Arm Rh |
|
- | |||||
| 70 | WB2X2273 | Arm Lh |
|
- | |||||
| 71 | WB2X2255 | Slide |
|
- | |||||
| 72 | WB2X2256 | Side Clip |
|
- | |||||
| 73 | WZ02X0513 | Screw |
|
- | |||||
| 74 | WB2X2269 | Stop Insulation |
|
- | |||||
| 74 | WB4X231 | Screw Mt. Stop |
|
- | |||||
| 75 | WB2X2274 | Seal Door |
|
- | |||||
| 76 | WB2X1132 | Clip Cap Tube Upper Oven |
|
- | |||||
| 77 | WB36X277 | Crystal |
|
- | |||||
| 78 | WB2X2257 | Gasket |
|
- | |||||
| 79 | WB7X693 | Trim |
|
- | |||||
| 80 | WZ04X0209 | Handle Screw |
|
- | |||||
| 80 | WB2X2275 | Clip Crystal |
|
- | |||||
| 81 | WB55X230 | Liner Small (02) |
|
- | |||||
| 81 | WB55X326 | Liner Small (03-up) |
|
- | |||||
| 81 | WB2X2270 | Insulation |
|
- | |||||
| 81 | WB2X2276 | Reflector Foil |
|
- | |||||
| 82 | WB2X3138 | Gasket Door |
|
- | |||||
| 82 | WB2X2076 | Gasket (02-03) |
|
- | |||||
| 83 | WB2X1797 | Chnl. Long Side (02-03) |
|
- | |||||
| 84 | WB2X1796 | Chnl. Short Side (02-03) |
|
- | |||||
| 84 | WB2X2009 | Chnl. Short Btm. (02-03) |
|
- | |||||
| 85 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 85 | WB2X1801 | Bracket (02-03) |
|
- | |||||
| 86 | WB2X2259 | Bracket (02-03) |
|
- | |||||
| 87 | WB2X1835 | Washer (02-03) |
|
- | |||||
| 88 | WZ04X0249 | Scr 8-18 Ab Ovr 3/4 S |
|
- | |||||
| 88 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 89 | WB2X1799 | Pin |
|
- | |||||
| 90 | WB2X2941 | Bracket Gskt. (04-up) |
|
- | |||||
| 90 | WB1X455 | Speednut, Clamp |
|
- | |||||
| 90 | WB2X2271 | Trim Clip(all Bc Models) |
|
- | |||||
| 90 | WB2X1800 | Retainer Ring |
|
- | |||||
| 90 | WZ10X0016 | Washer |
|
- | |||||
| 90 | WZ04X0327 | Screw Mt. Brkt. (04-up) |
|
- | |||||
| 90 | WB9X89 | Strike |
|
- | |||||
| 90 | WB7X696 | Trim(all Bc Models) |
|
- | |||||
| 92 | WB10X120 | Support Hinge Rh |
|
- | |||||
| 92 | WB10X121 | Support Hinge Lh |
|
- | |||||
| 93 | WB1X351 | Screw Mt. Support |
|
- | |||||
| 94 | WB2X1460 | Guide Lever Lower Oven |
|
- | |||||
| 95 | WB2X1983 | Spring Hinge Lever |
|
- | |||||
| 96 | WB2X1462 | Roller |
|
- | |||||
| 96 | WB2X2794 | Sleeve Roller |
|
- | |||||
| 97 | WB1X524 | Screw |
|
- | |||||
| 98 | WB2X1115 | Pin In Lever |
|
- | |||||
| 98 | WB10X122 | Hinge Lever Rh |
|
- | |||||
| 98 | WB2X1116 | Stud In Lever |
|
- | |||||
| 98 | WB2X1117 | Spring In Lever |
|
- | |||||
| 98 | WB10X123 | Hinge Lever Lh |
|
- | |||||
| 99 | WB2X1081 | Pin Hinge |
|
- | |||||
| 100 | WB2X1082 | Ring Retaining |
|
- | |||||
| 101 | WZ10X0017 | Washer |
|
- | |||||
| 102 | WB9X101 | Door Spring (2) |
|
- | |||||
| 103 | WB9X127 | Link |
|
- | |||||
| 104 | WB24X105 | Switch |
|
- | |||||
| 105 | WB55X302 | Guard Bottom |
|
- | |||||
| 105 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 107 | WB21X180 | Relay, H.w. |
|
- | |||||
| 107 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 108 | WB59X167 | Channel Bottom |
|
- | |||||
| 109 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 109 | WB2X2401 | Channel Side |
|
- | |||||
| 110 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 110 | WB49X265 | Back |
|
- | |||||
| 112 | WB2X2847 | Shield Wire |
|
- | |||||
| 113 | WB2X2402 | Guard Wire |
|
- | |||||
| 114 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 114 | WB59X164 | Side Inner |
|
- | |||||
| 117 | WB2X2846 | Bracket Fan |
|
- | |||||
| 117 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 118 | WB2X1981 | Brace Latch |
|
- | |||||
| 118 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 119 | WB55X303 | Air Shield |
|
- | |||||
| 119 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 120 | WB26X17 | Fan Motor |
|
- | |||||
| 121 | WB2X2001 | Blade Fan, Upper |
|
- | |||||
| 121 | WR2X3198 | Ring Compression |
|
- | |||||
| 122 | WZ05X0131 | Screw Mt. Mostor To Brkt |
|
- | |||||
| 122 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 122 | WB2X2846 | Bracket Fan |
|
- | |||||
| 123 | WB55X304 | Extension Side Rh |
|
- | |||||
| 123 | WB55X305 | Extension Side Lh |
|
- | |||||
| 124 | WB2X2848 | Gasket |
|
- | |||||
| 125 | WB2X2849 | Gasket Support |
|
- | |||||
| 126 | WB1X523 | Rivet Push Mtg. Gasket |
|
- | |||||
| 127 | WB2X2845 | Cover Light |
|
- | |||||
| 128 | WB2X2842 | Plate Adapter |
|
- | |||||
| 129 | WB2X2843 | Clamp Conduit |
|
- | |||||
| 130 | WB2X2844 | Guard Thermostat |
|
- | |||||
| 131 | WB49X268 | Guard Terminal |
|
- | |||||
| 133 | WZ04X0282 | Screw Mt. Brkt. To Top |
|
- | |||||
| 133 | WB20X44 | Transformer |
|
- | |||||
| 134 | WB17X125 | Terminal Block |
|
- | |||||
| 134 | WZ04X0280 | Screw 8-18 Hxw |
|
- | |||||
| 135 | WB24X160 | Switch, Temp. Limit |
|
- | |||||
| 136 | WB2X2826 | Bracket |
|
- | |||||
| 137 | WB2X2827 | Support |
|
- | |||||
| 138 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 138 | WB59X165 | Guard Wire |
|
- | |||||
| 139 | WB55X204 | Insul. Guard Rh |
|
- | |||||
| 140 | WB2X2408 | Vent Cover |
|
- | |||||
| 141 | WB59X166 | Ins. Guard Lh |
|
- | |||||
| 142 | WB2X1986 | Barrier |
|
- | |||||
| 142 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 143 | WB2X2104 | Spacer |
|
- | |||||
| 144 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 144 | WB49X270 | Case Top |
|
- | |||||
| 145 | WZ05X0128 | Screw Mt. Support |
|
- | |||||
| 145 | WB2X1165 | Cover |
|
- | |||||
| 146 | WB24X134 | Thermostat, Dual |
|
- | |||||
| 147 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 167 | WZ04X0294 | Screw 8--18x1/2 Hex-wash |
|
- | |||||
| 170 | WB14X5035 | Latch |
|
- | |||||
| 171 | WZ02X0503 | Screw |
|
- | |||||
| 172 | WZ04X0256 | Screw Mt. Guide L.l.h. - |
|
- | |||||
| 173 | WB15X98 | Handle |
|
- | |||||
| 174 | WB1X438 | Screw Washer Asm |
|
- | |||||
| 175 | WB3X268 | Knob |
|
- | |||||
| 176 | WB2X2118 | Knob Retainer |
|
- | |||||
| 177 | WB2X1822 | Pivot Stud |
|
- | |||||
| 178 | WB2X1800 | Retainer Ring |
|
- | |||||
| 179 | WB2X2073 | Channel Latch Up.ltch. |
|
- | |||||
| 179 | WB2X2037 | Channel Latch-lower Latc |
|
- | |||||
| 180 | WB2X2035 | Bracket Mounting |
|
- | |||||
| 181 | WB2X2032 | Locking Lever |
|
- | |||||
| 181 | WZ04X0289 | Scr 8-18 Ab Hx 1/4 S |
|
- | |||||
| 182 | WB1X428 | Screw |
|
- | |||||
| 183 | WZ09X0014 | Rivet |
|
- | |||||
| 184 | WB24X125 | Solenoid |
|
- | |||||
| 185 | WZ02X0500 | Screw Mt. Coil |
|
- | |||||
| 186 | WB2X2036 | Lock Bar-lower Latch |
|
- | |||||
| 186 | WB2X2072 | Lock Bar-upper Latch |
|
- | |||||
| 187 | WB24X131 | Switch |
|
- | |||||
| 188 | WB2X2114 | Barrier Switch |
|
- | |||||
| 189 | WB2X2033 | Barrier |
|
- | |||||
| 189 | WB24X130 | Switch Latch Slide |
|
- | |||||
| 190 | WB2X2034 | Switch Actuator |
|
- | |||||
| 191 | WZ05X0152 | Screw Mt. Switch |
|
- | |||||
| 192 | WB2X1422 | Harness Clamp |
|
- | |||||
| 193 | WB2X2056 | Bracket |
|
- | |||||
| 194 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 195 | WB2X2119 | Bracket |
|
- | |||||
| 195 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 199 | WB53X197 | Oven Liner (03-up) |
|
- | |||||
| 199 | WB2X2116 | Insulation |
|
- | |||||
| 199 | WB53X155 | Oven Liner (02) |
|
- | |||||
| 201 | WB9X88 | Lockwasher |
|
- | |||||
| 202 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 203 | WZ04X0292 | Screw Mt. Cover |
|
- | |||||
| 204 | WB2X1847 | Washer Mt. Cover |
|
- | |||||
| 205 | WB2X1659 | Speednut |
|
- | |||||
| 206 | WB21X158 | Sensor, Oven |
|
- | |||||
| 207 | WB2X2825 | Sensor Gasket |
|
- | |||||
| 208 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 210 | WB2X1815 | Gasket Elim. Btm. |
|
- | |||||
| 211 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 212 | WB2X1847 | Washer Mt. Cover |
|
- | |||||
| 213 | WB2X996 | Trim Clip |
|
- | |||||
| 214 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 216 | WB2X1977 | Lamp Housing |
|
- | |||||
| 217 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 218 | WB8X159 | Lamp Socket |
|
- | |||||
| 219 | WB2X2028 | Slide |
|
- | |||||
| 220 | WB2X1994 | Fastener - Slide |
|
- | |||||
| 222 | WB48X83 | Rack-reversible |
|
- | |||||
| 223 | WB49X88 | Broil Pan |
|
- | |||||
| 224 | WB48X35 | Broil Pan Rack |
|
- | |||||
| 226 | WB38X64 | Vent |
|
- | |||||
| 226 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 227 | WB20X49 | Receptacle Meat Mtr. (09 |
|
- | |||||
| 227 | WB20X32 | Receptacle Meat Mtr. (06 |
|
- | |||||
| 228 | WB20X50 | Meat Probe (09-up) |
|
- | |||||
| 228 | WB20X41 | Meat Probe (06,07,08) |
|
- | |||||
| 229 | WB2X1925 | Cover Roto Opening |
|
- | |||||
| 230 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 231 | WB2X818 | Cover Vent |
|
- | |||||
| 232 | WB2X1623 | Gasket, Vent |
|
- | |||||
| 232 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 250 | UB323 | Bake Unit 236v (Replaces: WB44X160) |
|
Immediately | $ 41.80 | ||||
| 250 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 251 | UT095 | Unit Asm Broil (Replaces: WB44X173) |
|
Immediately | $ 49.95 | ||||
| 251 | WB44X168 | Broil Unit 208v U.o. |
|
- | |||||
| 251 | WB2X1543 | Gasket - Broil |
|
- | |||||
| 251 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 252 | WB2X1452 | Support Broil |
|
- | |||||
| 253 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 254 | WB49X124 | Reflector Boil |
|
- | |||||
| 257 | WB44X162 | Mullion Unit |
|
- | |||||
| 550 | WB26X21 | Rotisserie Motor |
|
- | |||||
| 551 | WB2X2280 | Gasket, Thin |
|
- | |||||
| 551 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 551 | WB2X2095 | Gasket Foil |
|
- | |||||
| 551 | WB2X2071 | Gasket, Thick |
|
- | |||||
| 552 | WB48X62 | Spit Support |
|
- | |||||
| 553 | WB2X1166 | Spitblade |
|
- | |||||
| 554 | WB2X1167 | Skewer Asm |
|
- | |||||
| 555 | WB1X272 | Screw Thumb |
|
- | |||||
| 556 | WB15X80 | Handle Spit |
|
- | |||||
| 600 | WB29X35 | Smoke Elim (03 - Up) |
|
- | |||||
| 601 | WB2X2012 | Spacer |
|
- | |||||
| 602 | WB2X2013 | Terminal Block |
|
- | |||||
| 603 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 901 | WB56X1023 | Frame Asm. |
|
- |
