SELECT A DIAGRAM

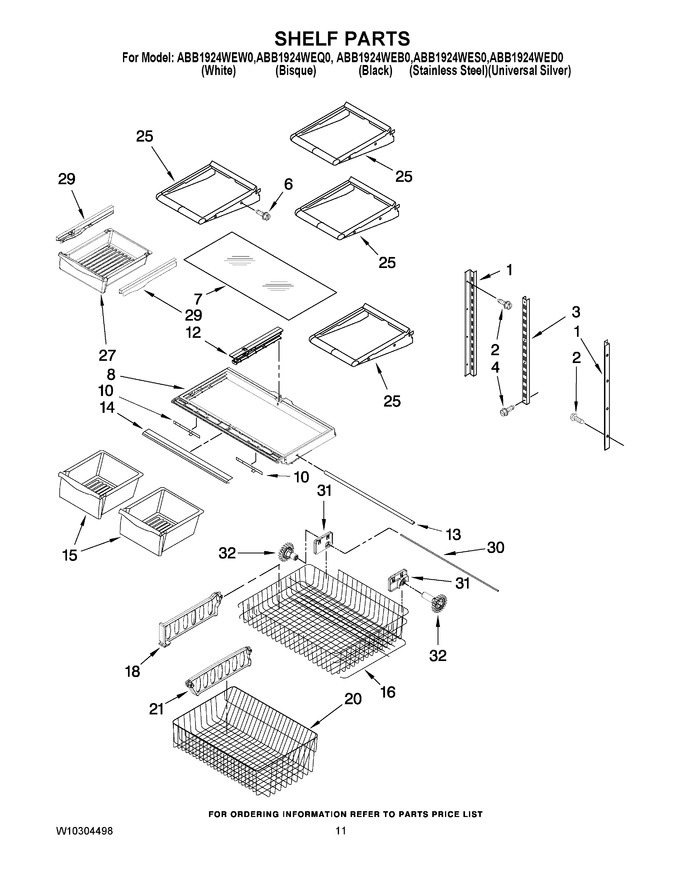

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251970		Ladder, Side				$ 28.47
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
3	W10273463		Ladder, Center				$ 28.20
4	W10215666		Screw				$ 9.08
6	W11233072		Screw   (Replaces: 12990302SP)			Immediately	$ 14.02
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.81
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 112.82
13	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 106.29
14	W10231337		Trim, Crisper				$ 47.70
15	W10833528		Pan, Crisper   (Replaces: 12531305)			Immediately	$ 139.95
16	W10169953		Basket, Freezer (upper)		Appelez-nous	-
18	W10241046		Divider, Basket (upper)			Immediately	$ 27.80
20	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 230.45
21	W10205416		Divider, Basket Lower		Appelez-nous	-
25	W11402522		Frame, Shelf   (Replaces: 12463608)				$ 203.51
27	WP67001308		Pan   (Replaces: 12656504SP)			Immediately	$ 138.10
29	WP67001053		Glide, Deli (right)   (Replaces: 12656602SP)			Immediately	$ 9.24
29	WP67001054		Glide, Deli (left)   (Replaces: 12656601SP)			Immediately	$ 8.40
30	12812906WD		Shaft, Rack				$ 42.54
31	W10348260		Mount, Gear (right)   (Replaces: W10233899)				$ 85.62
31	W10348259		Mount, Gear (left)   (Replaces: W10233898)				$ 85.59
32	WPW10474716		Gear (short-left)   (Replaces: W10158749)			Immediately	$ 30.88
32	WPW10474715		Gear (long-right)   (Replaces: W10146446)			Immediately	$ 31.20

    View Diagram in Separate Window       Print Part List
