SELECT A DIAGRAM
1 - Component Group
2 - Component Group
New Model Search:

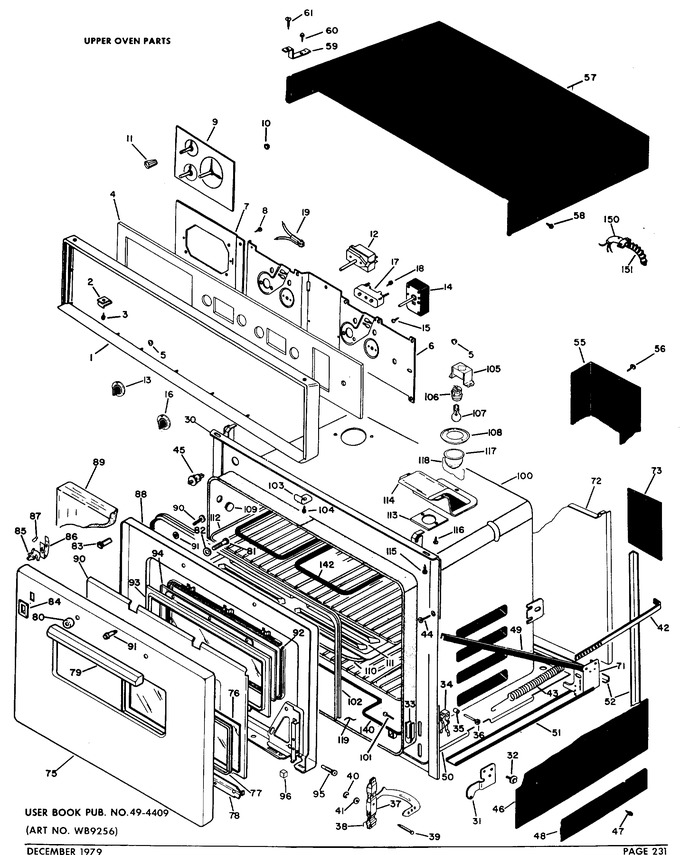

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB7X1121 | Trim Control |
|
- | |||||
| 2 | WB2X1119 | Speednut |
|
- | |||||
| 3 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 4 | WB36X537 | Crystal |
|
- | |||||
| 5 | WB1X5221 | Nut |
|
- | |||||
| 6 | WB2X1632 | Bracket Instrument |
|
- | |||||
| 7 | WB2X1392 | Bracket Timer |
|
- | |||||
| 8 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 9 | WB19X127 | Timer |
|
- | |||||
| 10 | WB1X540 | Nut |
|
- | |||||
| 11 | WB3X459 | Knob Timer |
|
- | |||||
| 12 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 12 | WB22X5134 | Switch, Oven L.o. (Replaces: WB22X27) |
|
- | |||||
| 13 | WB3X474 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X1394 | Sleeve |
|
- | |||||
| 13 | WB2X177 | Thermostat - Upper Oven |
|
- | |||||
| 13 | WB2X596 | Clip Cap Tube |
|
- | |||||
| 13 | WB2X1131 | Clip Thermostat Tube To |
|
- | |||||
| 13 | WB21X178 | Thermostat, L.o. |
|
- | |||||
| 15 | WB3X470 | Knob Thermostat |
|
- | |||||
| 15 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 17 | WB17X167 | Block Term Distribution |
|
- | |||||
| 18 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 19 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 30 | WB56X1326 | Frame |
|
- | |||||
| 31 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 31 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 32 | WZ06X0086 | Scr 10-24 M Hx 5/16 S |
|
- | |||||
| 33 | WB2X1460 | Guide Lever Lower Oven |
|
- | |||||
| 34 | WB2X1461 | Spring Hinge Lever |
|
- | |||||
| 35 | WB2X1462 | Roller |
|
- | |||||
| 36 | WB1X352 | Screw |
|
- | |||||
| 37 | WB10X151 | Hinge Lever Rh Lh |
|
- | |||||
| 38 | WB9X150 | Spring Stop |
|
- | |||||
| 39 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 40 | WB2X1082 | Ring Retaining |
|
- | |||||
| 41 | WZ10X0017 | Washer |
|
- | |||||
| 42 | WB2X3289 | Link Door Spring |
|
- | |||||
| 43 | WB9X151 | Spring Door |
|
- | |||||
| 44 | WB1X295 | Screw 1-1/4" |
|
- | |||||
| 44 | WB1X292 | Screw 3/4" |
|
- | |||||
| 45 | WB24X105 | Switch |
|
- | |||||
| 46 | WB59X105 | Guard Side |
|
- | |||||
| 47 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 48 | WB59X106 | Cover Side |
|
- | |||||
| 49 | WB59X68 | Channel Side |
|
- | |||||
| 50 | WB59X154 | Guard Insulation |
|
- | |||||
| 50 | WB59X69 | Guard Bottom |
|
- | |||||
| 51 | WB59X107 | Channel Bottom |
|
- | |||||
| 51 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 52 | WB59X71 | Angle Rear |
|
- | |||||
| 55 | WB59X64 | Guard Terminal |
|
- | |||||
| 56 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 57 | WB59X168 | Case Top |
|
- | |||||
| 59 | WB2X1457 | Bracket Trim |
|
- | |||||
| 60 | WZ04X0362 | Screw 10-16 X 1/4" Hex |
|
- | |||||
| 61 | WZ04X0369 | Screw Mtg Trim |
|
- | |||||
| 71 | WB59X108 | Gusset |
|
- | |||||
| 72 | WB59X136 | Guard |
|
- | |||||
| 73 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 73 | WB59X137 | Cover |
|
- | |||||
| 75 | WB56X1360 | Door Panel Ad |
|
- | |||||
| 75 | WB56X1356 | Door Panel Wh |
|
- | |||||
| 75 | WB56X1357 | Panel - Cf |
|
- | |||||
| 75 | WB56X1358 | Panel - Fa |
|
- | |||||
| 75 | WB56X1359 | Door Panel Ha |
|
- | |||||
| 76 | WB36X430 | Crystal Window |
|
- | |||||
| 77 | WB7X1031 | Trim Crystal |
|
- | |||||
| 78 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 78 | WB2X3282 | Clip Crystal |
|
- | |||||
| 79 | WB15X94 | Handle |
|
- | |||||
| 80 | WB2X1404 | Spacer |
|
- | |||||
| 81 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 82 | WB1X119 | Washer Contoured |
|
- | |||||
| 83 | WB2X6204 | Spacer Panel |
|
- | |||||
| 84 | WB7X5022 | Trim Plate Lower Oven |
|
- | |||||
| 85 | WB2X5410 | Cam |
|
- | |||||
| 86 | WB9X5083 | Cam Spring |
|
- | |||||
| 87 | WB2X5217 | Cam Link |
|
- | |||||
| 88 | WB55X143 | Liner |
|
- | |||||
| 89 | WB2X3283 | Insulation Door |
|
- | |||||
| 90 | WB55X403 | Guard Insulation |
|
- | |||||
| 91 | WB1X547 | Scr 8-18 Ba Ihw 13/16 S |
|
- | |||||
| 92 | WB2X3048 | Gasket Window |
|
- | |||||
| 93 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 93 | WB2X3284 | Frame Window |
|
- | |||||
| 94 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 95 | WB1X558 | Screw Nail Point |
|
- | |||||
| 96 | WB2X3285 | Pad |
|
- | |||||
| 100 | WB2X3417 | Insulation |
|
- | |||||
| 100 | WB53X249 | Oven Liner |
|
- | |||||
| 100 | WB2X596 | Clip Cap Tube |
|
- | |||||
| 101 | WB1X556 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 102 | WB2X2058 | Gasket Silicone |
|
- | |||||
| 103 | WB2X2482 | Trim Clip |
|
- | |||||
| 104 | WZ04X0221 | Screw |
|
- | |||||
| 105 | WB2X3447 | Bracket Support |
|
- | |||||
| 106 | WB8X191 | Receptacle |
|
- | |||||
| 108 | WB2X3448 | Trim Lamp |
|
- | |||||
| 109 | WB2X1125 | Plug Button |
|
- | |||||
| 109 | WB2X2831 | Plug Button,shield Shape |
|
- | |||||
| 110 | WB49X88 | Broil Pan |
|
- | |||||
| 111 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 112 | WB48X73 | Rack Oven |
|
- | |||||
| 113 | WB38X61 | Gasket Vent |
|
- | |||||
| 114 | WB38X62 | Vent Asm |
|
- | |||||
| 115 | WR2X561 | Screw |
|
- | |||||
| 116 | WB1X275 | Screw - Vent Liner |
|
- | |||||
| 117 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 118 | WB2X2885 | Bail |
|
- | |||||
| 140 | WB44X192 | Bake Unit 208/240v |
|
- | |||||
| 140 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 142 | WB2X1452 | Support Broil |
|
- | |||||
| 142 | UT316 | Broil Unit 208/240v (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 150 | WB2X3014 | Clamp Conduit |
|
- | |||||
| 151 | WB2X1409 | Sleeve Conduit |
|
- |
