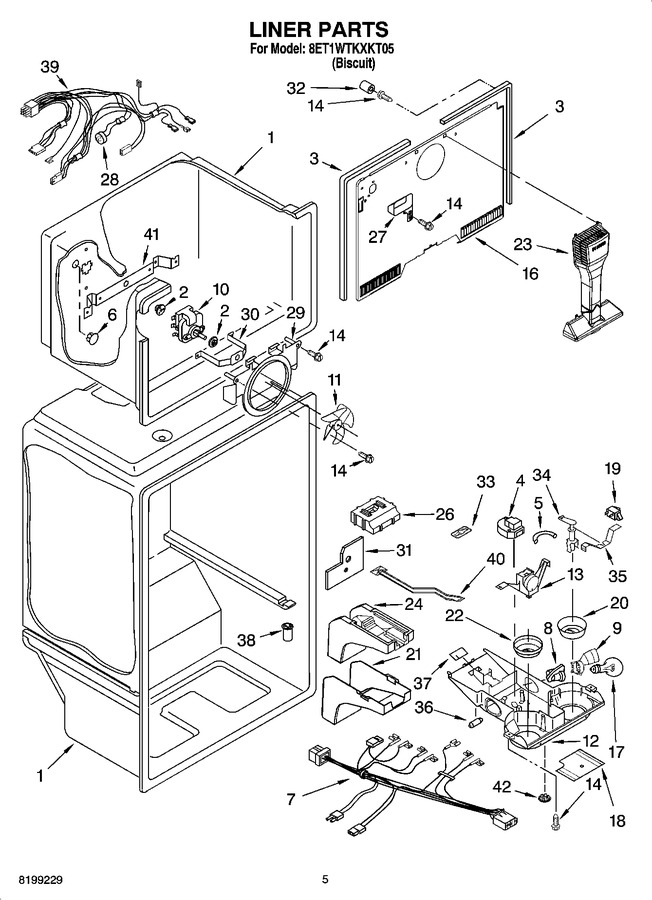

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | 2212769 | Timer, Defrost |
|
- | |||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | 2187880 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | WP2175210 | Shroud, Light (2) (Replaces: 2175210) |
|
$ 86.74 | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2219660) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | 2302167 | Control Box |
|
- | |||||
| 13 | 2200859 | Thermostat Assy. (includes Item 5) |
|
$ 114.36 | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 16 | 2254263 | Cover, Evaporator |
|
- | |||||
| 17 | 4396822 | Light Bulb (2) (Replaces: 850166) |
|
Immediately | $ 13.58 | ||||
| 18 | 2201082 | Shield, Heat |
|
- | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | 2176297 | Knob, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 31.91 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 108.24 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 131.03 | ||||
| 26 | 2204690 | Air Diffuser, Top |
|
$ 135.07 | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 28 | WP4387503 | Bimetal Defrost (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2214979 | Bracket, Evap. Fan, Front |
|
$ 56.05 | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.67 | |||||
| 33 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 34 | 2179859 | Post, Damper |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | 2200831 | Weight, Thermal |
|
- | |||||
| 37 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 10.01 | |||||
| 38 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 99.15 | |||||
| 39 | 2187690 | Wire Assembly, Freezer Compartment (includes Item 28) |
|
- | |||||
| 40 | 2179858 | Damper, Air |
|
- | |||||
| 41 | 2214976 | Bracket, Evap. Fan, Rear |
|
$ 29.44 | |||||
| 42 | 940014 | Hole Plug, Control Box |
|
$ 18.33 |
