SELECT A DIAGRAM

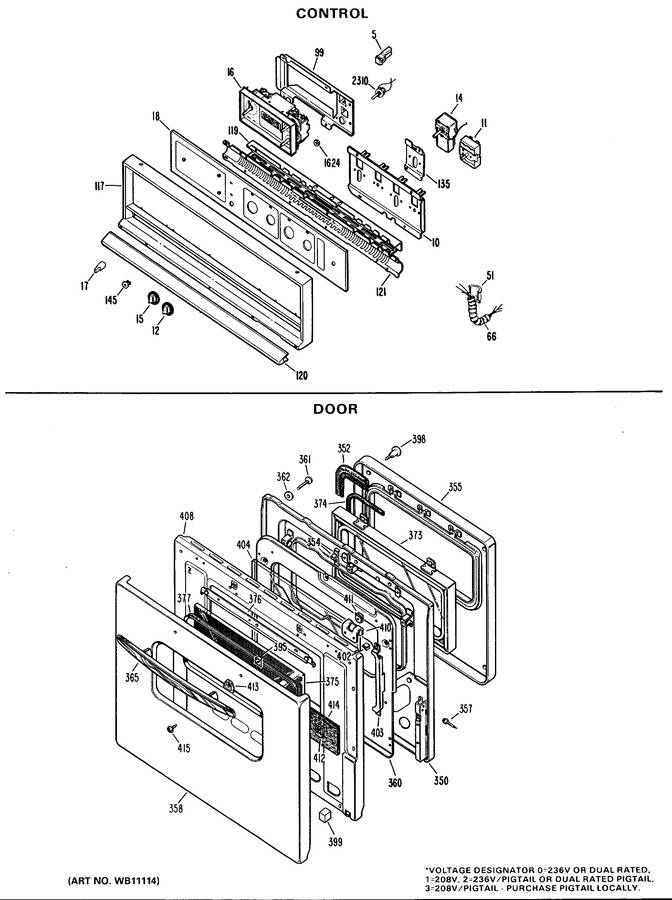

1 - Control
2 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X3453 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5141 | Switch, Oven |
|
- | |||||
| 12 | WB3X5683 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 15 | WB3X5686 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5282 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5588 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 51 | WB2X2843 | Clamp Conduit |
|
- | |||||
| 66 | OBT LOCAL | Flexible Conduit 3/8"x48 |
|
- | |||||
| 99 | WB2X7720 | Bracket Timer |
|
- | |||||
| 117 | WB7X1122 | Trim |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 120 | WB7X1123 | Nose Control Trim |
|
- | |||||
| 121 | WB7X635 | Grille |
|
- | |||||
| 135 | WB2X1949 | Plate Instrument |
|
- | |||||
| 145 | WB2X3429 | Trim Switch |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB55X5299 | Panel Inner |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X6069 | Door Panel Ad |
|
- | |||||
| 358 | WB56X6067 | Door Panel Wh |
|
- | |||||
| 358 | WB56X6068 | Door Panel Ha |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X152 | Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 375 | WB36X5478 | Crystal Window |
|
- | |||||
| 376 | WB2X2978 | Clip Crystal |
|
- | |||||
| 377 | WB7X1031 | Trim Crystal |
|
- | |||||
| 395 | WB2X3323 | Speednut |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 408 | WB56X1390 | Panel Middle Door Ad |
|
- | |||||
| 408 | WB56X1389 | Panel Middle Door Ha |
|
- | |||||
| 408 | WB56X1386 | Panel Middle Door Wh |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 413 | WB2X3322 | Shield Door Handle |
|
- | |||||
| 414 | WB2X7207 | Reflector |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 520 | WB53X5124 | Oven Liner |
|
- | |||||
| 520 | WB2X2116 | Insulation |
|
- | |||||
| 520 | WB2X1125 | Plug Button Cap Tube |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 2023 | WB55X302 | Guard Bottom |
|
- | |||||
| 2310 | WB24X5237 | Switch |
|
- | |||||
| 32767 | 49-4771 | Manual Users |
|
- | |||||
| 32767 | 31-0473 | Install Instructions |
|
- |
