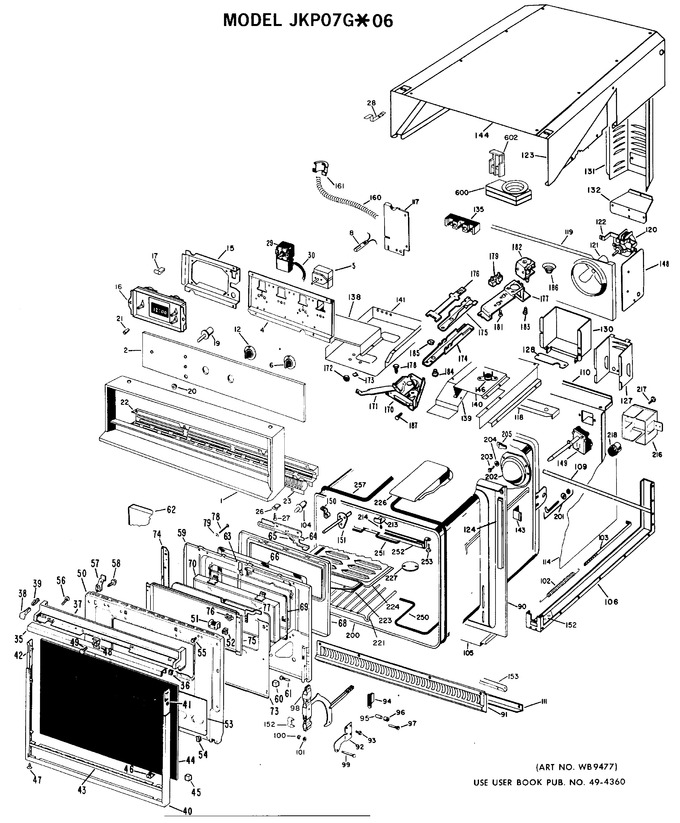

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB2X3297 | Spacer |
|
- | |||||
| 1 | WB7X1122 | Trim |
|
- | |||||
| 1 | WB7X1123 | Nose Control Trim |
|
- | |||||
| 1 | WZ05X0226 | Screw Mt. Nose |
|
- | |||||
| 2 | WB36X560 | Crystal |
|
- | |||||
| 4 | WB2X3171 | Instrument Bracket |
|
- | |||||
| 4 | WB1X538 | Nut Mtg. Brkt. |
|
- | |||||
| 5 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 5 | WB22X5085 | Switch Oven |
|
- | |||||
| 6 | WB3X465 | Knob Oven Switch |
|
- | |||||
| 8 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 8 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 12 | WB3X466 | Knob Thermostat |
|
- | |||||
| 15 | WB1X538 | Nut Mtg. Brkt. |
|
- | |||||
| 15 | WB2X3405 | Bracket Timer |
|
- | |||||
| 16 | WB19M160CP | Timer Digital (Replaces: WB19X5231) |
|
- | |||||
| 16 | WB1X540 | Nut |
|
- | |||||
| 17 | WB2X2006 | Clamp Harness |
|
- | |||||
| 19 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 20 | WB2X1838 | Trim - Switch |
|
- | |||||
| 21 | WB3X4459 | Knob Timer |
|
- | |||||
| 22 | WB2X1973 | Deflector |
|
- | |||||
| 23 | WB7X635 | Grille |
|
- | |||||
| 23 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 26 | WB1X544 | Speednut - Mt. Trim To F |
|
- | |||||
| 27 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 28 | WB2X3291 | Bracket Trim |
|
- | |||||
| 28 | WZ04X0369 | Screw Mtg Trim |
|
- | |||||
| 28 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 29 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 29 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 29 | WB2X5545 | Bracket Thermostat |
|
- | |||||
| 30 | WB2X6937 | Sleeve |
|
- | |||||
| 35 | WB15X153 | Grip Asm Handle |
|
- | |||||
| 36 | WB1X579 | Speednut |
|
- | |||||
| 37 | WB7X1151 | Trim Top Door |
|
- | |||||
| 38 | WB2X3337 | Plunger Door Light |
|
- | |||||
| 39 | WB9X157 | Spring Plunger |
|
- | |||||
| 40 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 41 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 42 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 43 | WB2X3336 | Brace Bottom |
|
- | |||||
| 44 | WB36X557 | Glass Black |
|
- | |||||
| 45 | WB2X3285 | Pad |
|
- | |||||
| 46 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 47 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 48 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 49 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 50 | WB55X419 | Panel Middle Door |
|
- | |||||
| 51 | WB2X3310 | Bracket Panel |
|
- | |||||
| 52 | WB1X439 | Speednut Bracket |
|
- | |||||
| 53 | WB36X540 | Crystal Window |
|
- | |||||
| 54 | WB2X3332 | Clip Crystal |
|
- | |||||
| 55 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 56 | WZ04X0410 | Screw Mt. Grip |
|
- | |||||
| 57 | WB9X153 | Spring Toggle |
|
- | |||||
| 58 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 59 | WB55X406 | Liner |
|
- | |||||
| 60 | WB2X3285 | Pad |
|
- | |||||
| 61 | WB1X558 | Screw Nail Point |
|
- | |||||
| 62 | WB2X3312 | Insulation Door |
|
- | |||||
| 62 | WB2X3314 | Reflector Panel |
|
- | |||||
| 63 | WB9X154 | Strike Spring |
|
- | |||||
| 64 | WB2X3315 | Cover - Guard Asm. |
|
- | |||||
| 65 | WB9X128 | Spring - Guard |
|
- | |||||
| 66 | WG02L02006 | Gasket - Door Fibreglass (Replaces: WB2X2614) |
|
Immediately | $ 60.44 | ||||
| 68 | WB2X3313 | Insulation Door |
|
- | |||||
| 68 | WB1X600 | Scr Shoulder |
|
- | |||||
| 68 | WB2X2276 | Reflector Foil |
|
- | |||||
| 68 | WB55X425 | Panel - Inner |
|
- | |||||
| 69 | WB2X3084 | Bracket Switch |
|
- | |||||
| 70 | WB36X448 | Window |
|
- | |||||
| 70 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 73 | WB49X354 | Guard Insulation |
|
- | |||||
| 73 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 74 | WB2X3317 | Track - Spring Rh |
|
- | |||||
| 74 | WB2X3318 | Track - Spring Lh |
|
- | |||||
| 75 | WB55X408 | Shield |
|
- | |||||
| 76 | WB2X3040 | Slide Shield |
|
- | |||||
| 76 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 76 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 77 | WB2X3320 | Handle Lh |
|
- | |||||
| 77 | WB2X3319 | Handle Rh |
|
- | |||||
| 78 | WZ04X0386 | Screw 10-16 X 3/4" Pan |
|
- | |||||
| 79 | WB1X119 | Washer Contoured |
|
- | |||||
| 90 | WB56X1327 | Frame |
|
- | |||||
| 91 | WB7X636 | Trim Bottom |
|
- | |||||
| 91 | WZ04X0237 | Screw |
|
- | |||||
| 92 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 92 | WB10X514 | Hinge Support - Rh |
|
- | |||||
| 93 | WZ06X0086 | Scr 10-24 M Hx 5/16 S |
|
- | |||||
| 94 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 95 | WB2X3305 | Sleeve Roller |
|
- | |||||
| 96 | WB2X3304 | Roller |
|
- | |||||
| 97 | WB1X524 | Screw |
|
- | |||||
| 98 | WB2X3403 | Clip Shim |
|
- | |||||
| 98 | WB10X158 | Hinge Lever Rh Lh |
|
- | |||||
| 99 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 100 | WB2X1082 | Ring Retaining |
|
- | |||||
| 101 | WZ10X0017 | Washer |
|
- | |||||
| 102 | WB9X156 | Spring Door |
|
- | |||||
| 103 | WB2X3289 | Link Door Spring |
|
- | |||||
| 104 | WB2X3421 | Barrier |
|
- | |||||
| 104 | WB24X105 | Switch |
|
- | |||||
| 105 | WB55X302 | Guard Bottom |
|
- | |||||
| 106 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 106 | WB59X163 | Channel Bottom |
|
- | |||||
| 109 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 109 | WB2X2401 | Channel Side |
|
- | |||||
| 110 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 110 | WB49X327 | Back Asm |
|
- | |||||
| 111 | WB2X2082 | Bracket Trim |
|
- | |||||
| 114 | WB59X164 | Side Inner |
|
- | |||||
| 117 | WB2X2858 | Extension Air Shield |
|
- | |||||
| 118 | WB2X2083 | Brace Latch |
|
- | |||||
| 119 | WB55X303 | Air Shield |
|
- | |||||
| 119 | WB2X6426 | Pad Transformer |
|
- | |||||
| 120 | WB26X5052 | Motor, Fan |
|
- | |||||
| 121 | WB72X2001 | Fan Blade |
|
- | |||||
| 121 | WB2X2002 | Compression Ring |
|
- | |||||
| 122 | WB2X2846 | Bracket Fan |
|
- | |||||
| 122 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 123 | WB55X305 | Extension Side Lh |
|
- | |||||
| 123 | WB55X304 | Extension Side Rh |
|
- | |||||
| 124 | WB2X3422 | Gasket |
|
- | |||||
| 127 | WB2X2845 | Cover Light |
|
- | |||||
| 128 | WB2X2842 | Plate Adapter |
|
- | |||||
| 130 | WB2X3156 | Guard Asm |
|
- | |||||
| 131 | WB49X268 | Guard Terminal |
|
- | |||||
| 132 | WB49X223 | Cap Terminal Guard |
|
- | |||||
| 135 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 138 | WB59X165 | Guard Wire |
|
- | |||||
| 138 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 139 | WB59X134 | Insulation Guard Rh |
|
- | |||||
| 140 | WB2X3173 | Cover Vent |
|
- | |||||
| 141 | WB5X170 | Insul. Guard - Lh |
|
- | |||||
| 143 | WB2X2104 | Spacer |
|
- | |||||
| 144 | WB49X330 | Case Top |
|
- | |||||
| 146 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 148 | WB2X2847 | Shield Wire |
|
- | |||||
| 149 | WB24X175 | Switch, Thermal |
|
- | |||||
| 150 | WB2X3165 | Hanger-tls |
|
- | |||||
| 151 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 151 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 151 | WB2X3164 | Plate |
|
- | |||||
| 152 | WB2X3403 | Clip Shim |
|
- | |||||
| 153 | WB2X3402 | Support |
|
- | |||||
| 154 | WB2X3423 | Gusset |
|
- | |||||
| 154 | WB2X2861 | Gusset |
|
- | |||||
| 161 | WZ04X0338 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 161 | WB2X2843 | Clamp Conduit |
|
- | |||||
| 170 | WB14X36 | Latch Assembly |
|
- | |||||
| 171 | WB1X438 | Screw Washer Asm |
|
- | |||||
| 171 | WB15X150 | Handle Latch |
|
- | |||||
| 172 | WB3X434 | Knob Latch |
|
- | |||||
| 173 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 174 | WB2X3157 | Channel Latch |
|
- | |||||
| 175 | WB2X3158 | Channel Locking |
|
- | |||||
| 176 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 177 | WB1X458 | Screw, Mtg. Bracket |
|
- | |||||
| 177 | WB2X3160 | Plate-mounting |
|
- | |||||
| 178 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 179 | WB24X183 | Switch, Latch |
|
- | |||||
| 181 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 182 | WB24X197 | Solenoid |
|
- | |||||
| 183 | WB1X438 | Screw Washer Asm |
|
- | |||||
| 184 | WB2X6212 | Pivot Stud |
|
- | |||||
| 185 | WB2X1800 | Retainer Ring |
|
- | |||||
| 186 | WB9X148 | Spring-plunger |
|
- | |||||
| 187 | WZ02X0503 | Screw |
|
- | |||||
| 200 | WB2X2116 | Insulation |
|
- | |||||
| 200 | WB2X3230 | Cover Plate-jack |
|
- | |||||
| 200 | WB2X1125 | Plug Button |
|
- | |||||
| 200 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 200 | WB53X252 | Oven Liner |
|
- | |||||
| 200 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 201 | WB9X88 | Lockwasher |
|
- | |||||
| 202 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 203 | WZ04X0292 | Screw Mt. Cover |
|
- | |||||
| 204 | WB2X1847 | Washer Mt. Cover |
|
- | |||||
| 205 | WB2X1659 | Speednut |
|
- | |||||
| 213 | WB2X3393 | Trim Clip |
|
- | |||||
| 214 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 216 | WB2X3466 | Guard Lamp |
|
- | |||||
| 217 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 218 | WB8X176 | Lamp Socket |
|
- | |||||
| 221 | WB48X82 | Rack Oven |
|
- | |||||
| 223 | WB49X88 | Broil Pan |
|
- | |||||
| 224 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 226 | WB38X75 | Vent Asm |
|
- | |||||
| 227 | WB2X8918 | Cover Vent |
|
- | |||||
| 250 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 250 | UB323 | Bake Unit 208/240v (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 251 | WB2X1543 | Gasket - Broil |
|
- | |||||
| 251 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 251 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 252 | WB2X1810 | Support Broil Unit |
|
- | |||||
| 253 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 257 | WB44X207 | Mullion Unit |
|
- | |||||
| 257 | WB2X3328 | Barrier |
|
- | |||||
| 257 | WB2X3293 | Spacer Mullion |
|
- | |||||
| 257 | WB2X3452 | Terminal Insulator |
|
- | |||||
| 600 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 600 | WB2X3292 | Gasket |
|
- | |||||
| 600 | WB29X53 | Smoke Eliminator Asm |
|
- | |||||
| 602 | WB2X3388 | Terminal Block |
|
- | |||||
| 32767 | WB19M160CP | Timer (Replaces: WB19X5231) |
|
- | |||||
| 32767 | UT316 | Broil Unit 208/240v U.o. (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 32767 | WB21X5320 | Thermostat, Dual U.o. (Replaces: WB24X176) |
|
- | |||||
| 32767 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 32767 | WB24X5138 | Switch, Thermal |
|
- | |||||
| 32767 | WB24X197 | Solenoid L.o. |
|
- | |||||
| 32767 | WB44X207 | Mullion Unit |
|
- | |||||
| 32767 | UB323 | Bake Unit 208/240v U.o. (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 32767 | WB24X108 | Switch Latch Release |
|
- | |||||
| 32767 | WB22X5085 | Switch, Oven U.o. |
|
- | |||||
| 32767 | WB24X199 | Switch Thermal Fan |
|
- |
