SELECT A DIAGRAM

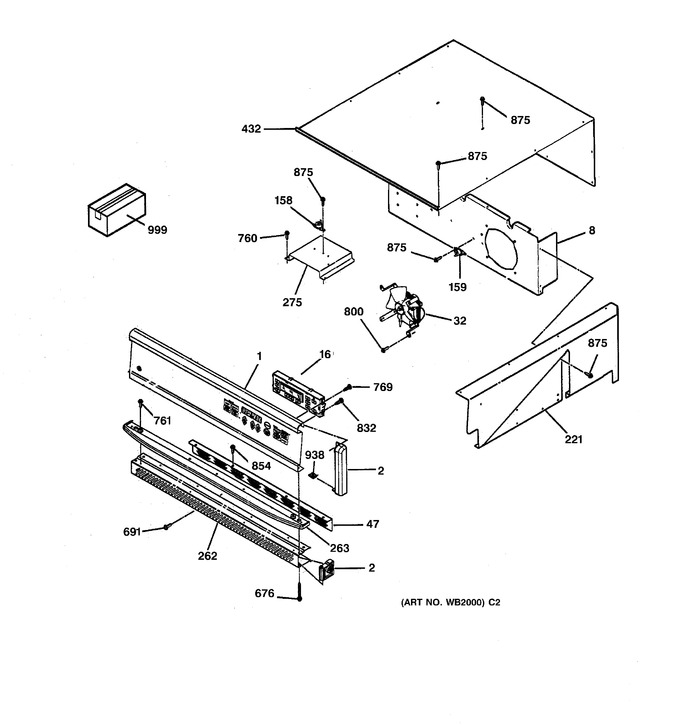

1 - Control Panel


2 - Body Parts


3 - Oven Door


4 - Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5687		Panel Cntl Asm W/oly		Appelez-nous	-
2	WB7K5461		End Cap-lt-almond		Appelez-nous	-
2	WB7K5460		End Cap-rt-almond		Appelez-nous	-
2	WB7K5442		Vent Trim Cap		Appelez-nous	-
8	WB2K5257		Fan Support		Appelez-nous	-
16	WB27K5299		Clock/oven Control		Appelez-nous	-
32	WB26K5071		Fan		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5201		Side Extension-rt		Appelez-nous	-
221	WB63K5200		Side Extension-lt		Appelez-nous	-
221	WB63K5209		Body Side Extnsion-lt-up		Appelez-nous	-
221	WB63K5210		Body Side Extnsion-rt-up		Appelez-nous	-
262	WB7K5456		Vertical Side Trim-rt-ad		Appelez-nous	-
262	WB7K5457		Vertical Side Trim-lt-ad		Appelez-nous	-
262	WB7K5480		Trim Vent (ad)		Appelez-nous	-
263	WB7K5458		I-brow Trim-almond		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5094		Top Cover		Appelez-nous	-
676	WB1K5208		Trim Screw-almond		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
761	WB1K5211		Trim Screw-almond		Appelez-nous	-
800	WB1K5138		Screw		Appelez-nous	-
832	WB1X1158		Screw Nickel		Appelez-nous	-
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
854	WB1X1328		Screw-black		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.57
938	WB1K5209		Clip		Appelez-nous	-
999	WB18K5617		Lock Motor Wire Harn-up		Appelez-nous	-
999	31-10200		Installation Instruction		Appelez-nous	-
999	31-13323		Mimi Manual W/wire Diag.		Appelez-nous	-
999	49-8704		Use Care Manual		Appelez-nous	-
999	WB18K5611		Main Wire Harness		Appelez-nous	-
999	WB18K5649		Main Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
