SELECT A DIAGRAM
1 - Control

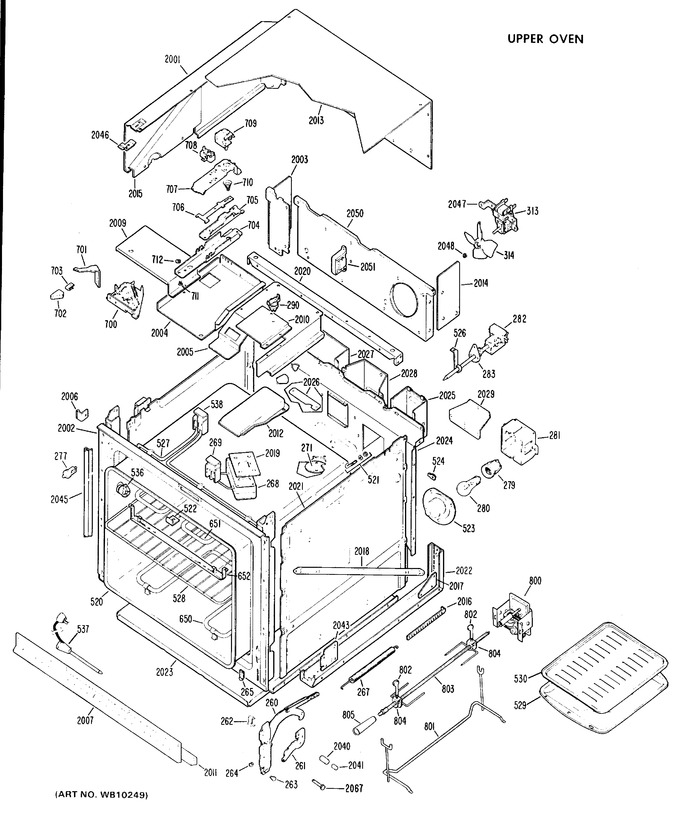

2 - Upper Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 260 | WB10X158 | Hinge Lever Rh & Lh |
|
- | |||||
| 261 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 267 | WB9X156 | Spring Door |
|
- | |||||
| 268 | WB29X53 | Smoke Eliminator Asm |
|
- | |||||
| 269 | WB2X3388 | Insulator Terminal |
|
- | |||||
| 271 | WB2X818 | Cover Vent |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 290 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 313 | WB26X5052 | Motor, Fan |
|
- | |||||
| 314 | WB2X2001 | Blade Fan, Upper |
|
- | |||||
| 520 | WB2X1125 | Plug Button Cap Tube |
|
- | |||||
| 520 | WB53X252 | Oven Liner |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tubeoven |
|
- | |||||
| 520 | WB2X2116 | Insulation |
|
- | |||||
| 520 | WB2X1925 | Cover Roto Opening |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 527 | WB44X207 | Mullion Unit |
|
- | |||||
| 528 | WB48X82 | Rack Oven |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 536 | WB20X55 | Receptacle Asm |
|
- | |||||
| 537 | WB20X54 | Probe |
|
- | |||||
| 538 | WB2X3452 | Terminal Insulator |
|
- | |||||
| 650 | UB323 | Bake Unit 208/240v (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 701 | WB15X150 | Handle Latch |
|
- | |||||
| 702 | WB3X434 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3157 | Channel Latch |
|
- | |||||
| 705 | WB2X3158 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X7301 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 800 | WB26X5053 | Motor Rotisserie |
|
- | |||||
| 801 | WB48X62 | Support Spit |
|
- | |||||
| 802 | WB1X272 | Screw Thumb |
|
- | |||||
| 803 | WB2X1166 | Spit Blade |
|
- | |||||
| 804 | WB2X1167 | Skewer Asm |
|
- | |||||
| 805 | WB15X80 | Handle Spit |
|
- | |||||
| 2001 | WB55X304 | Extension Side Rh |
|
- | |||||
| 2001 | WB55X305 | Extension Side Lh |
|
- | |||||
| 2002 | WB56X1327 | Frame |
|
- | |||||
| 2003 | WB2X2858 | Extension Air Shield |
|
- | |||||
| 2004 | WB59X170 | Insulation Guard Lh |
|
- | |||||
| 2005 | WB59X134 | Insulation Guard Rh |
|
- | |||||
| 2006 | WB2X2104 | Spacer |
|
- | |||||
| 2007 | WB7X636 | Trim Bottom |
|
- | |||||
| 2009 | WB59X165 | Guard Wire |
|
- | |||||
| 2010 | WB2X3173 | Cover Vent |
|
- | |||||
| 2011 | WB2X2082 | Bracket Trim |
|
- | |||||
| 2011 | WB2X3425 | Support Trim |
|
- | |||||
| 2012 | WB38X75 | Vent Asm |
|
- | |||||
| 2013 | WB49X330 | Case Top |
|
- | |||||
| 2014 | WB2X2847 | Shield Wire |
|
- | |||||
| 2015 | WB2X2402 | Guard Wire |
|
- | |||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2017 | WB2X2861 | Gusset |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2019 | WB2X3292 | Gasket |
|
- | |||||
| 2020 | WB2X2083 | Brace Latch |
|
- | |||||
| 2021 | WB59X164 | Side Inner |
|
- | |||||
| 2022 | WB59X163 | Channel Bottom |
|
- | |||||
| 2023 | WB55X302 | Guard Bottom |
|
- | |||||
| 2025 | WB2X2845 | Cover Light |
|
- | |||||
| 2026 | WB2X2842 | Plate Adapter |
|
- | |||||
| 2027 | WB2X3156 | Guard Asm |
|
- | |||||
| 2028 | WB49X268 | Guard Terminal |
|
- | |||||
| 2029 | WB49X223 | Cap Terminal Guard |
|
- | |||||
| 2040 | WB2X3305 | Sleeve Roller |
|
- | |||||
| 2041 | WB2X3304 | Roller |
|
- | |||||
| 2043 | WB2X3423 | Gusset |
|
- | |||||
| 2045 | WB2X3422 | Gasket |
|
- | |||||
| 2046 | WB2X3291 | Bracket Trim |
|
- | |||||
| 2047 | WB2X2846 | Bracket Fan |
|
- | |||||
| 2050 | WB55X303 | Shield Air |
|
- | |||||
| 2051 | WB20X57 | Transformer |
|
- | |||||
| 2067 | WB1X524 | Screw |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- |
