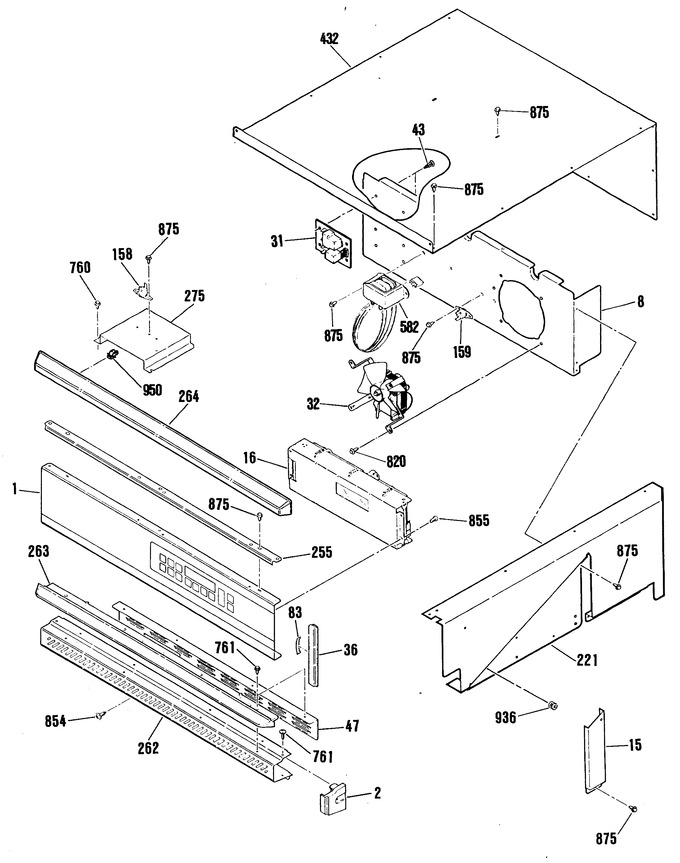

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5242 | Control Panel Asm |
|
- | |||||
| 2 | WB36K5101 | Vent Trim End Cap-lt-blk |
|
- | |||||
| 2 | WB36K5102 | Vent Trim End Cap-rt-blk |
|
- | |||||
| 8 | WB2K5257 | Fan Support |
|
- | |||||
| 15 | WB34K5090 | Meat Probe Wire Cover |
|
- | |||||
| 16 | WB27K5046 | Clock/oven Control |
|
- | |||||
| 31 | WB27K5077 | Relay Board |
|
- | |||||
| 32 | WB26K5045 | Fan |
|
- | |||||
| 36 | WB7K5184 | Trim Cntl Pnl End-lt-blk |
|
- | |||||
| 36 | WB7K5185 | Trim Cntl Pnl End-rt-blk |
|
- | |||||
| 43 | WB2X9158 | Pc Board Spacer |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 83 | WB9K5008 | End Trim Spring |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WB24K5034 | Limit Switch-erc |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 255 | WB7K5045 | Overlay Trim-27"-blk |
|
- | |||||
| 262 | WB7K5197 | Vert Side Trim-lt-blk |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 262 | WB7K5198 | Vert Side Trim-rt-blk |
|
- | |||||
| 263 | WB7K5041 | Trim-i Brow Blk |
|
- | |||||
| 264 | WB7K5196 | Top Cont Pnl Trim-blk |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5081 | Top Cover |
|
- | |||||
| 582 | WB20K5008 | Transformer |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 806 | WB1X1164 | Screw |
|
- | |||||
| 815 | WB1X1176 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw |
|
- | |||||
| 855 | WB1X1295 | Screw |
|
- | |||||
| 875 | WB1K5057 | Screw |
|
- | |||||
| 908 | WB1K5143 | Washer |
|
- | |||||
| 911 | WB1K5124 | Rivet |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 950 | WB1K5135 | Cable Clip |
|
- | |||||
| 989 | WB1K5084 | Flat Speed Nut |
|
- | |||||
| 999 | WB18K5356 | Harness Wire Relay Board |
|
- | |||||
| 999 | 49-8303 | Cookbook |
|
- | |||||
| 999 | 49-8293 | Manual Use & Care |
|
- | |||||
| 999 | WB18K5221 | Main Wire Harness |
|
- | |||||
| 999 | 31-10080 | Installation Instruction |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | WB18K5440 | Main Wire Harness |
|
- |
